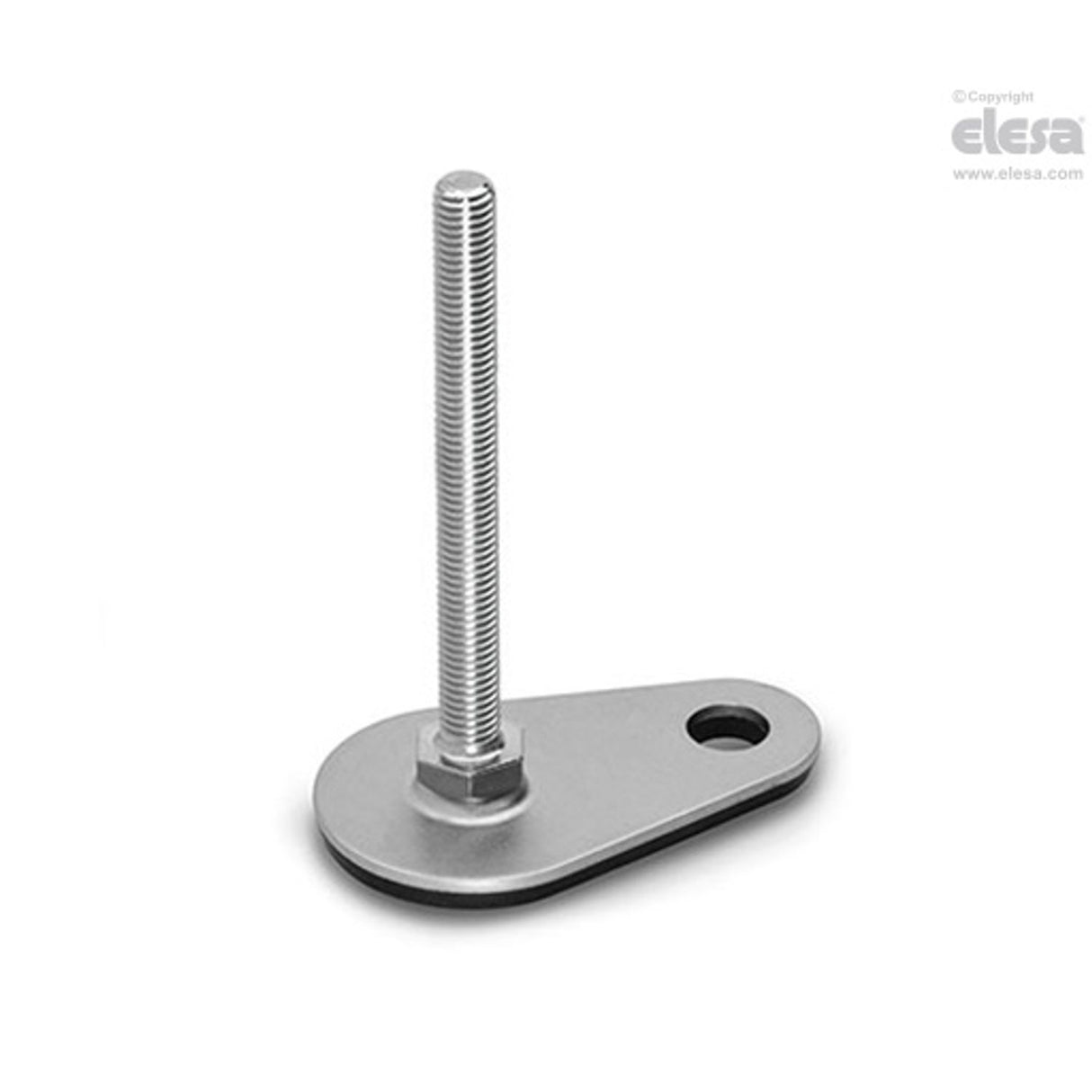

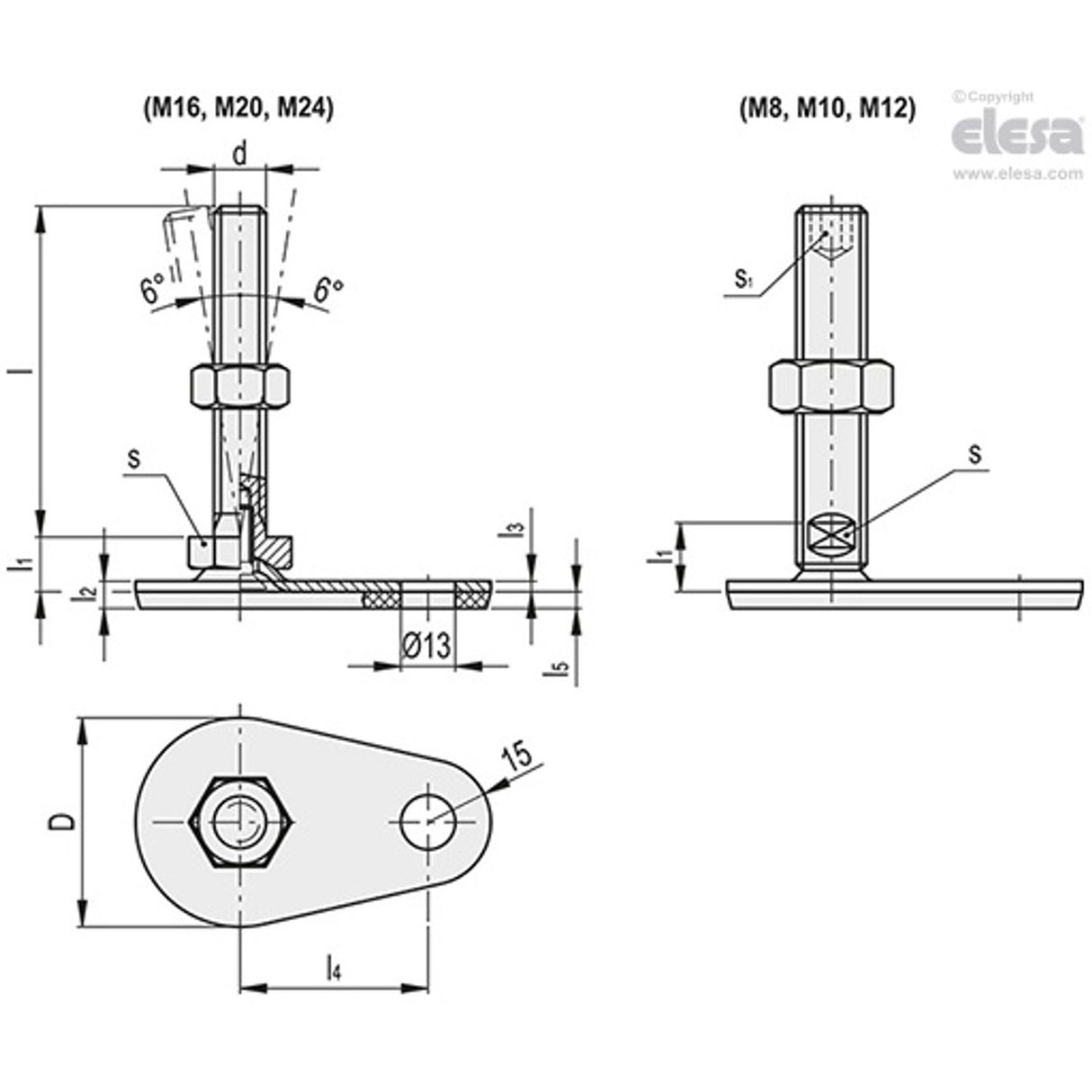

LMP.F-SST - LMP.F-A4 Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem, with rubber no-slip disk, AISI 303 stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| d | M8 |
| Diameter | 50mm |
| l4 | 45 |
| s | 17 |
| l | 63 |
| l5 | 4 |
| MFR Part No. | LMP.F-50-SST-M8x63-TV |
| l3 | 2.5 |
| l2 | 6.5 |
| D | 50 |
| Max. Static Load | 8000N |
| Weight | 120g |
| l1 | 11 |
