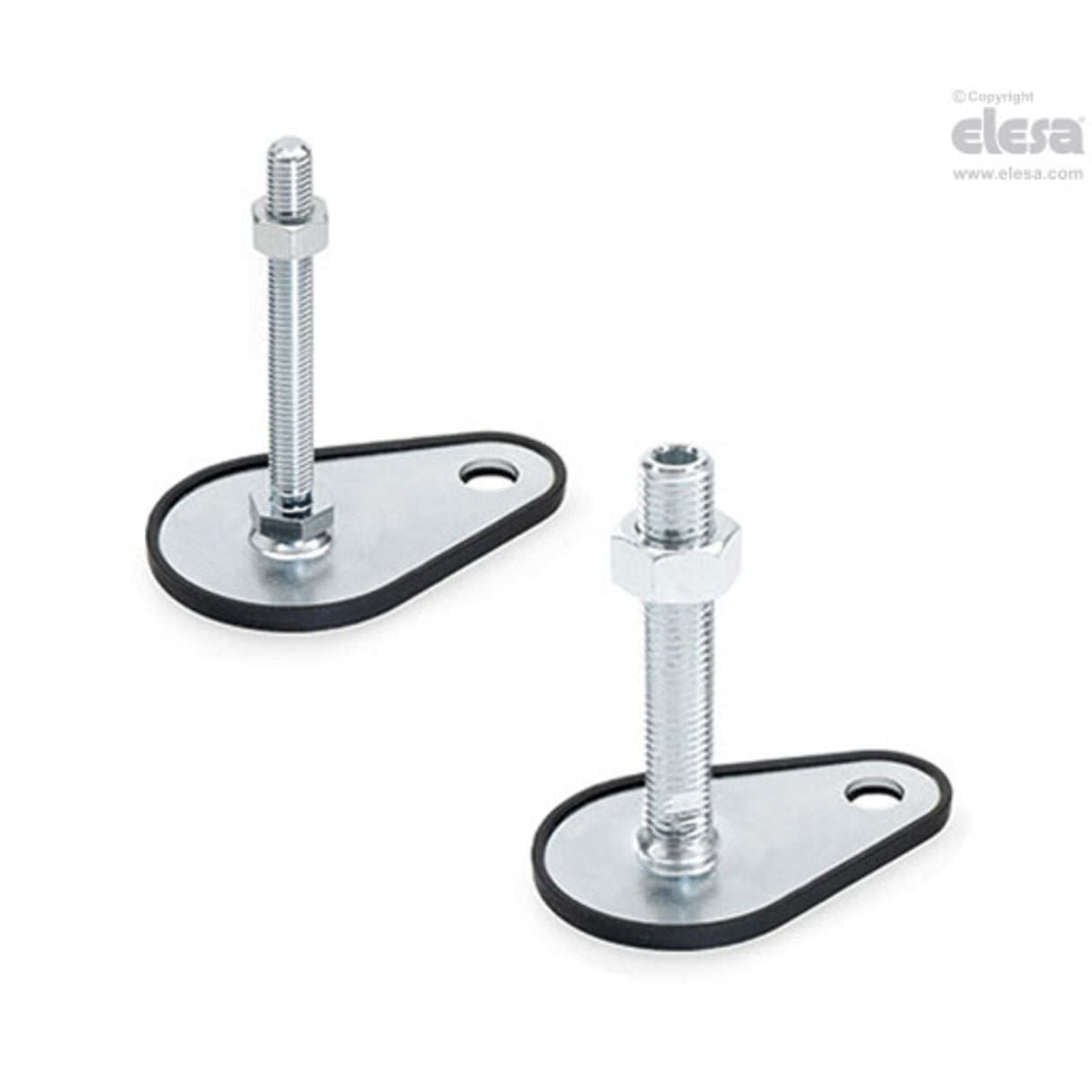

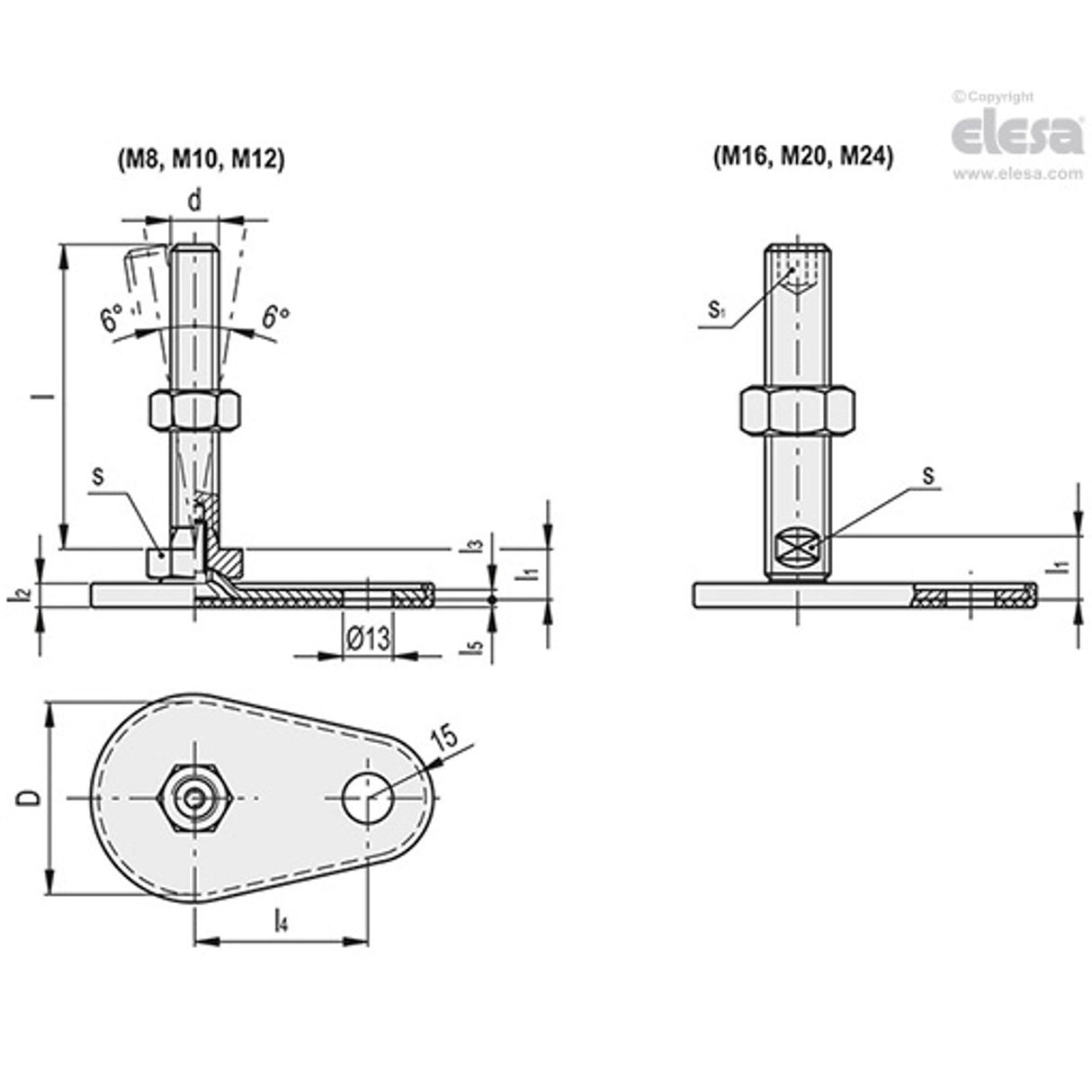

LMP.F Levelling feet for ground mounting, Steel base and stem, Threaded stem, with elastomer no-slip coating For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | LMP.F-50-M10x100-TR |
| Weight | 156g |
| d | M10 |
| l3 | 2.5 |
| l5 | 2 |
| l1 | 11 |
| l2 | 6 |
| s | 17 |
| Max. Static Load | 8000N |
| D | 50 |
| l4 | 45 |
| l | 100 |
| Diameter | 50mm |
