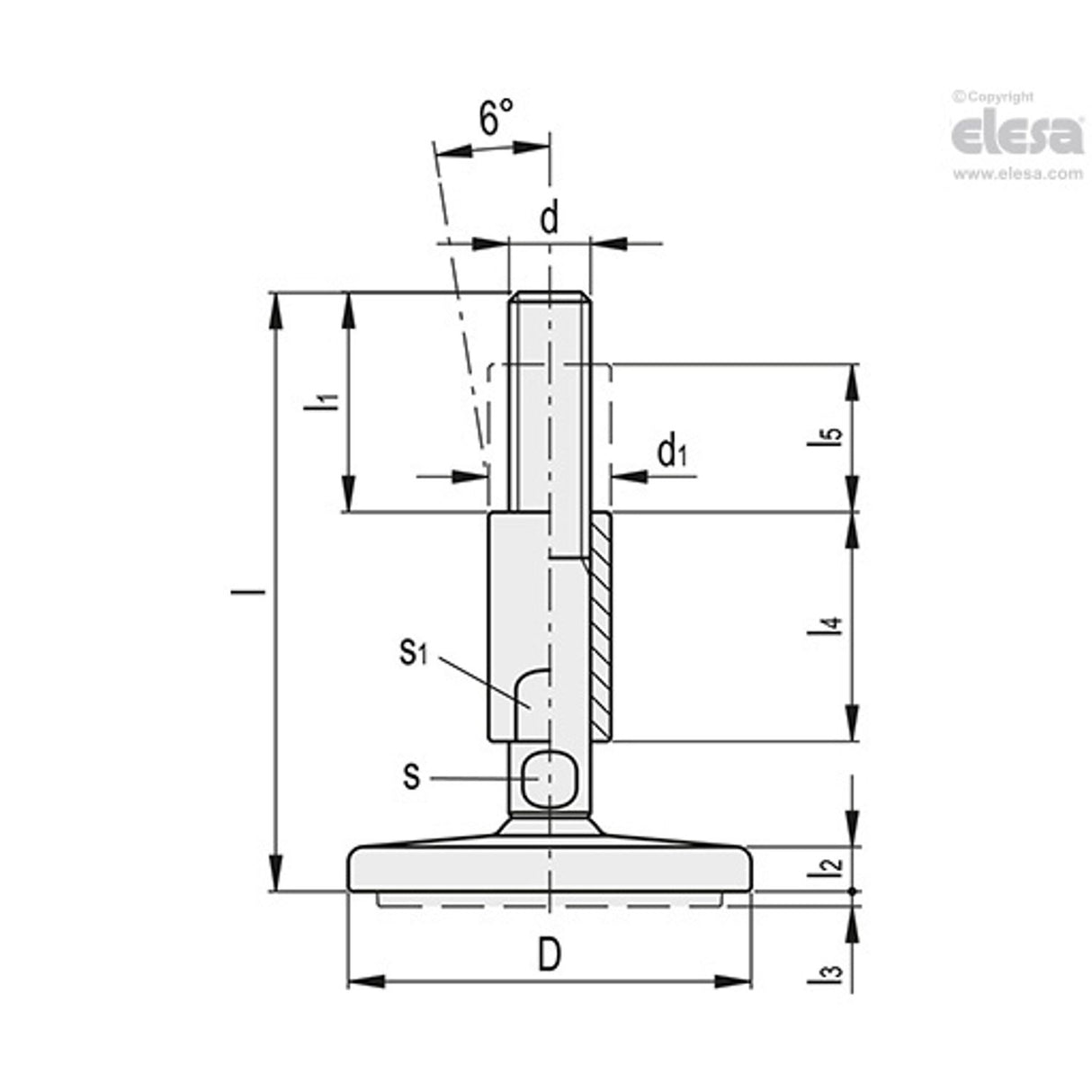

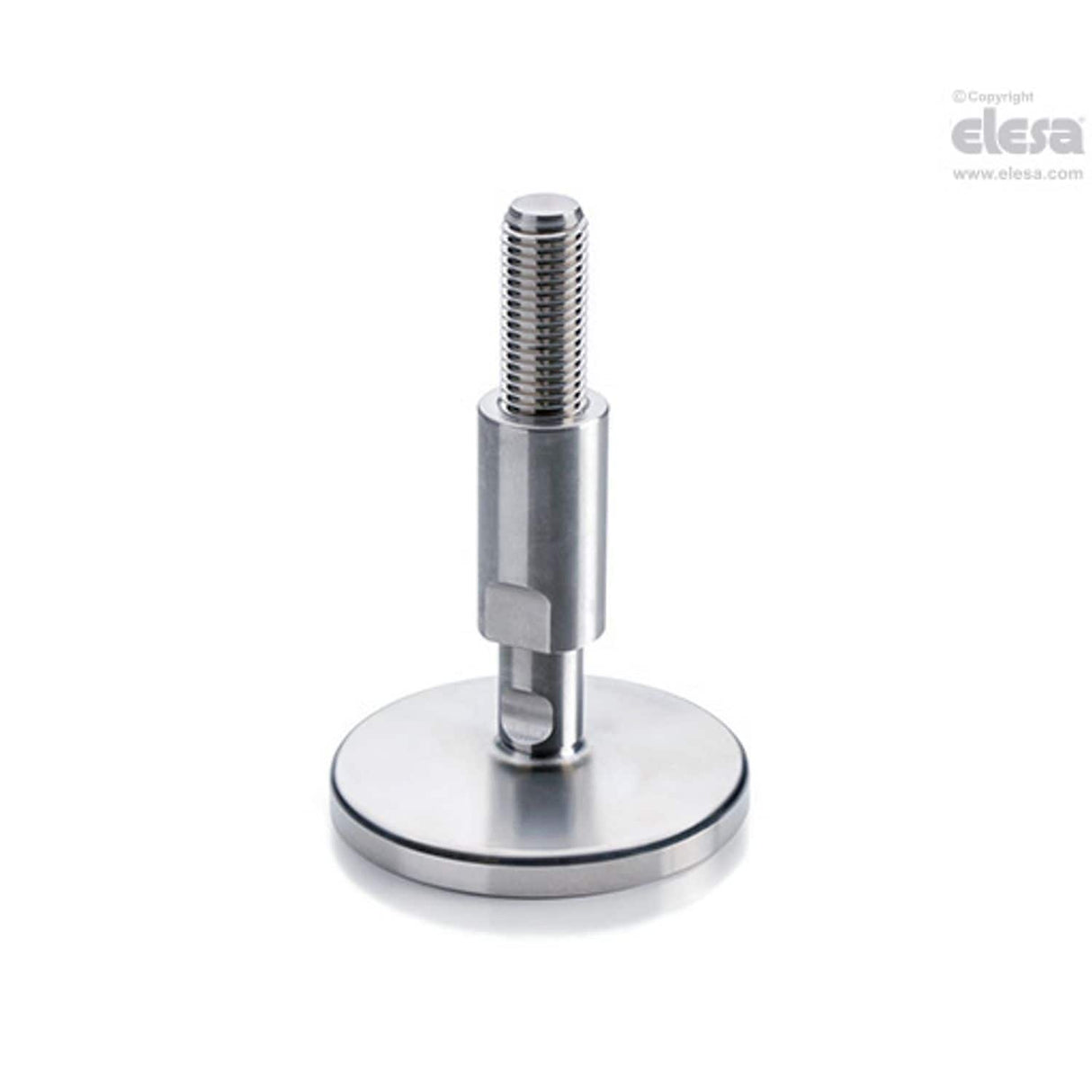

LMY. Levelling feet, Stainless steel base and stem, Threaded stem with centre bushing For product drawing and dimensions refer to pdf Item data sheet.
| s | 16 |
| D | 100 |
| s1 | 24 |
| l5 | 40 |
| l2 | 9 |
| MFR Part No. | LMY.100-SST-M20x244-HV |
| d1 | 30 |
| Static Load | 35000kN |
| l4 | 56 |
| l1 | 56 |
| l | 244 |
| d | M20 |
| Diameter | 100mm |
