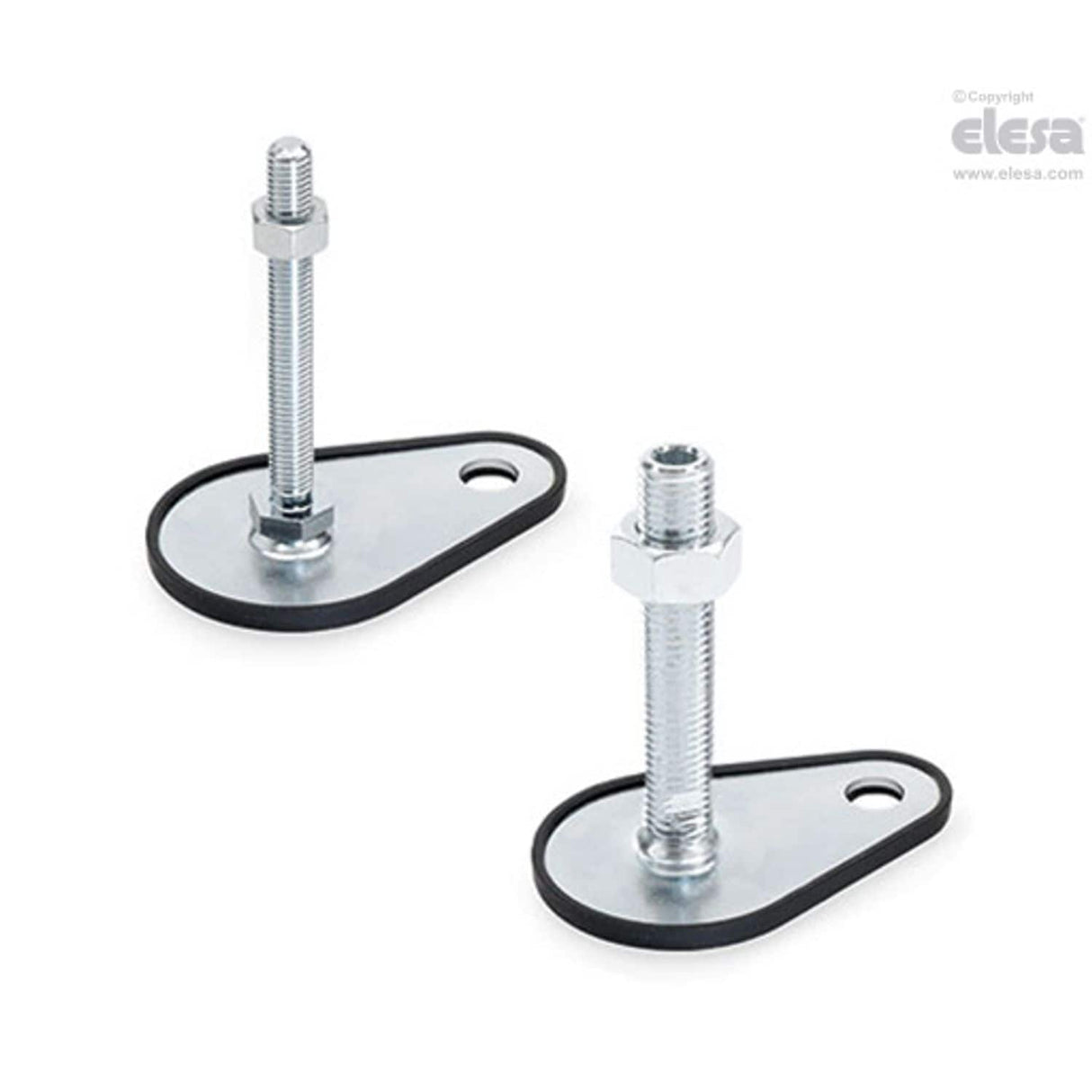

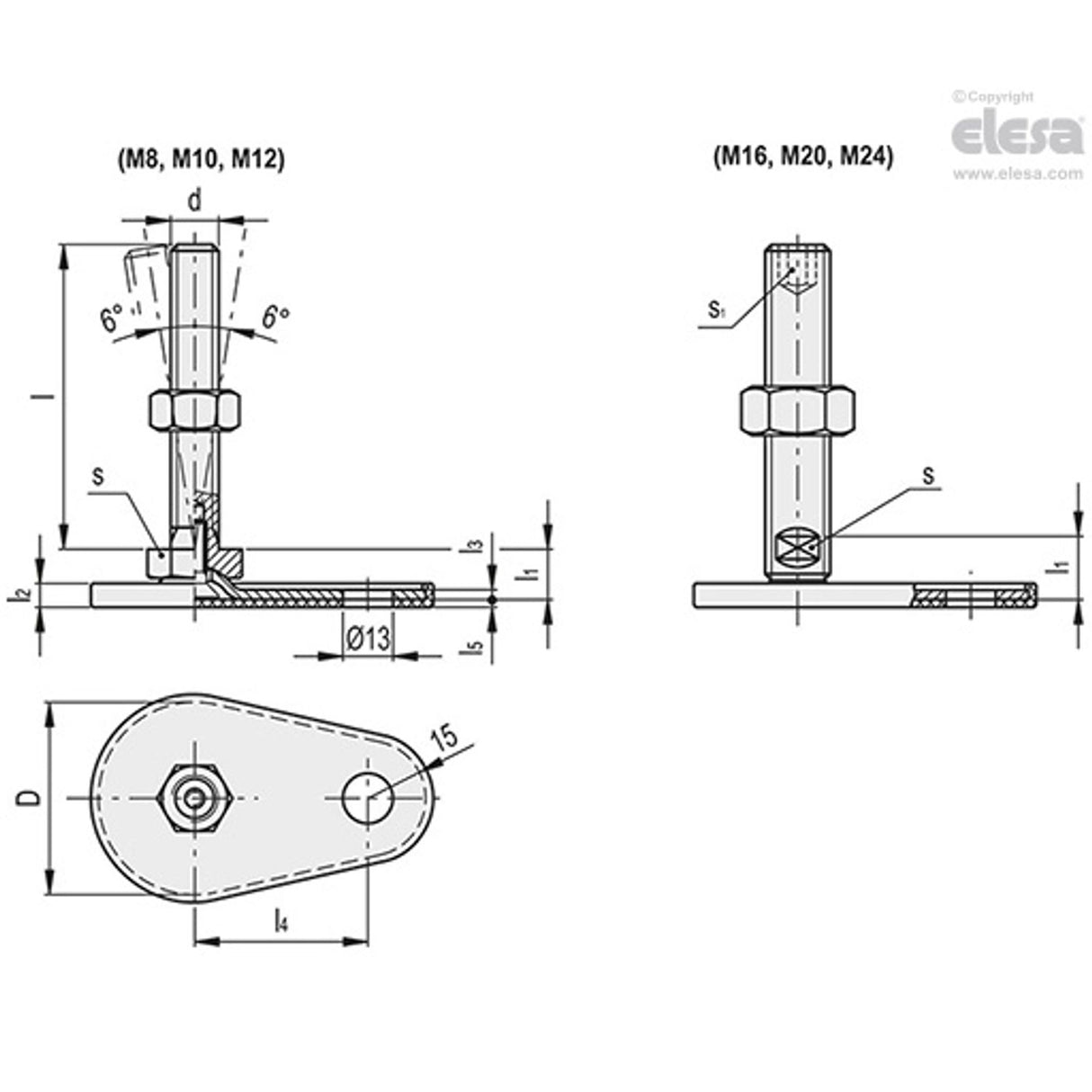

LMP.F Levelling feet for ground mounting, Steel base and stem, Threaded stem, with elastomer no-slip coating For product drawing and dimensions refer to pdf Item data sheet.
| l3 | 2.5 |
| l1 | 11 |
| l2 | 6 |
| s | 17 |
| Diameter | 60mm |
| Max. Static Load | 10000N |
| l5 | 2 |
| l4 | 50 |
| d | M10 |
| D | 60 |
| MFR Part No. | LMP.F-60-M10x50-TR |
| Weight | 140g |
| l | 50 |
