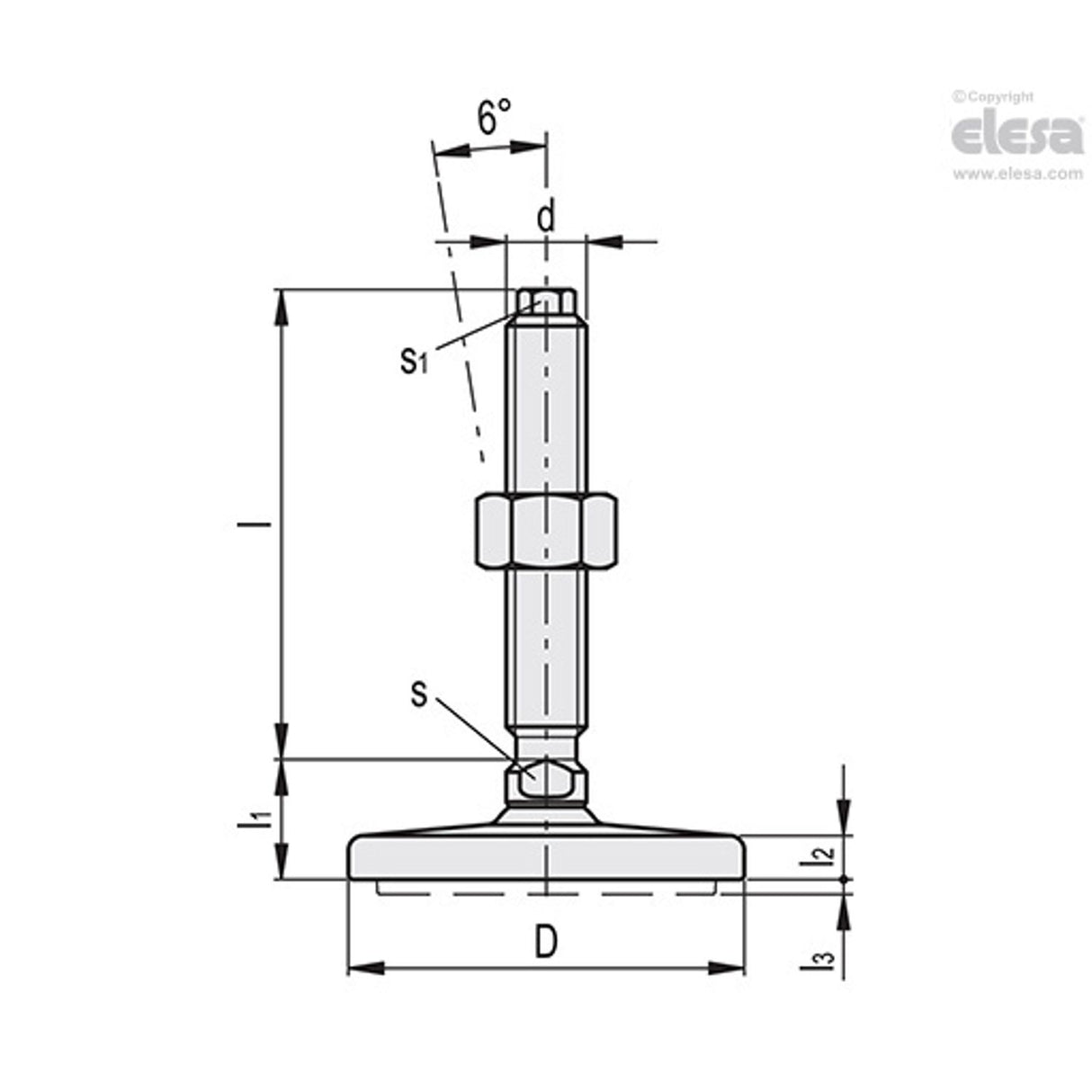

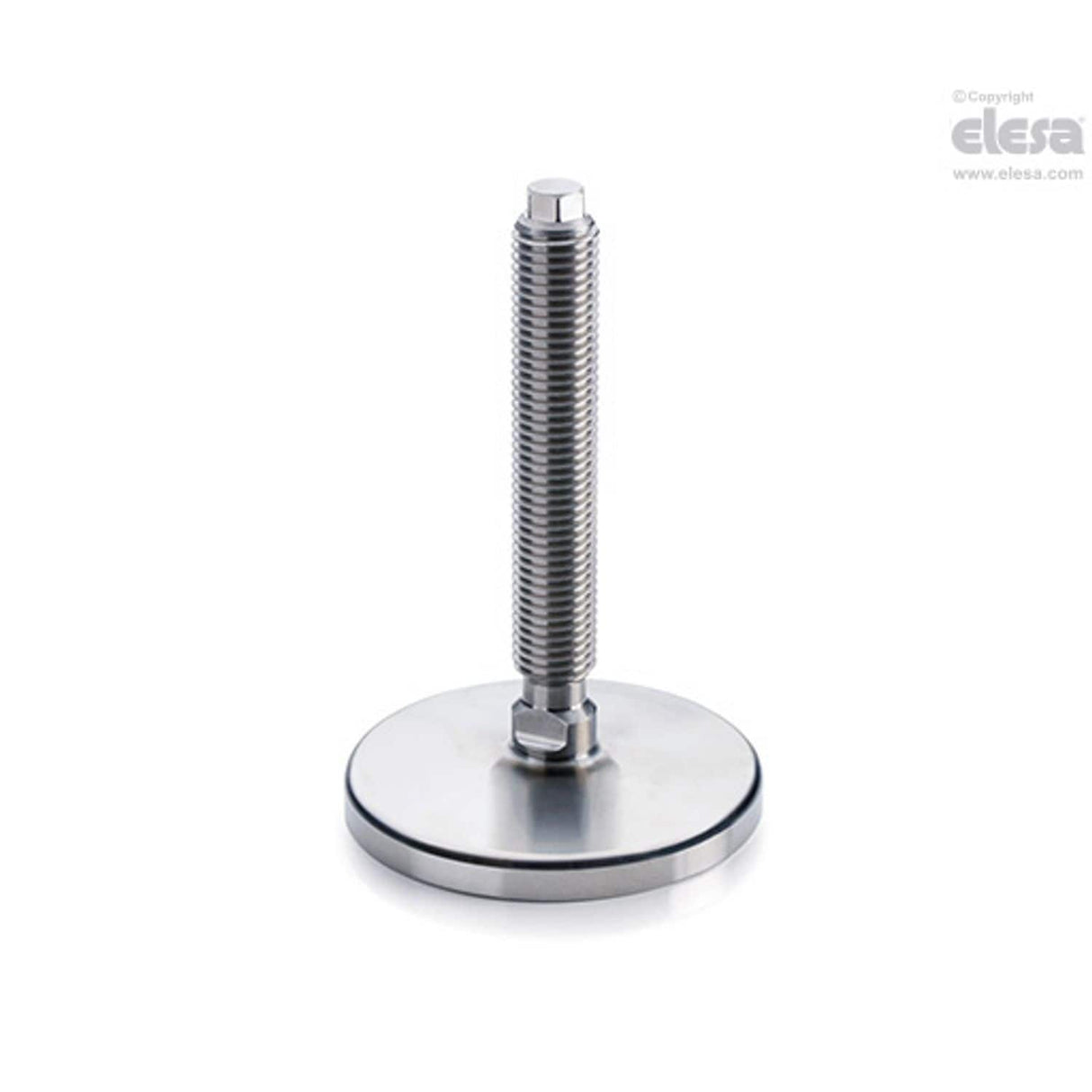

LMY. Levelling feet, Stainless steel base and stem, Threaded stem with hexagon end For product drawing and dimensions refer to pdf Item data sheet.
| D | 80 |
| l3 | 2 |
| s | 12 |
| Diameter | 80mm |
| d | M16 |
| s1 | 10 |
| MFR Part No. | LMY.80-AS-SST-M16x100-EH |
| Static Load | 21000kN |
| l | 100 |
| l1 | 21.5 |
| l2 | 8.5 |
