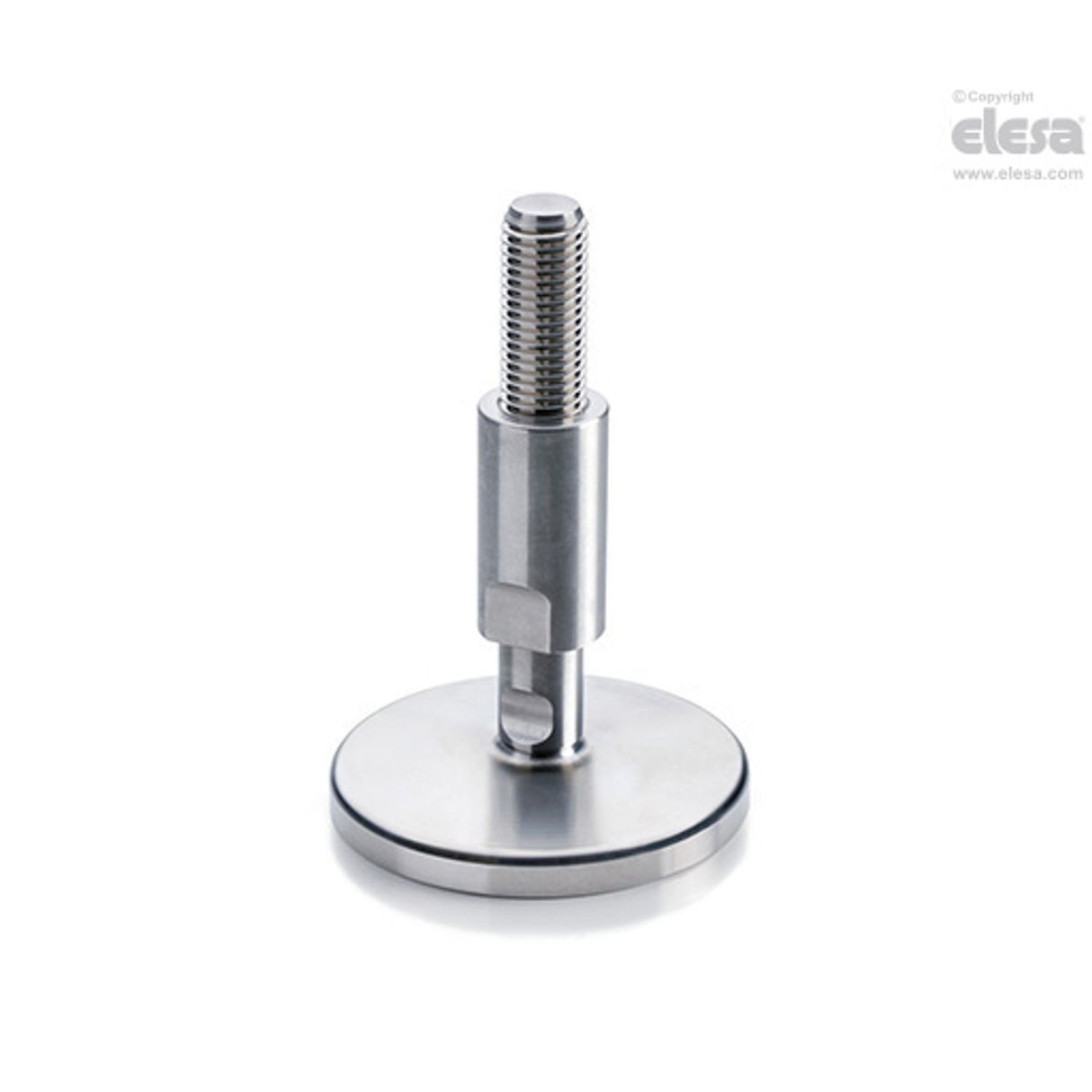

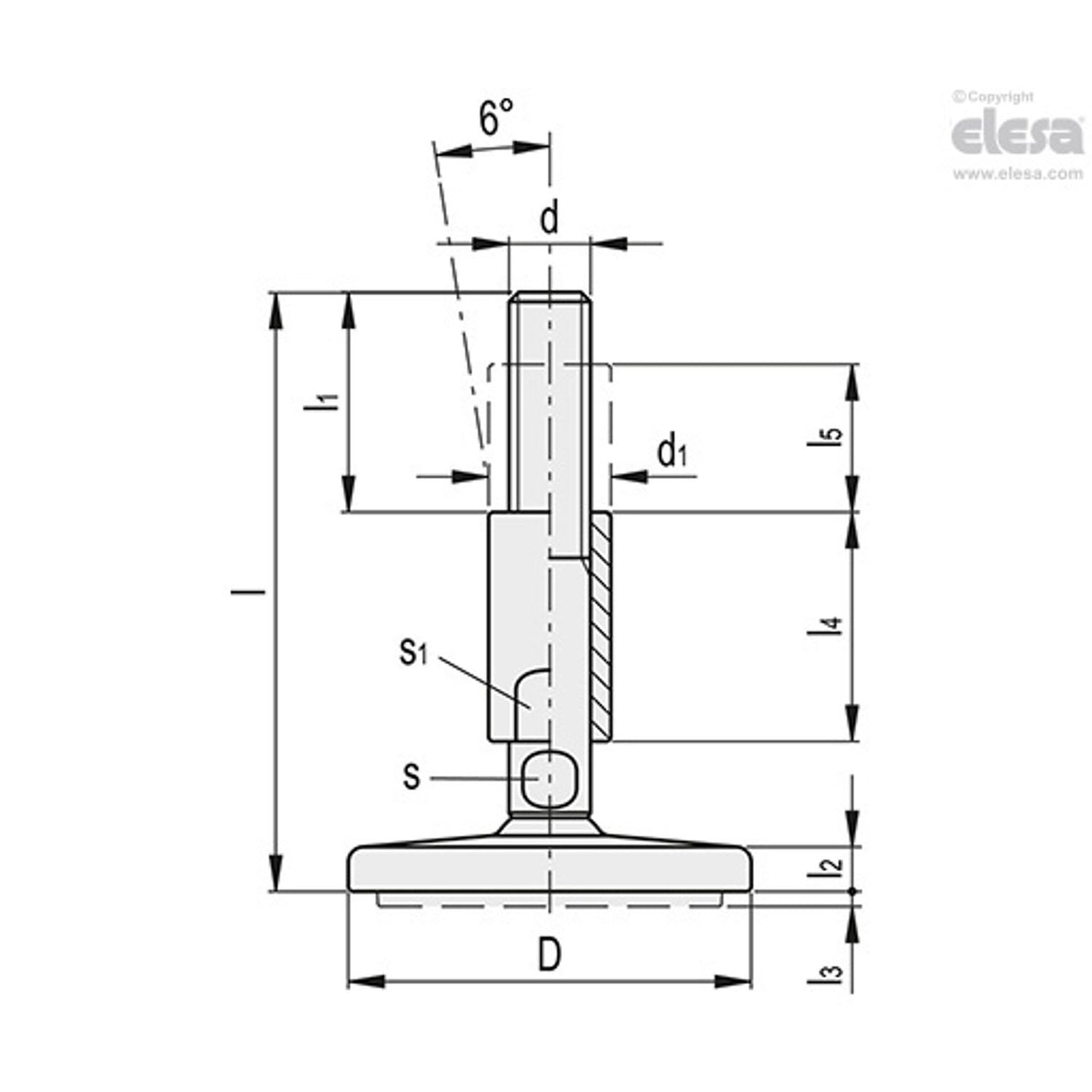

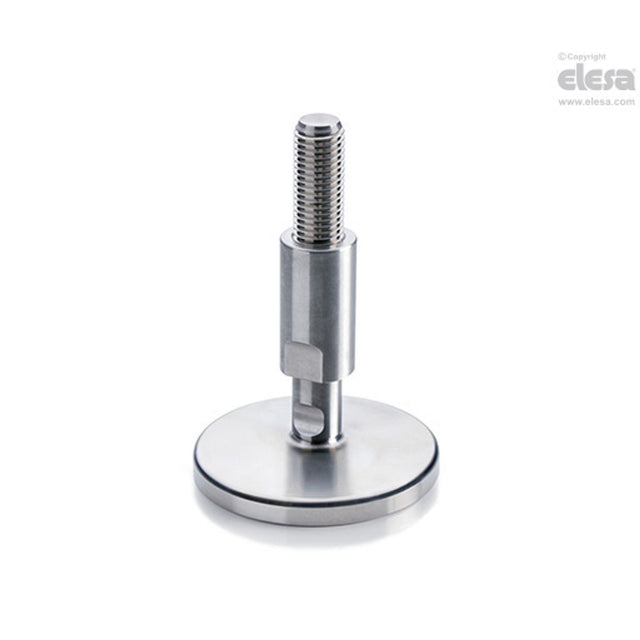

LMY. Levelling feet, Stainless steel base and stem, Threaded stem with centre bushing For product drawing and dimensions refer to pdf Item data sheet.
| d | M16 |
| s | 12 |
| l3 | 3 |
| s1 | 20 |
| Static Load | 25000kN |
| l2 | 9 |
| l | 119 |
| l1 | 45 |
| d1 | 24 |
| Diameter | 100mm |
| l5 | 32 |
| MFR Part No. | LMY.100-AS-SST-M16x119-HV |
| l4 | 45 |
| D | 100 |
