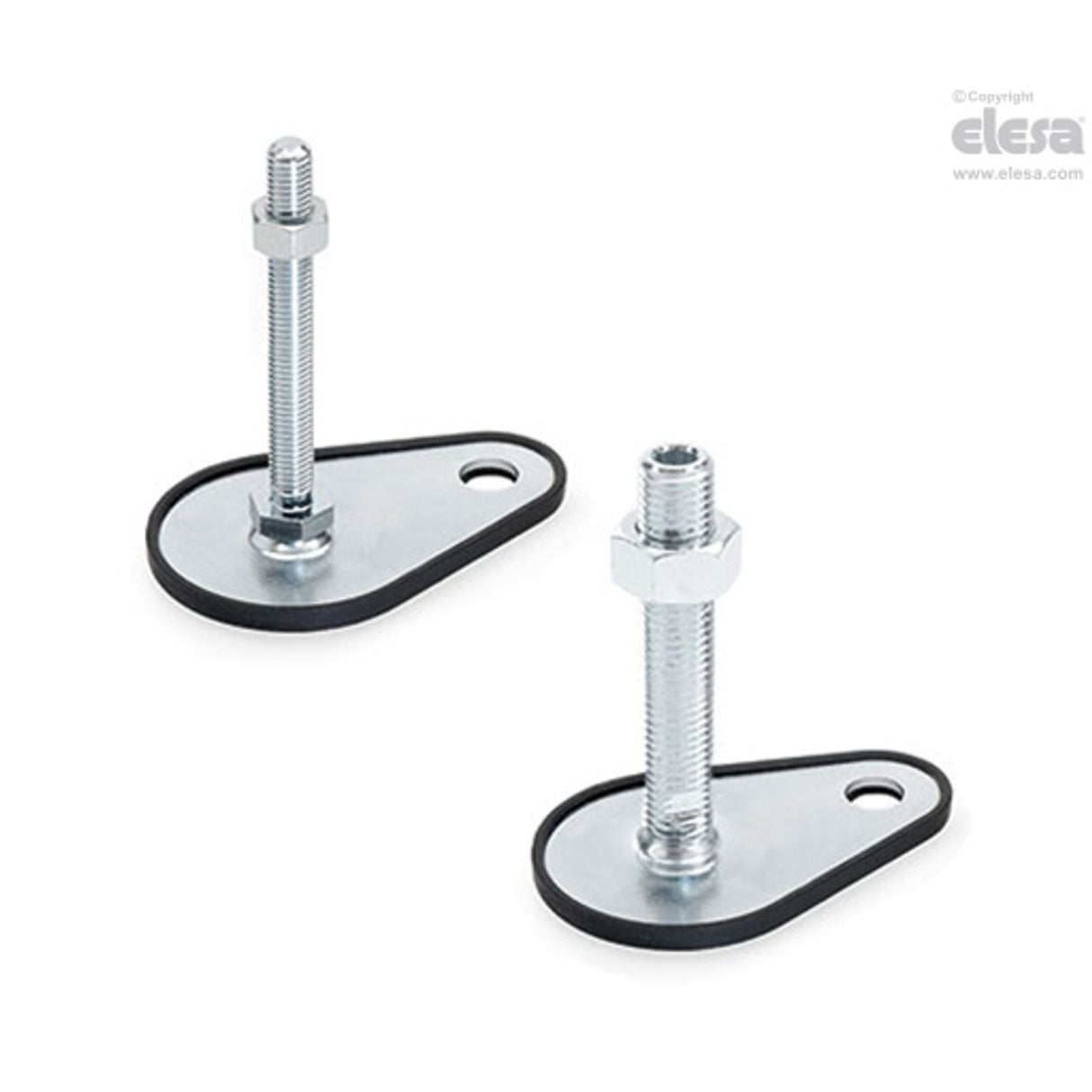

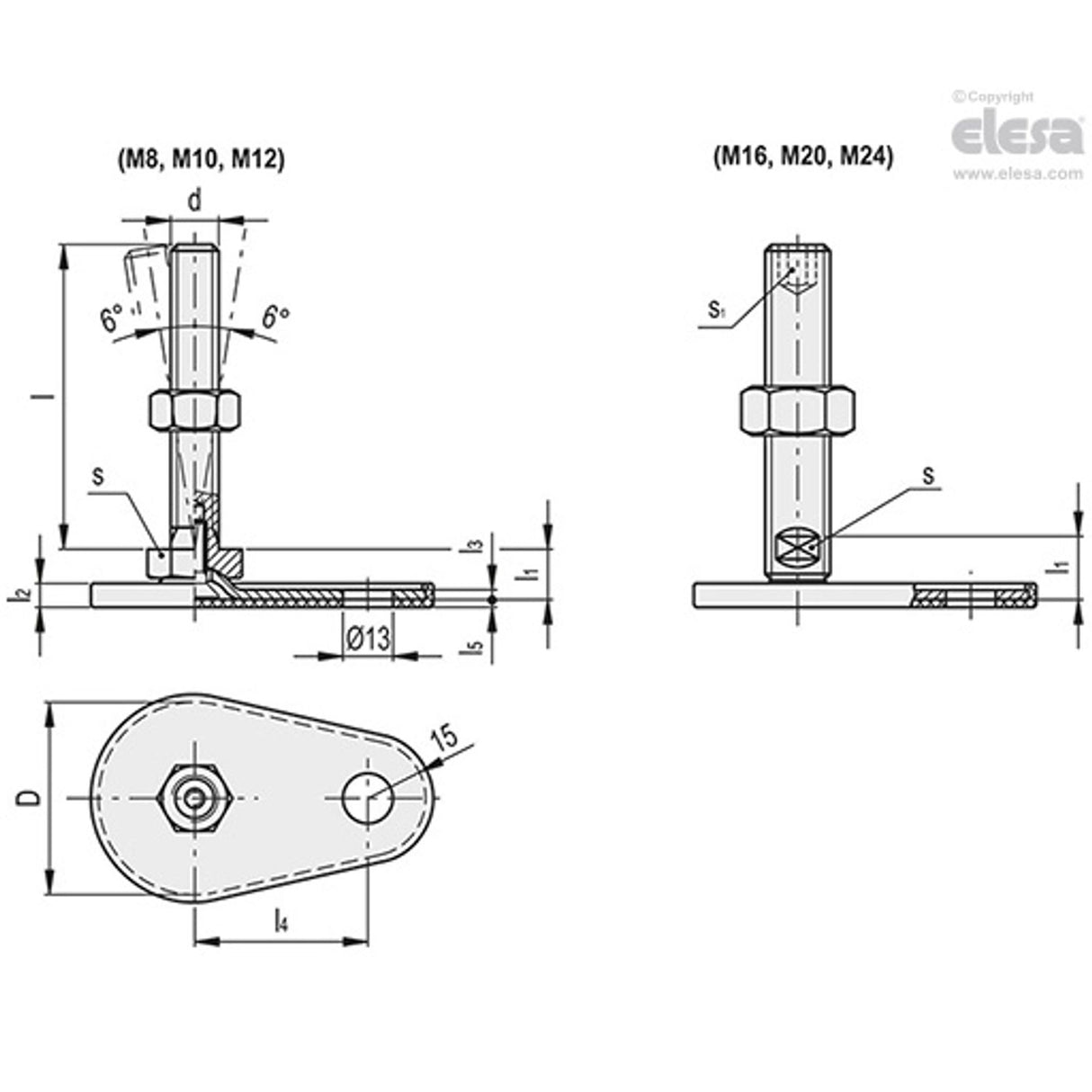

LMP.F Levelling feet for ground mounting, Steel base and stem, Threaded stem, with elastomer no-slip coating For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 7 |
| d | M16 |
| l1 | 18 |
| s1 | 8 |
| l | 75 |
| l5 | 2 |
| Diameter | 80mm |
| l4 | 70 |
| l3 | 3 |
| s | 12 |
| Max. Static Load | 12000N |
| D | 80 |
| Weight | 311g |
| MFR Part No. | LMP.F-80-M16x75-TR |
