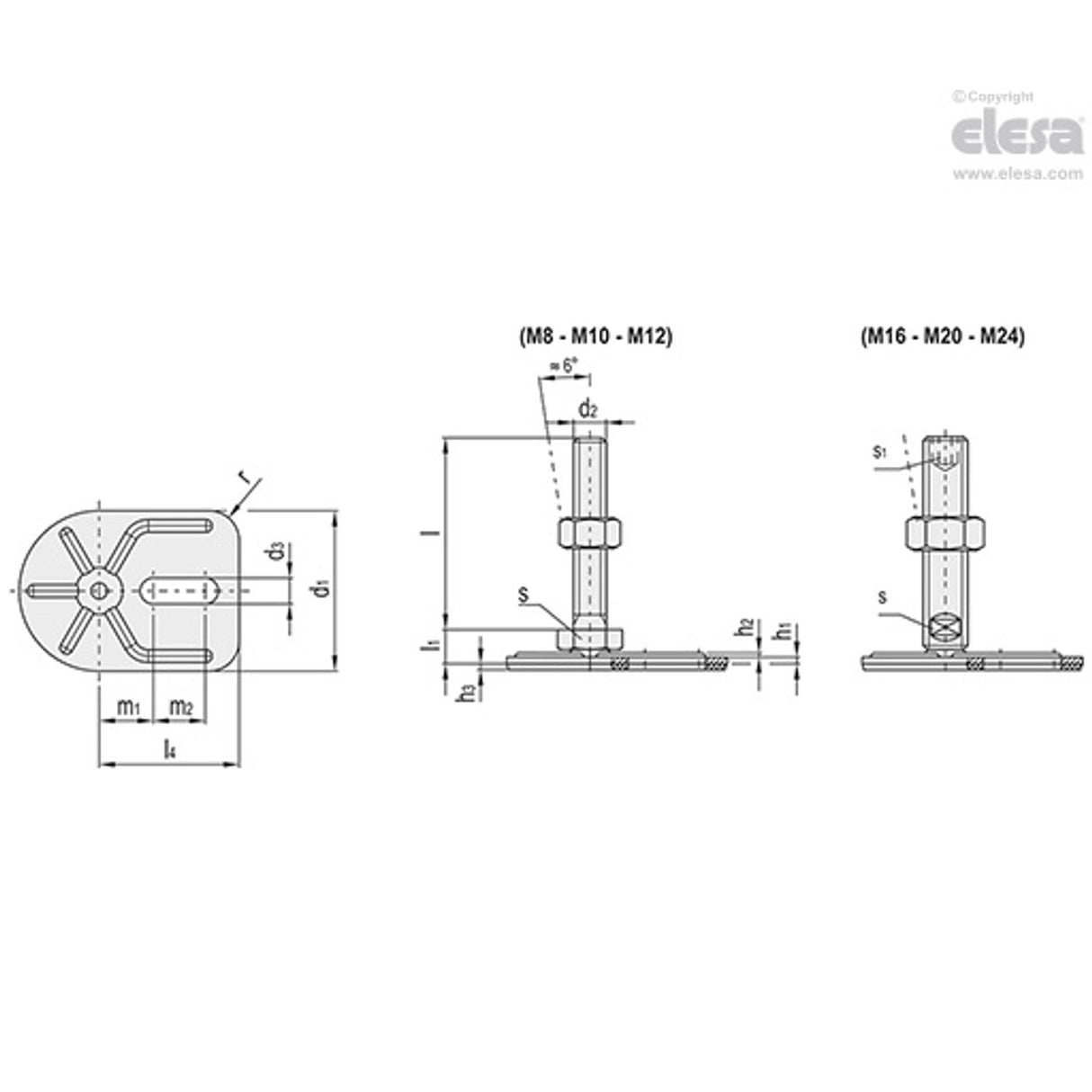

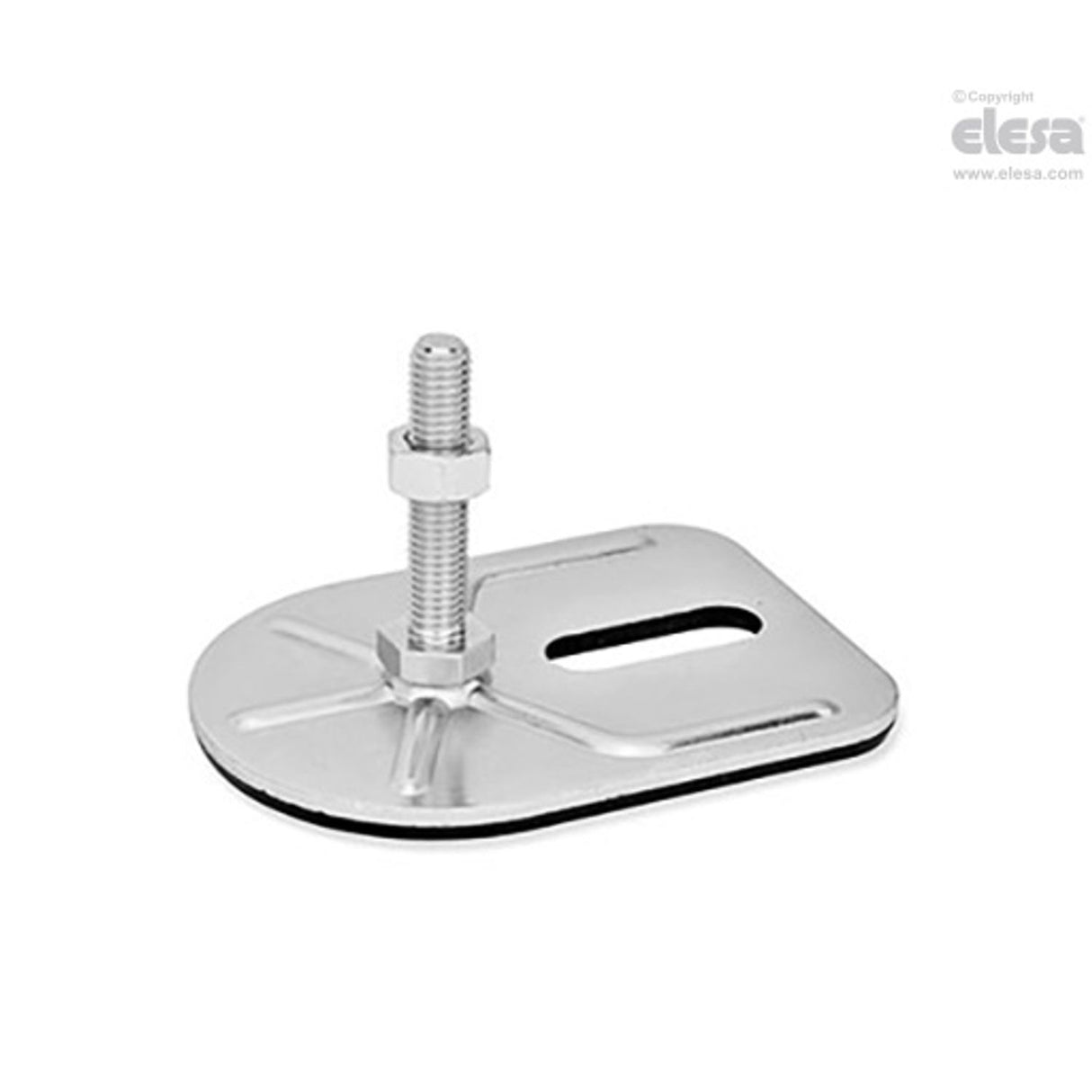

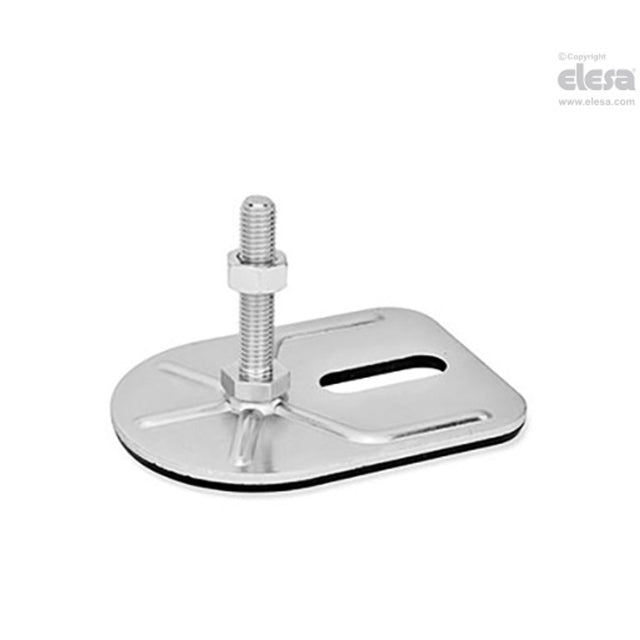

LMD.F-SST Levelling feet for ground mounting, Base with slotted holes, stainless steel joint or stem, Threaded stem, with non-slip, with a slotted hole For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 306g |
| h3 | 3 |
| h2 | 1.3 |
| r | 15 |
| m2 | 26 |
| MFR Part No. | LMD.F-SL-80-SST-M12x100-TV |
| d1 | 80 |
| h1 | 3 |
| l4 | 70 |
| l | 100 |
| Max. Static Load | 20000N |
| s | 17 |
| m1 | 27 |
| d3 | 13 |
| d2 | M12 |
| l1 | 12 |
