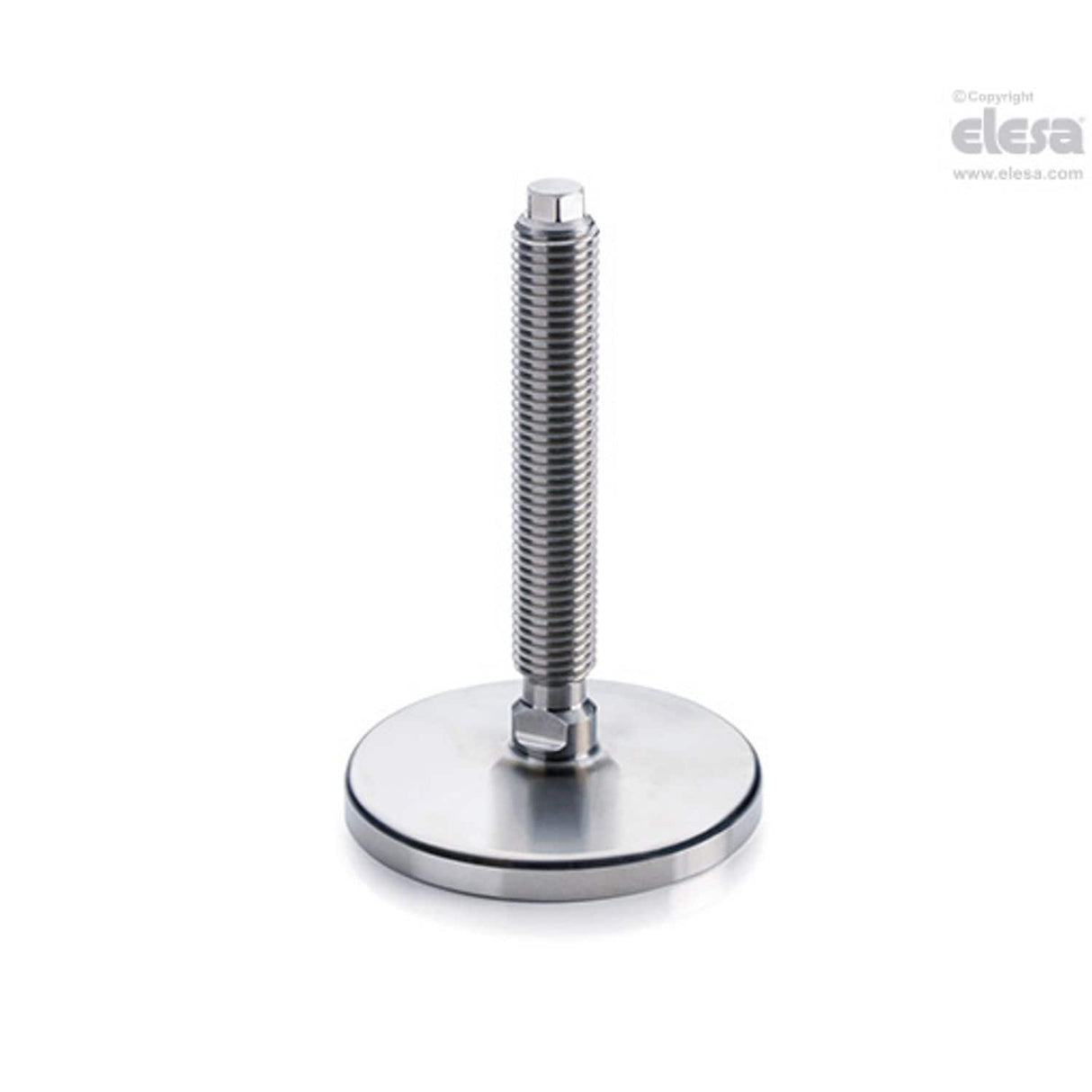

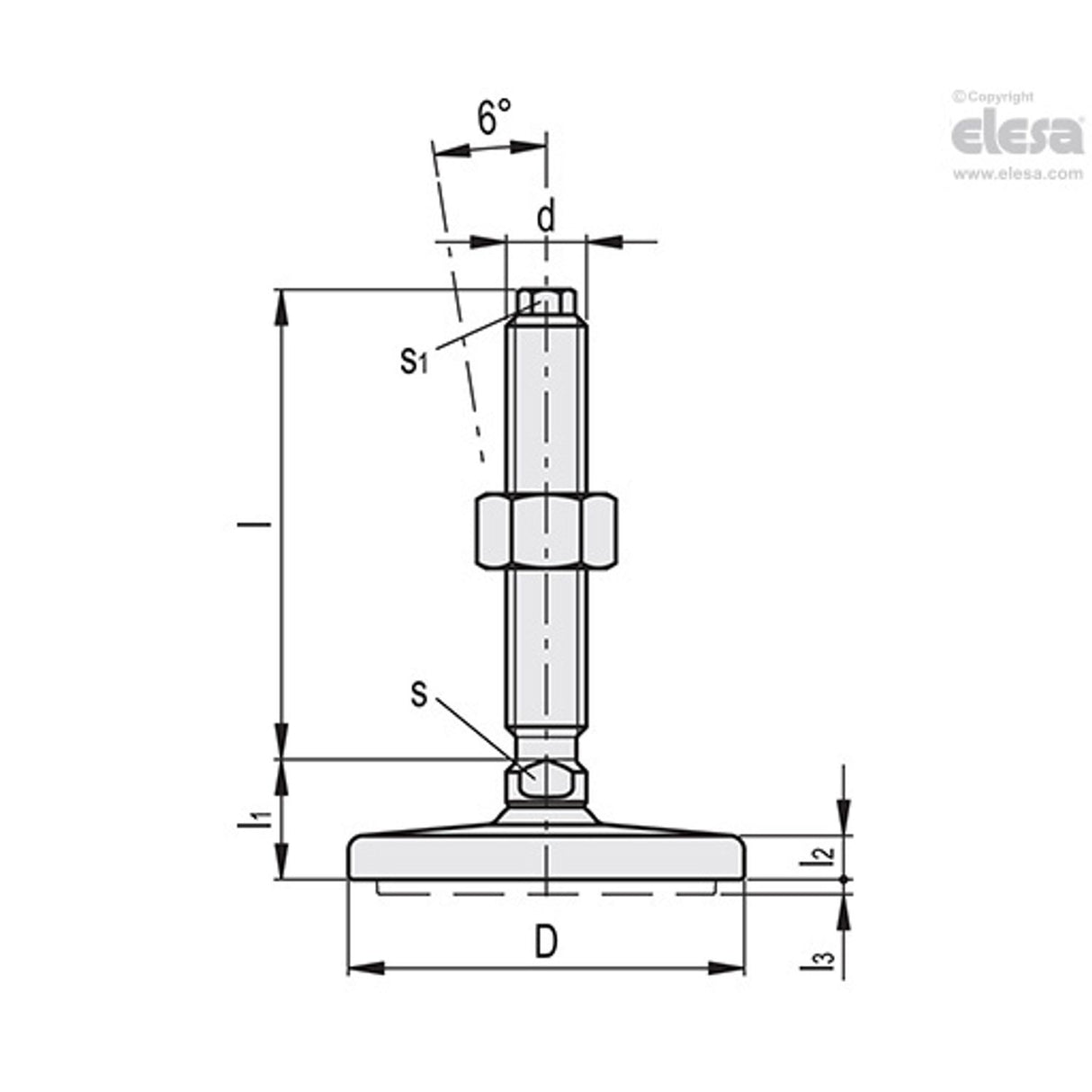

LMY. Levelling feet, Stainless steel base and stem, Threaded stem with hexagon end For product drawing and dimensions refer to pdf Item data sheet.
| l | 100 |
| Static Load | 52000kN |
| MFR Part No. | LMY.100-AS-SST-M24x100-EH |
| l1 | 27 |
| l2 | 9 |
| s1 | 17 |
| d | M24 |
| Diameter | 100mm |
| D | 100 |
| s | 20 |
| l3 | 3 |
