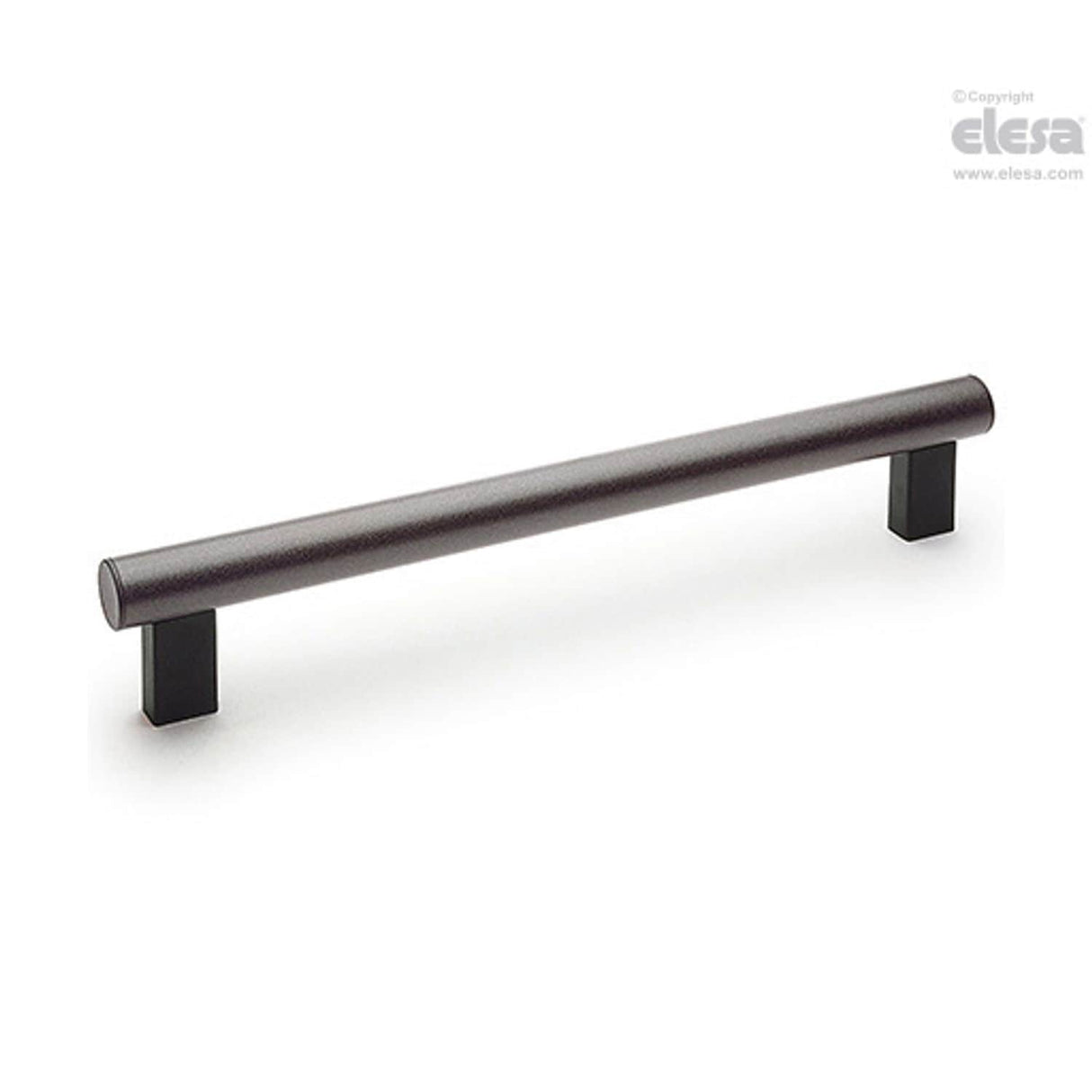

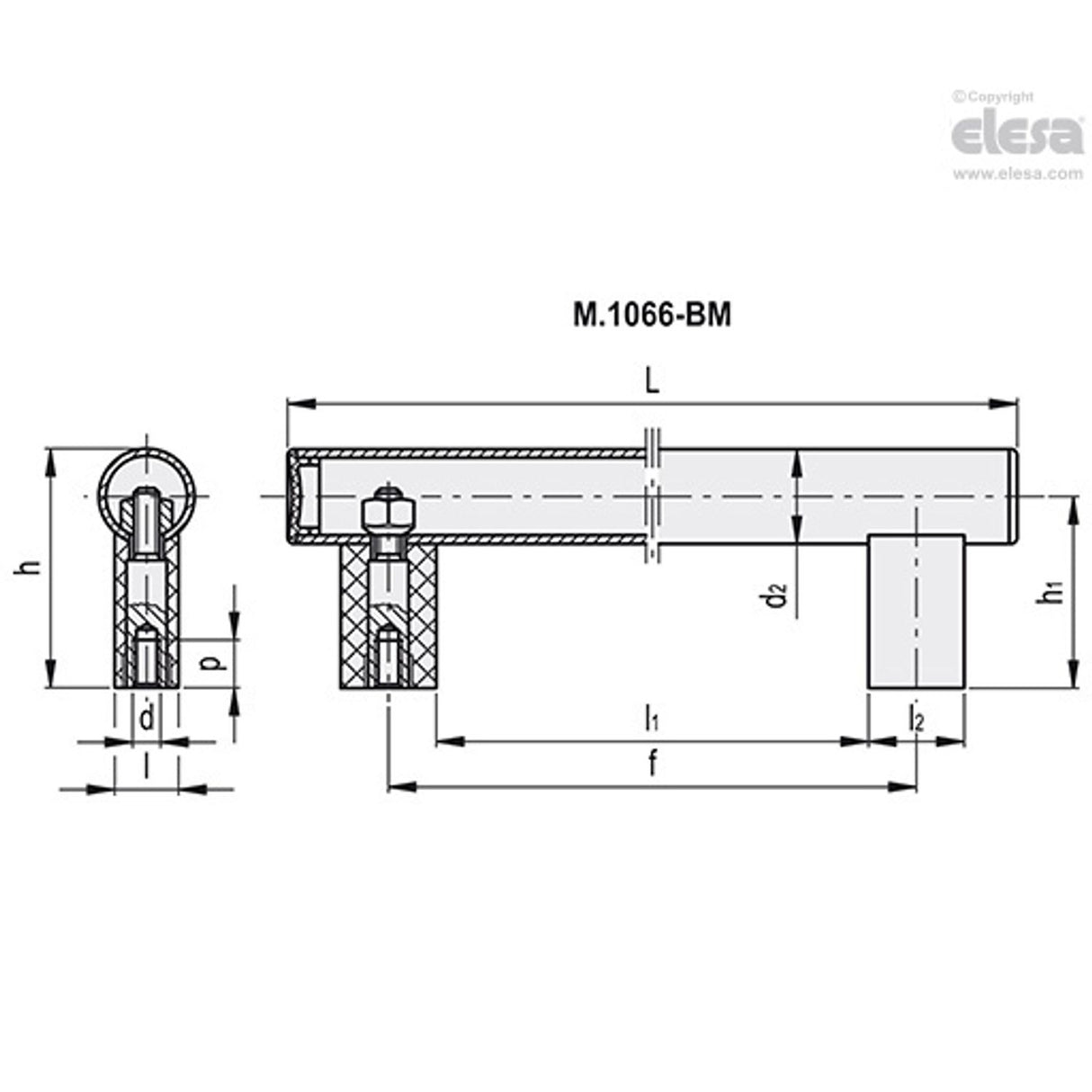

M.1066 Tubular handles, Technopolymer, aluminium, stainless steel, Aluminium tube with epoxy resin coating, back mounting For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | M.1066 BM/30-600-EP |
| l2 | 30 |
| h1 | 60 |
| l | 18 |
| p | 15 |
| L | 665 |
| l1 | 570 |
| d2 | 30 |
| F2# | 3200N |
| d | M8 |
| h | 75 |
| Weight | 394g |
| F2 | 880N |
