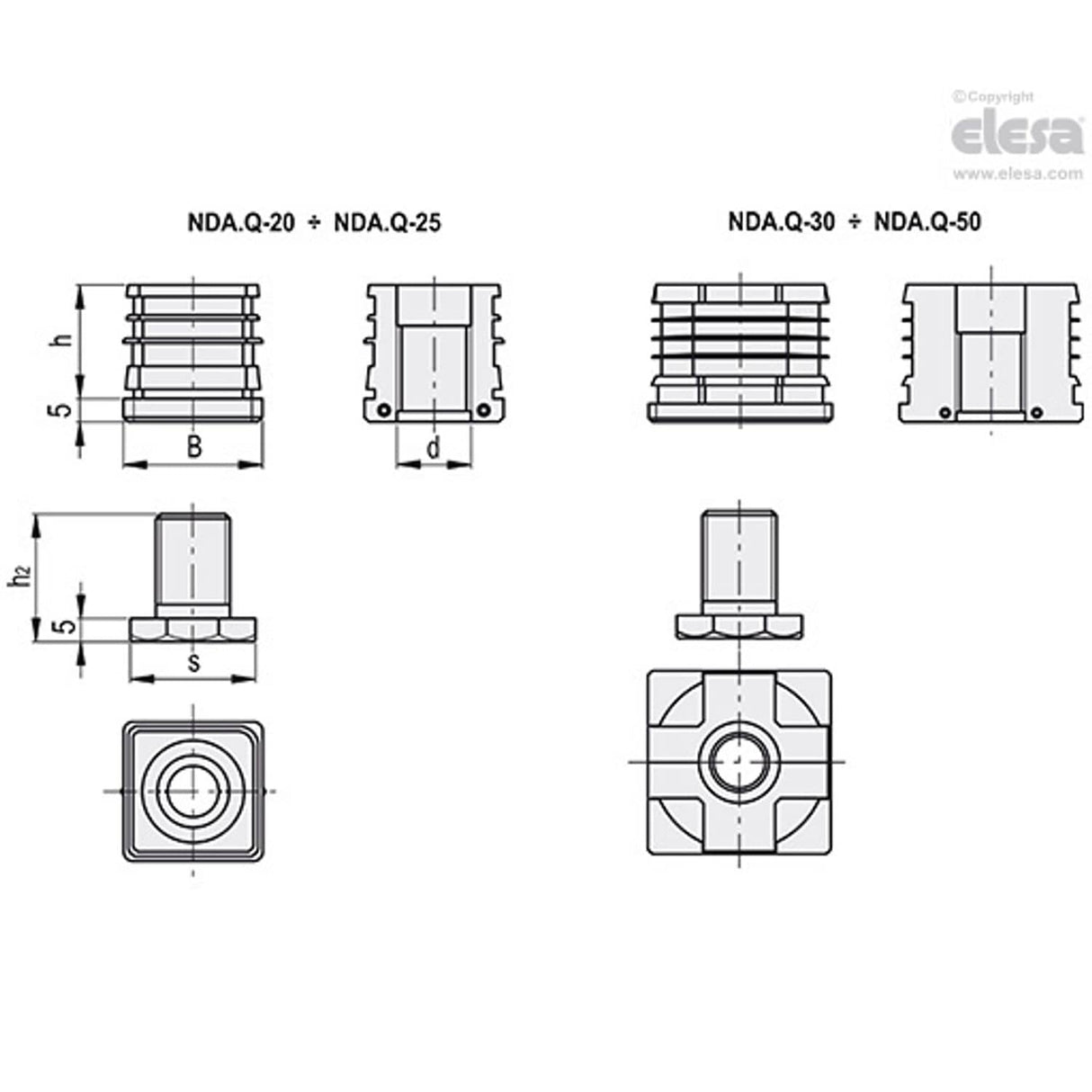

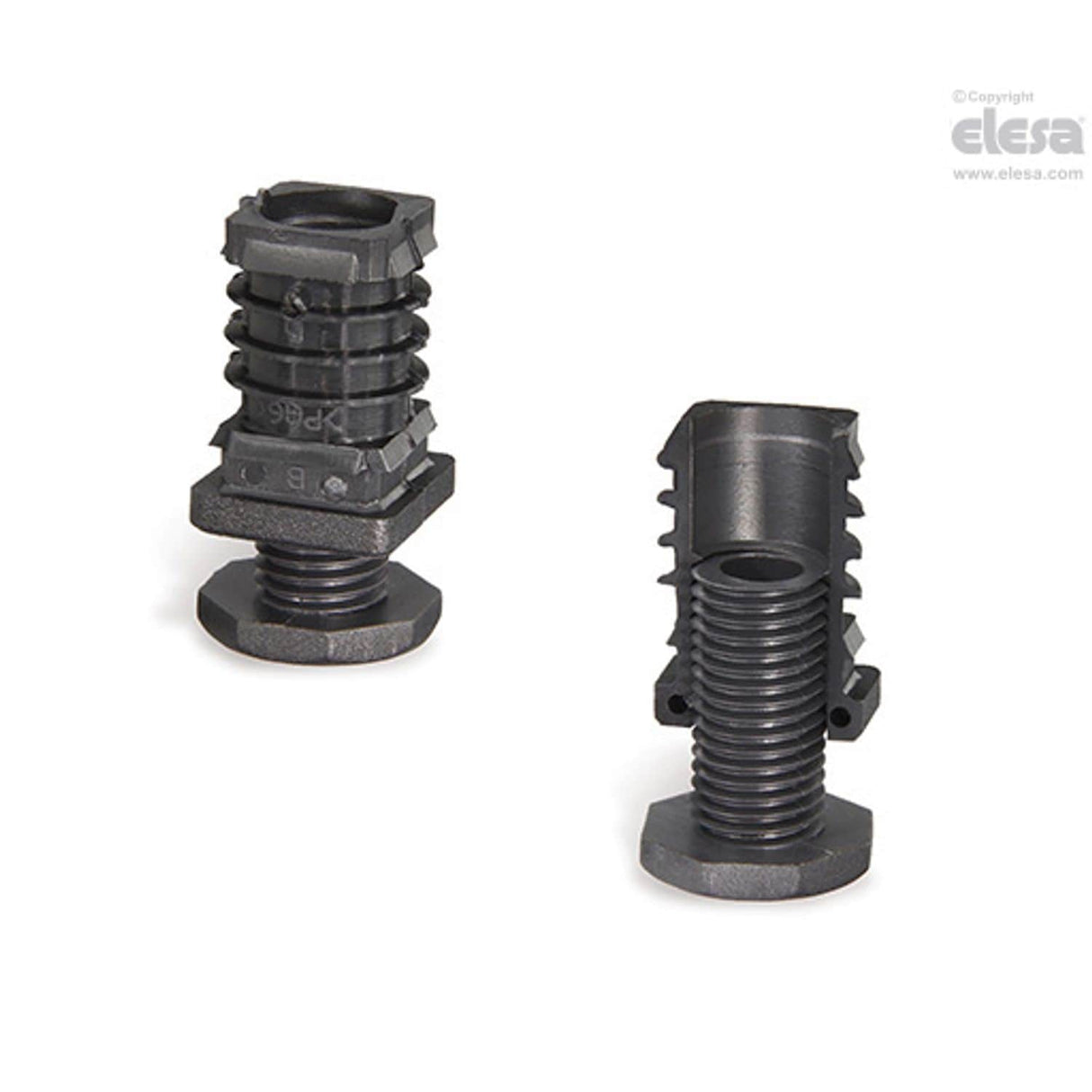

NDA.Q End-caps for square tubes, with adjustable feet, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| d | M22 |
| B | 30 |
| Tube Thickness Range | 1.5 \ufffd 2 |
| h2 | 35 |
| MFR Part No. | NDA.Q-30-M22x30 |
| h | 26 |
| Max. Static Load | 2500N |
| Weight | 17g |
| s | SW27 |
| External Diameter | 30 |
| Internal Diameter (Min-Max) | 27 \ufffd 26 |
