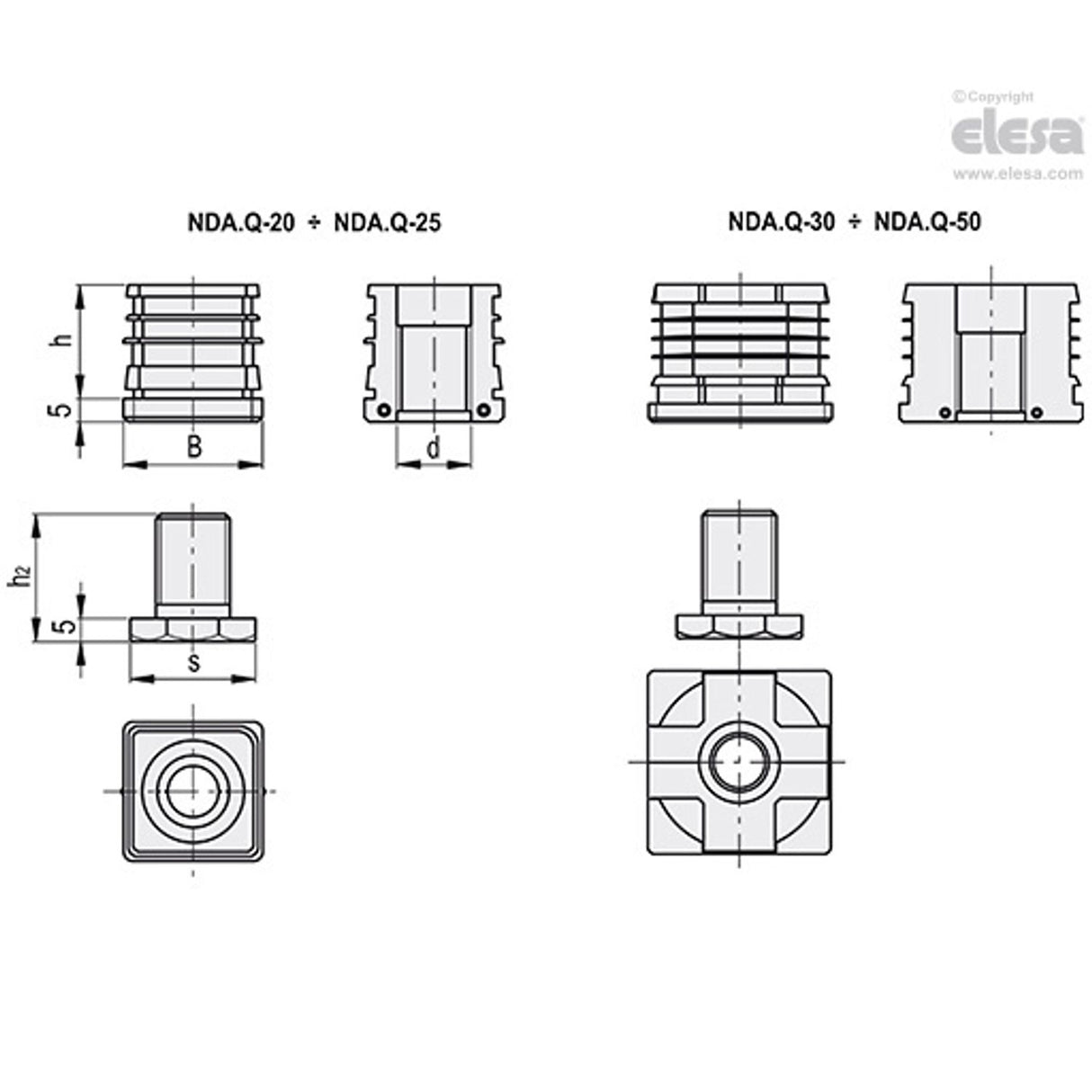

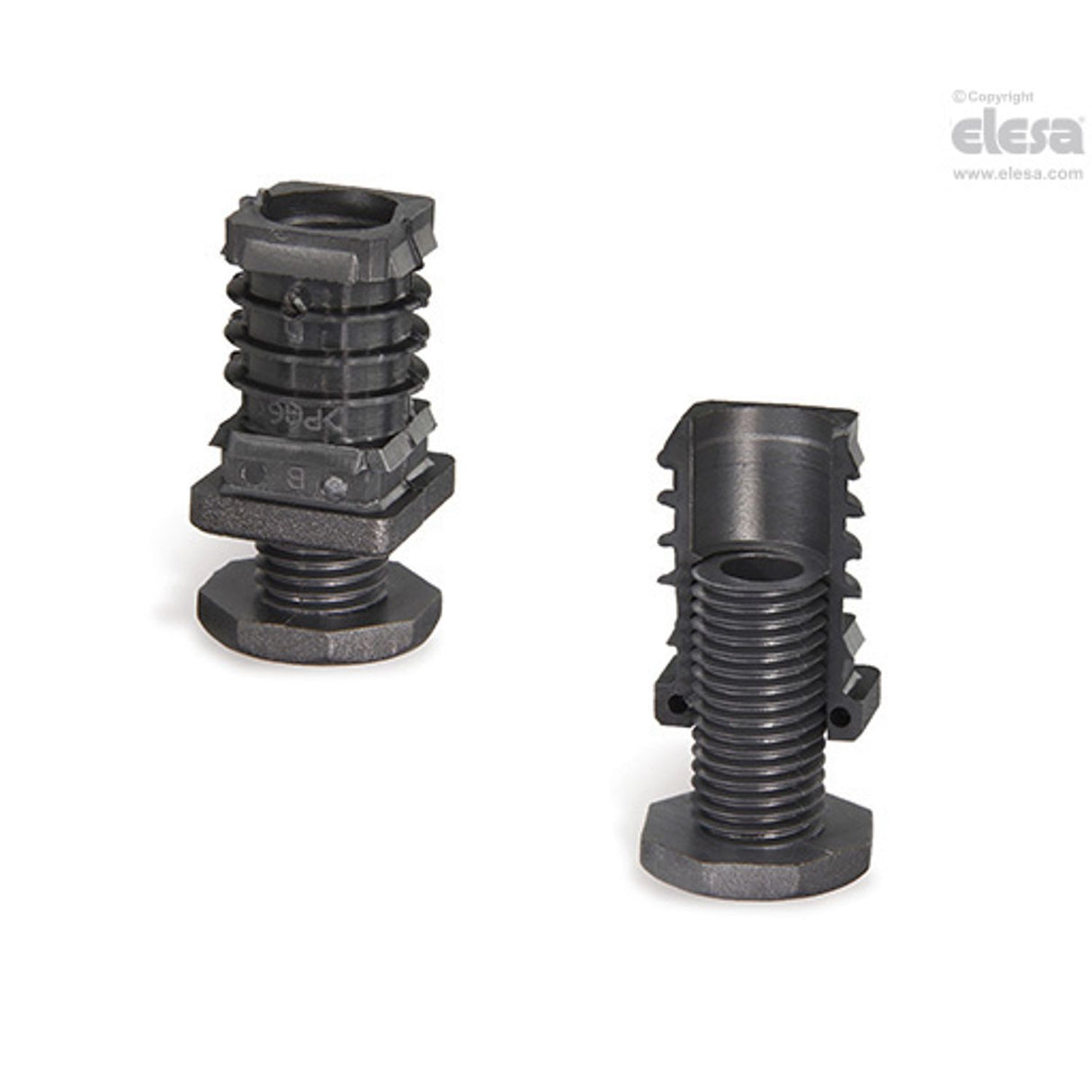

NDA.Q End-caps for square tubes, with adjustable feet, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 14g |
| h | 34 |
| MFR Part No. | NDA.Q-25-M12x30 |
| External Diameter | 25 |
| Max. Static Load | 1000N |
| s | SW19 |
| d | M12 |
| B | 25 |
| Tube Thickness Range | 1.5 \ufffd 2 |
| Internal Diameter (Min-Max) | 22 \ufffd 21 |
| h2 | 32 |
