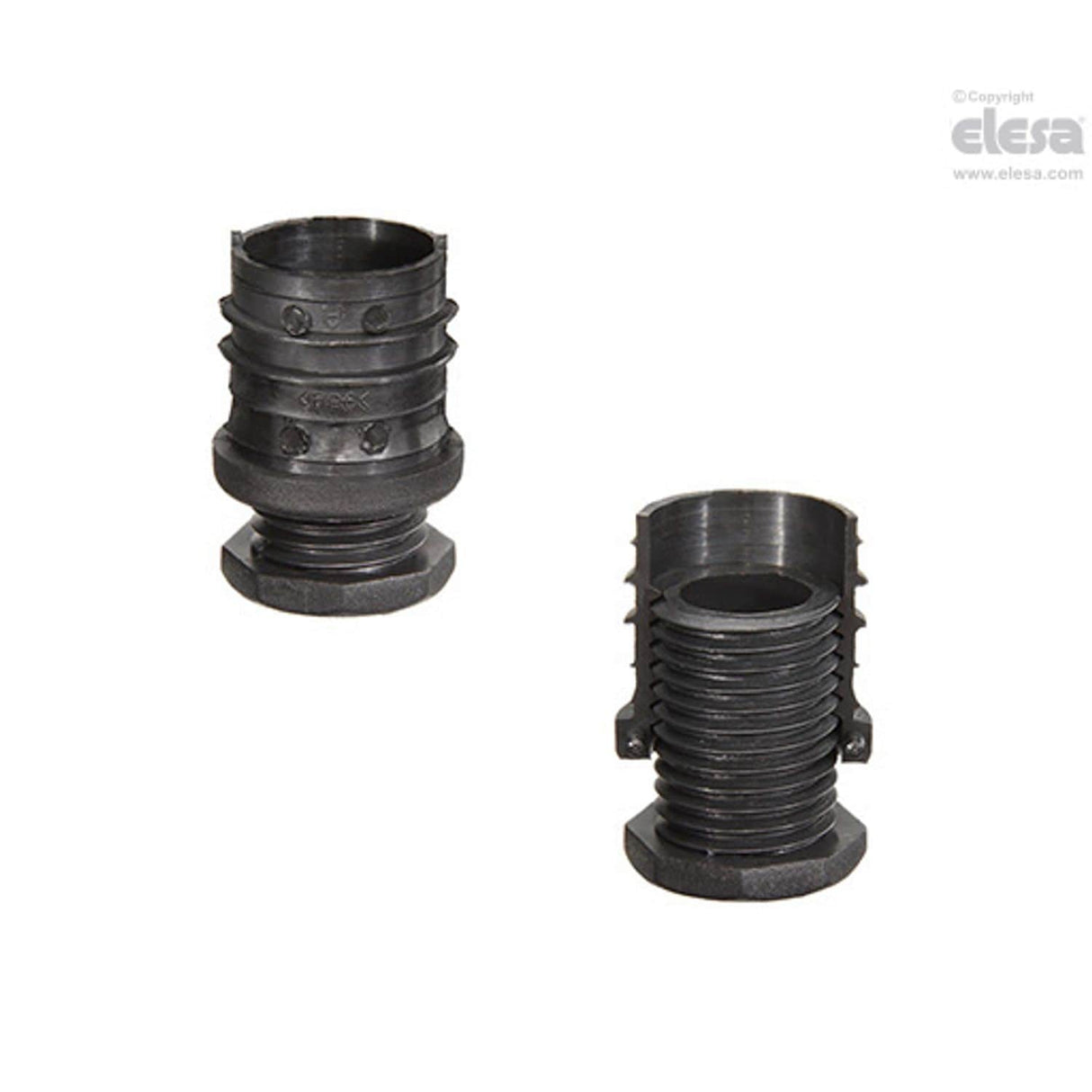

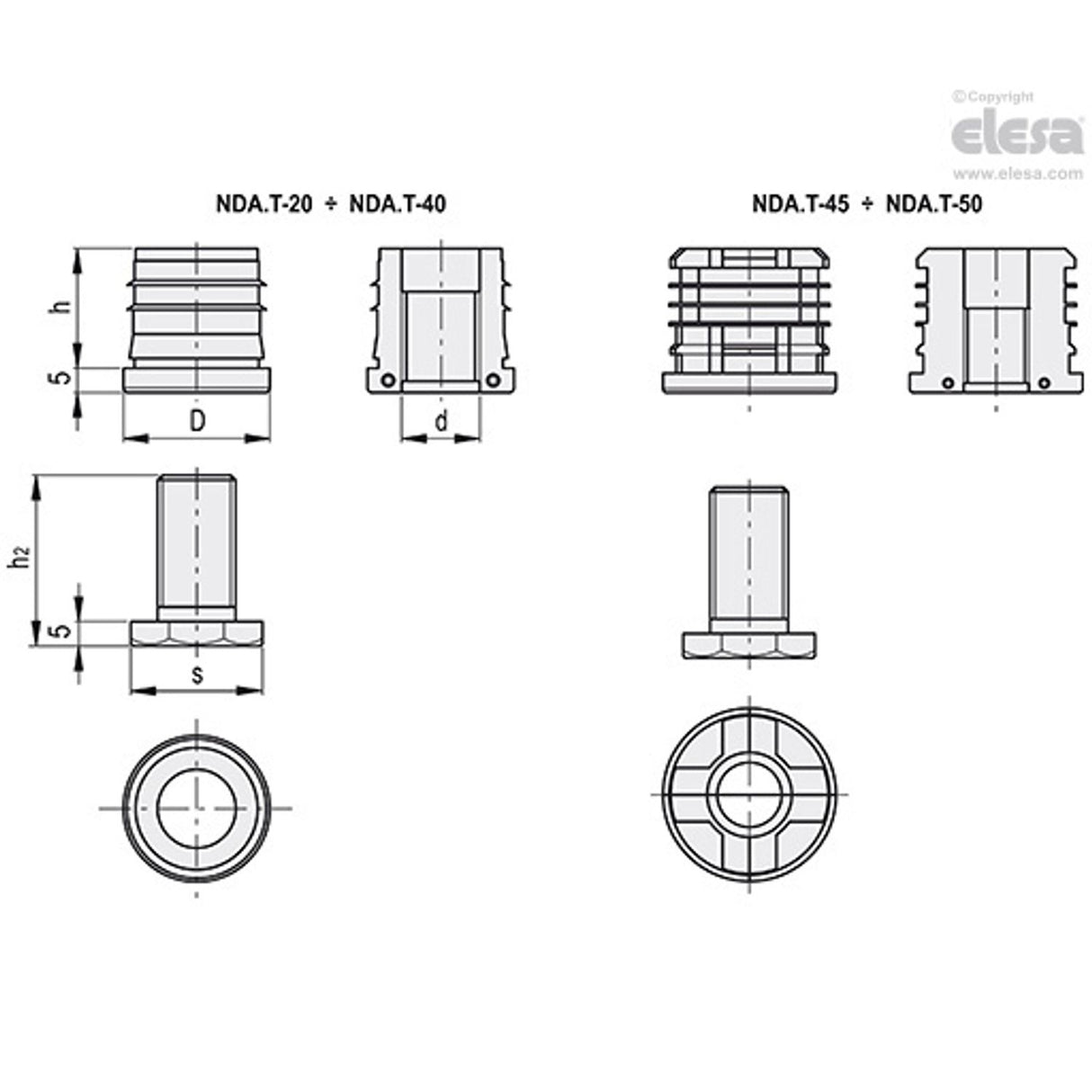

NDA.T End-caps for round tubes, with adjustable feet, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| h | 34 |
| D | 22 |
| Max. Static Load | 1000N |
| h2 | 32 |
| s | SW19 |
| Internal Diameter (Min-Max) | 20 \ufffd 19 |
| d | M12 |
| Diameter | 22mm |
| External Diameter | 22 |
| MFR Part No. | NDA.T-22-M12x30 |
| Tube Thickness Range | 1 \ufffd 1.5 |
| Weight | 9g |
