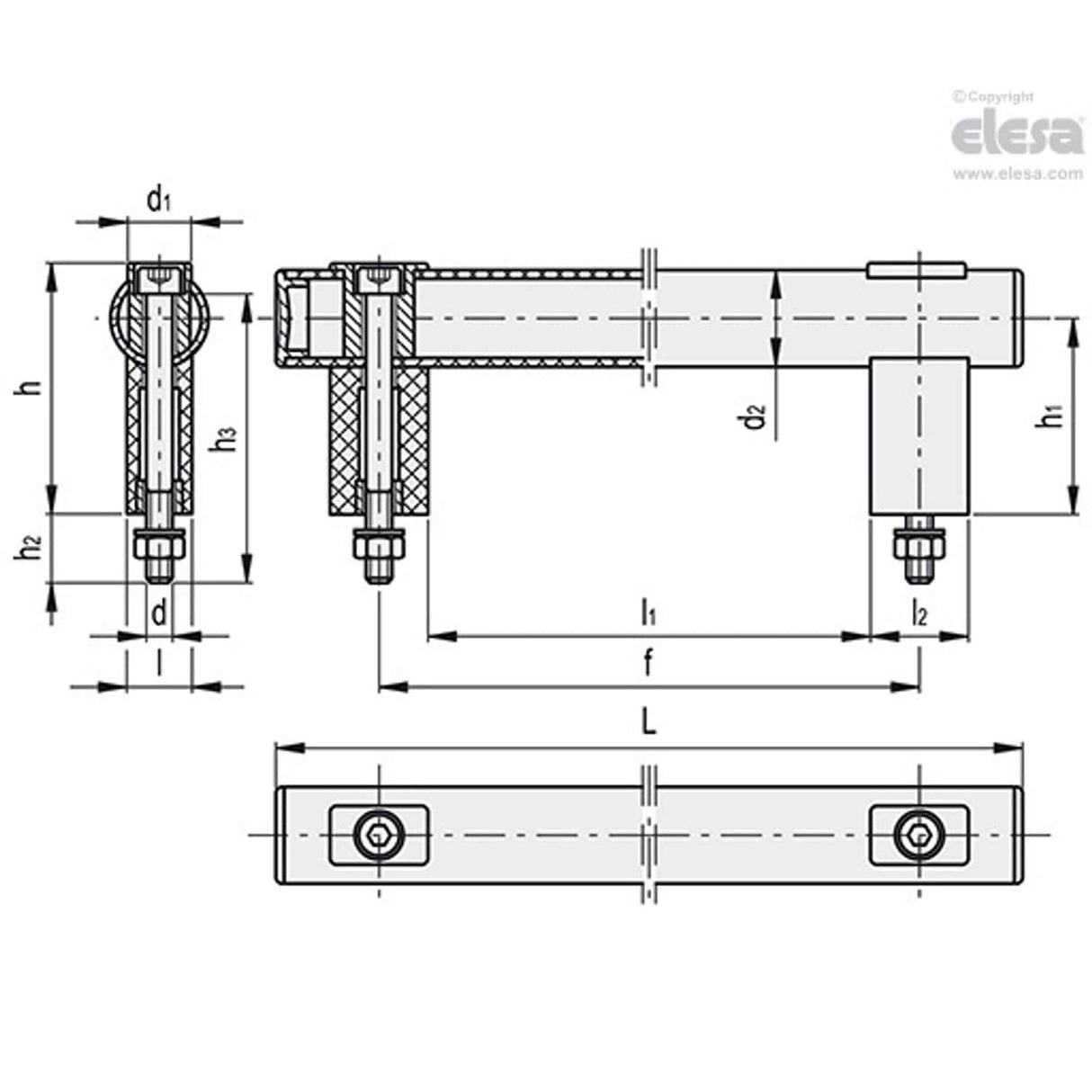

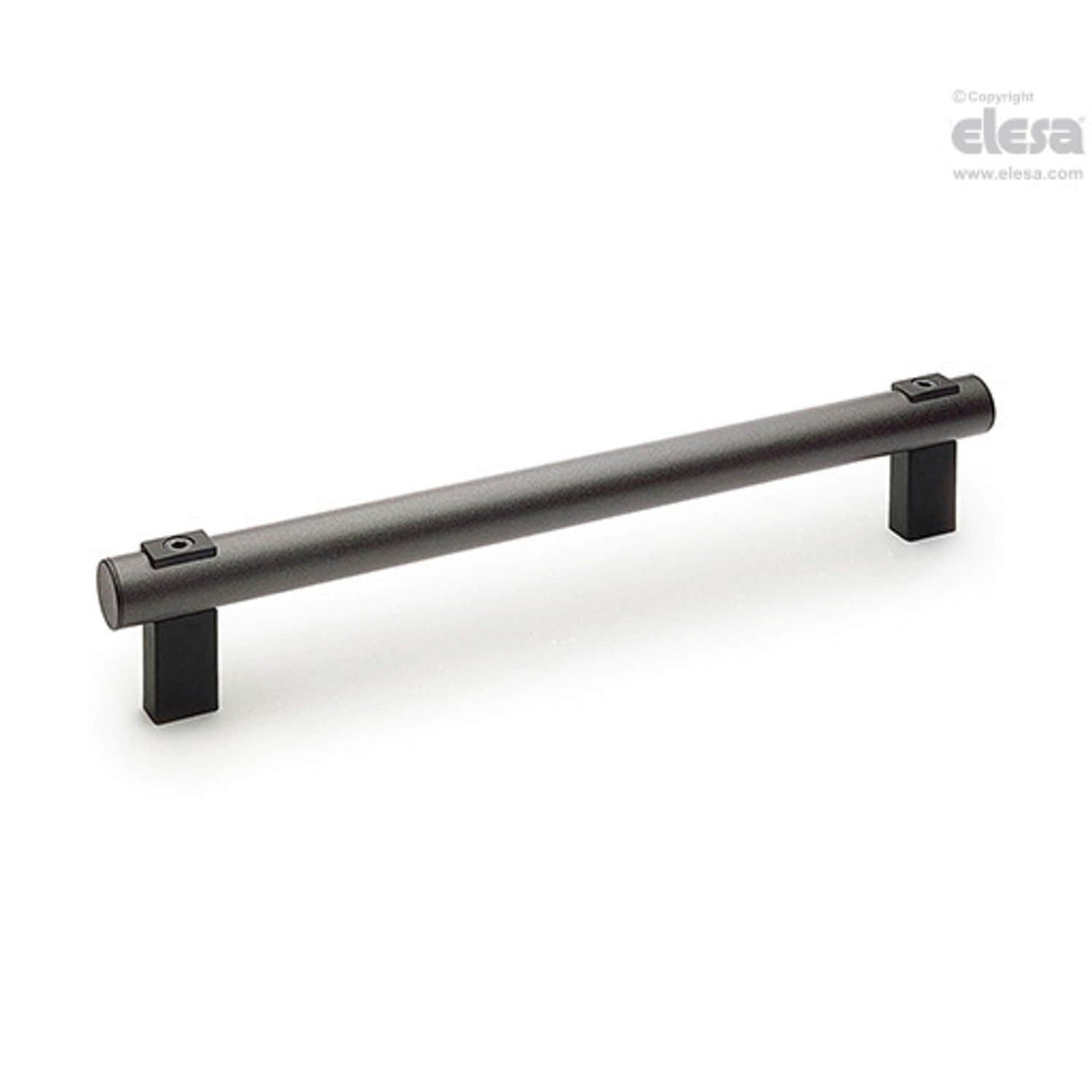

M.1066 Tubular handles, Technopolymer, aluminium, stainless steel, Aluminium tube with coating in metalflake graphite colour, front mounting For product drawing and dimensions refer to pdf Item data sheet.
| h | 77 |
| d2 | 30 |
| l1 | 570 |
| L | 665 |
| Weight | 433g |
| F2 | 880N |
| h2 | 22 |
| h3 | 90 |
| MFR Part No. | M.1066 FM/30-600 |
| d | M8 |
| F2# | 3200N |
| l | 18 |
| d1 | 13 |
| h1 | 60 |
| l2 | 30 |
