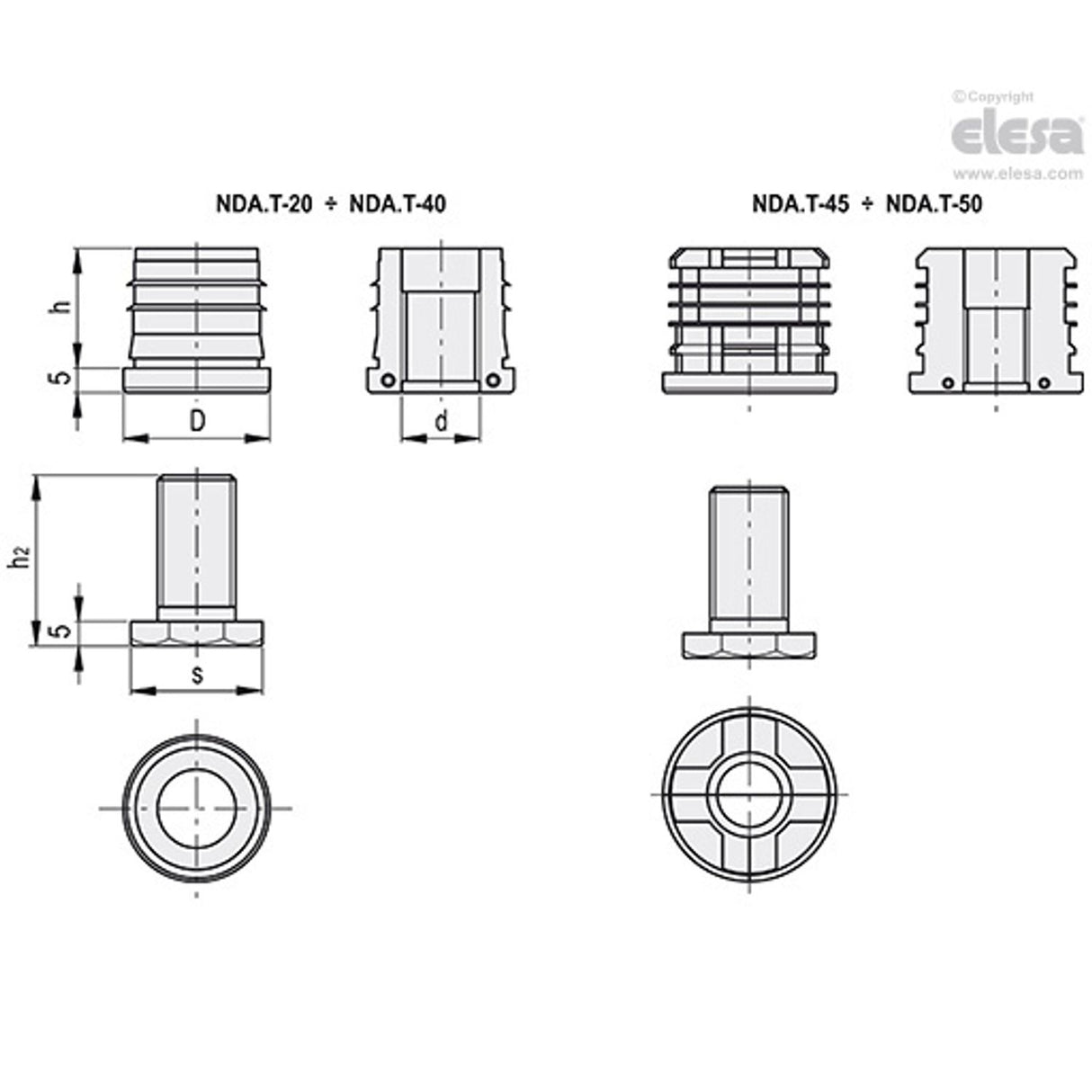

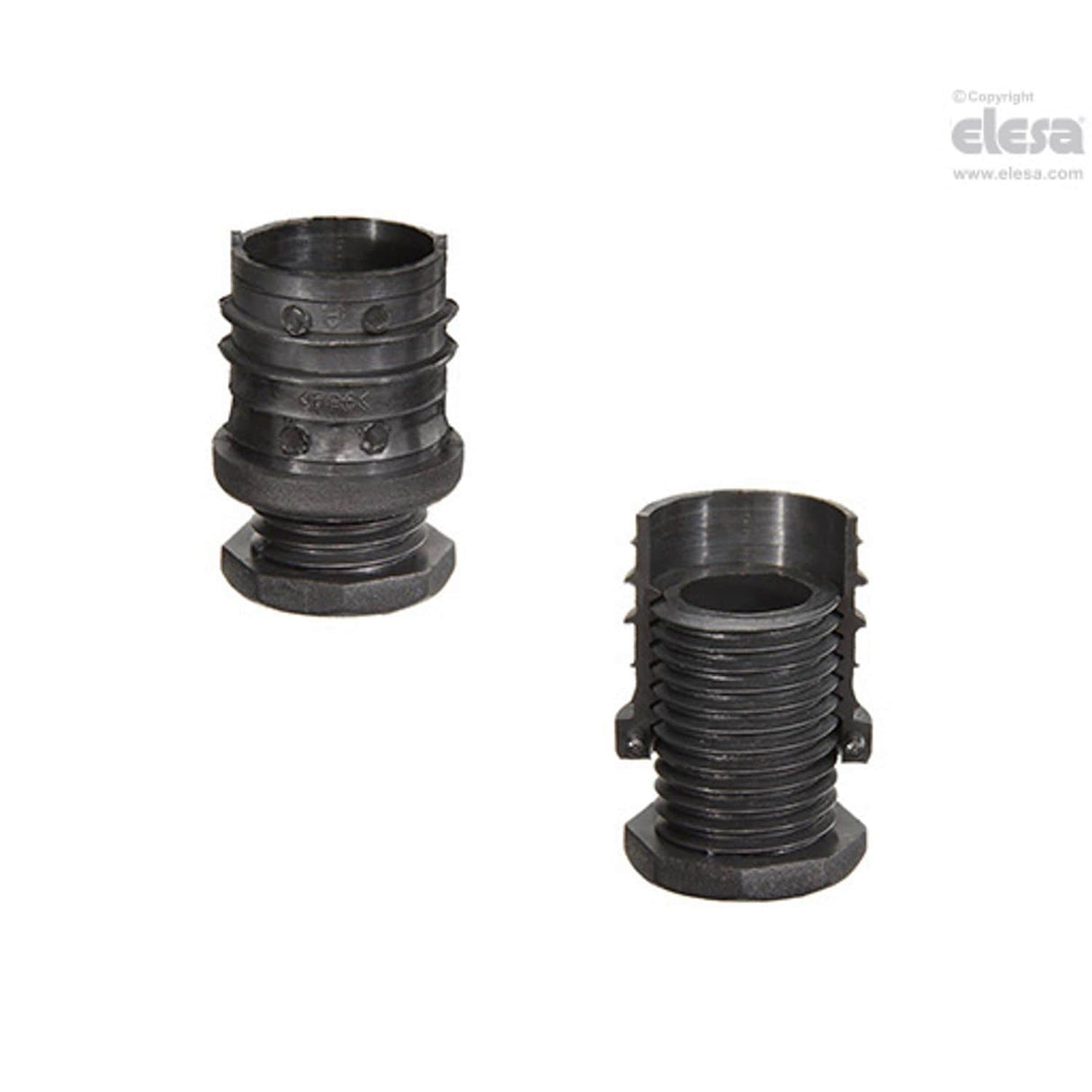

NDA.T End-caps for round tubes, with adjustable feet, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| Tube Thickness Range | 1.2 \ufffd 2 |
| Diameter | 35mm |
| d | M22 |
| Weight | 21g |
| External Diameter | 35 |
| Internal Diameter (Min-Max) | 32.6 \ufffd 31 |
| s | SW27 |
| MFR Part No. | NDA.T-35-M22x30 |
| D | 35 |
| h | 34 |
| Max. Static Load | 2500N |
| h2 | 35 |
