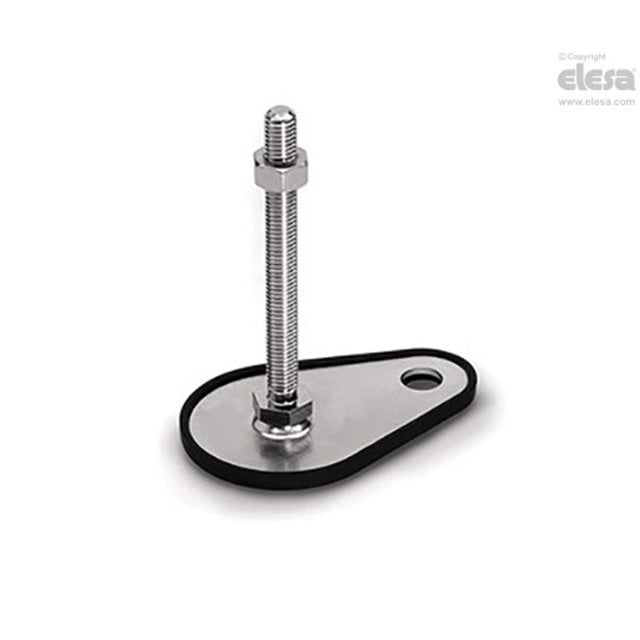

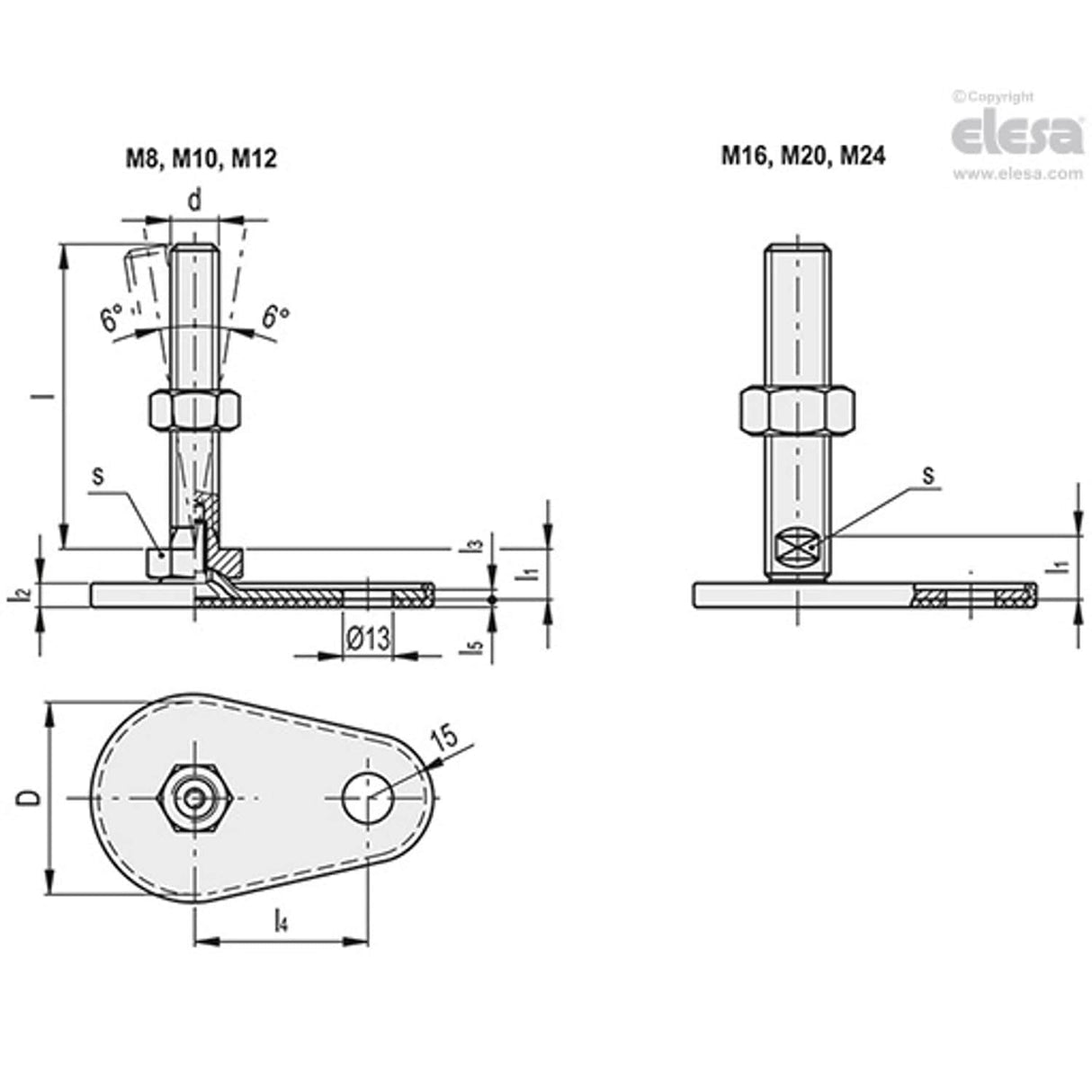

LMP.F-SST - LMP.F-A4 Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem, with elastomer no-slip coating, AISI 316L stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| l5 | 2 |
| d | M16 |
| D | 60 |
| MFR Part No. | LMP.F-60-A4-M16x100-TR |
| Diameter | 60mm |
| l2 | 6 |
| Weight | 261g |
| Max. Static Load | 16000N |
| l4 | 50 |
| l1 | 17 |
| l | 100 |
| l3 | 2.5 |
| s | 12 |
