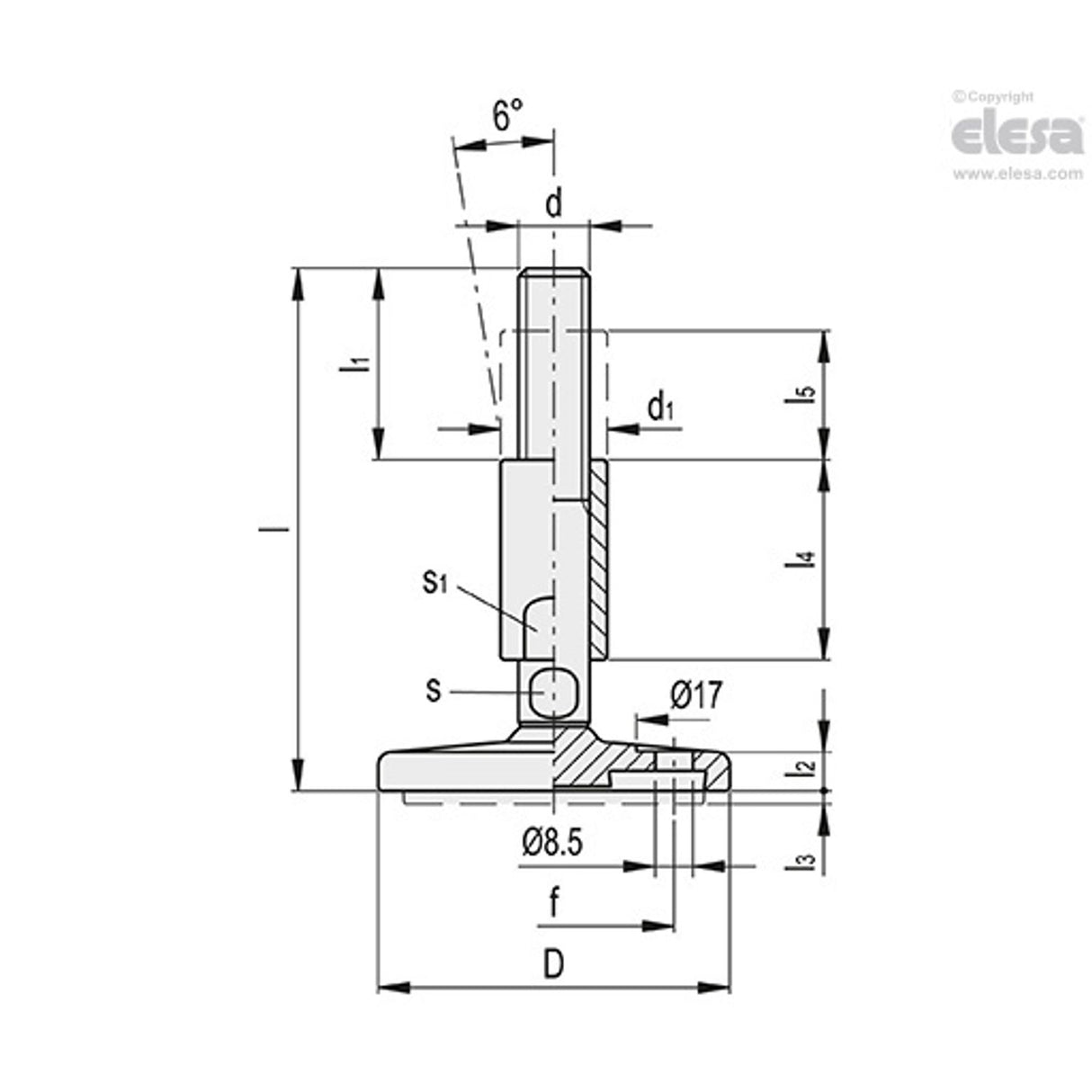

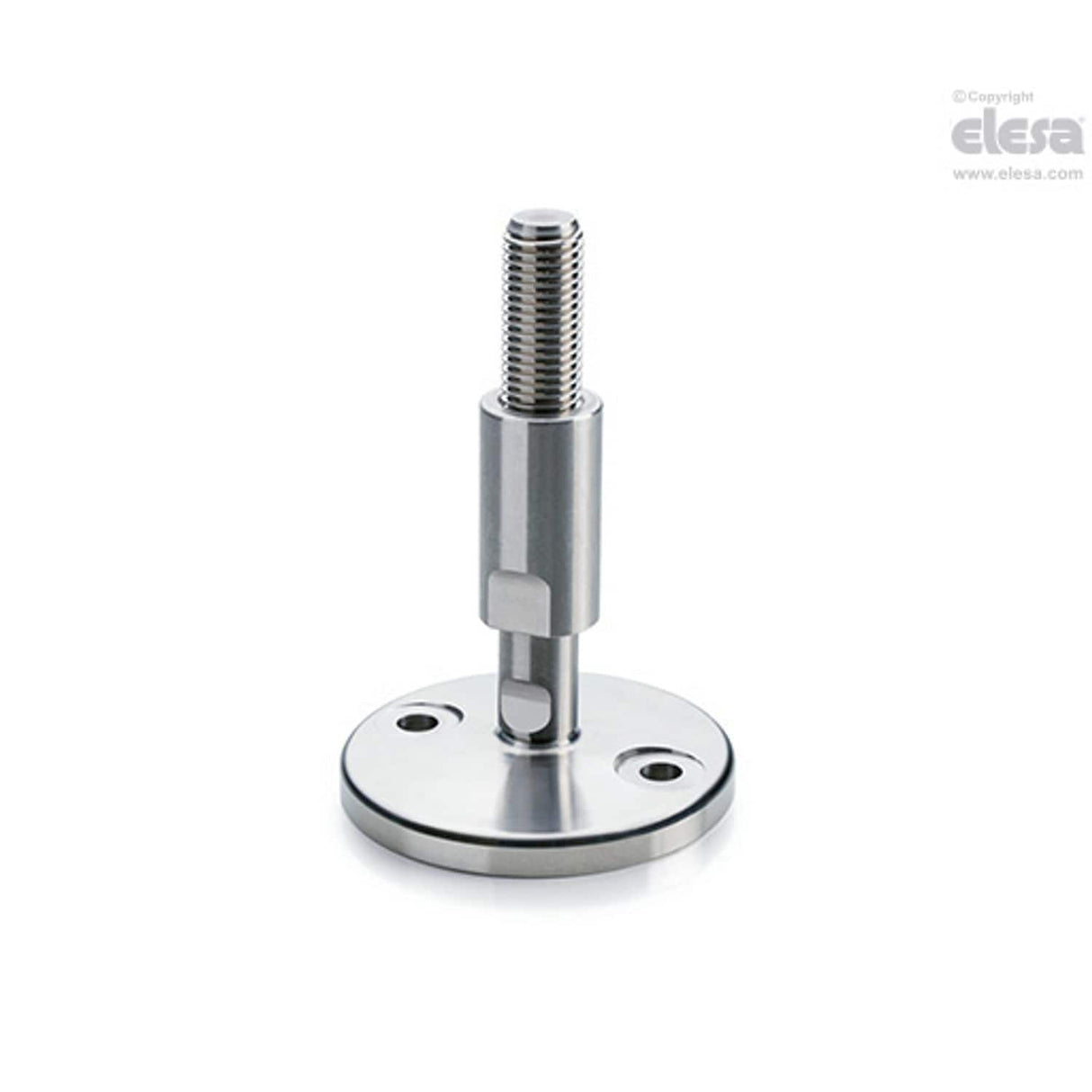

LMY.F Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem with centre bushing For product drawing and dimensions refer to pdf Item data sheet.
| l4 | 56 |
| s1 | 24 |
| Static Load | 35000kN |
| l | 143 |
| l1 | 56 |
| Diameter | 80mm |
| l5 | 36 |
| f | 54.5 |
| s | 16 |
| l2 | 8.5 |
| d1 | 30 |
| D | 80 |
| MFR Part No. | LMY.F-80-SST-M20x143-HV |
| d | M20 |
