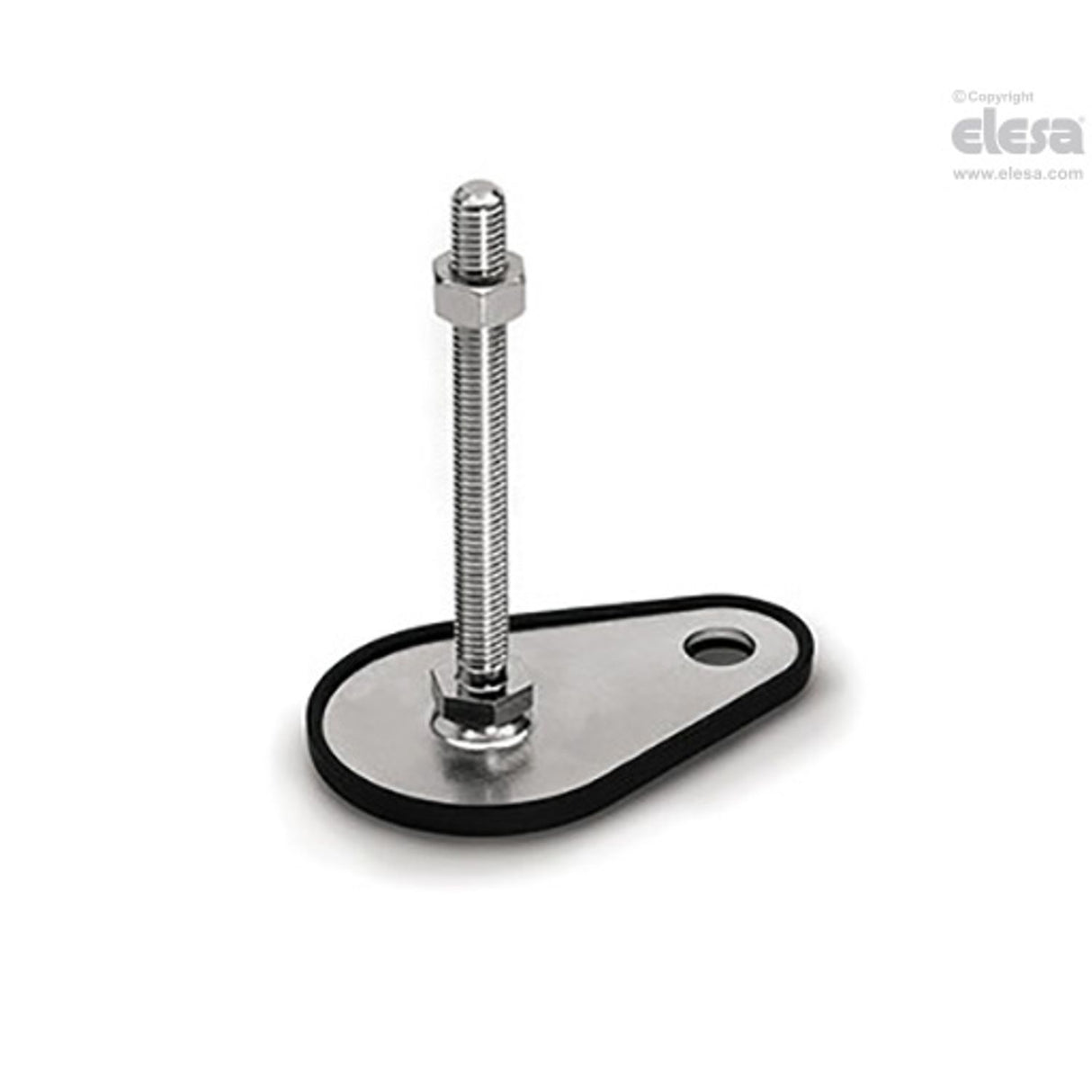

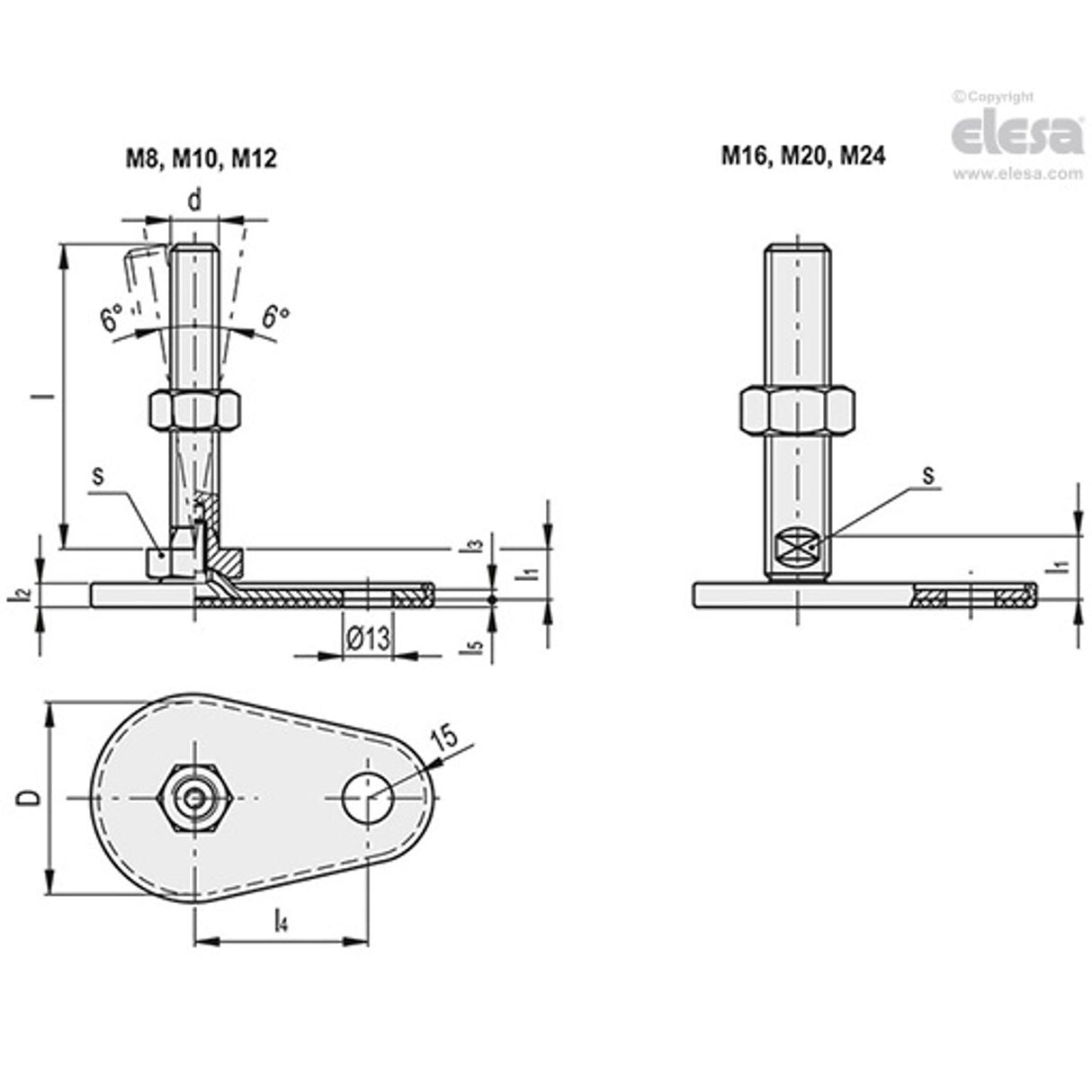

LMP.F-SST - LMP.F-A4 Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem, with elastomer no-slip coating, AISI 316L stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| l4 | 70 |
| Diameter | 80mm |
| d | M8 |
| l5 | 2 |
| s | 17 |
| MFR Part No. | LMP.F-80-A4-M8x63-TR |
| l1 | 12 |
| l3 | 3 |
| l2 | 7 |
| Max. Static Load | 8000N |
| l | 63 |
| D | 80 |
| Weight | 236g |
