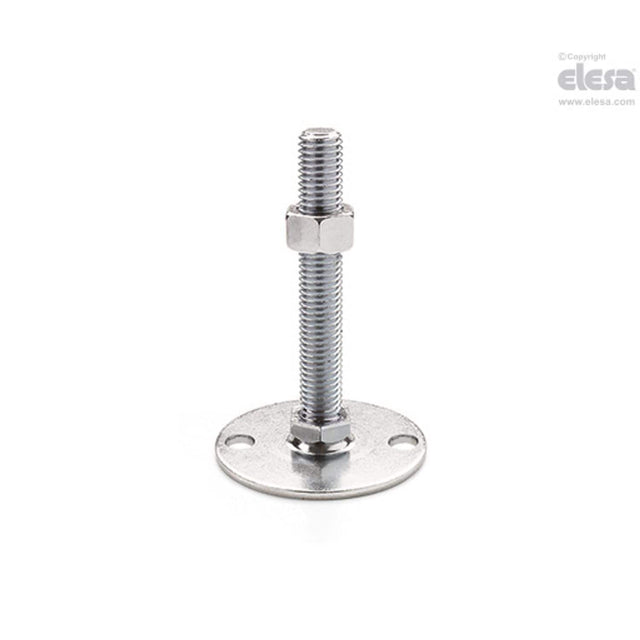

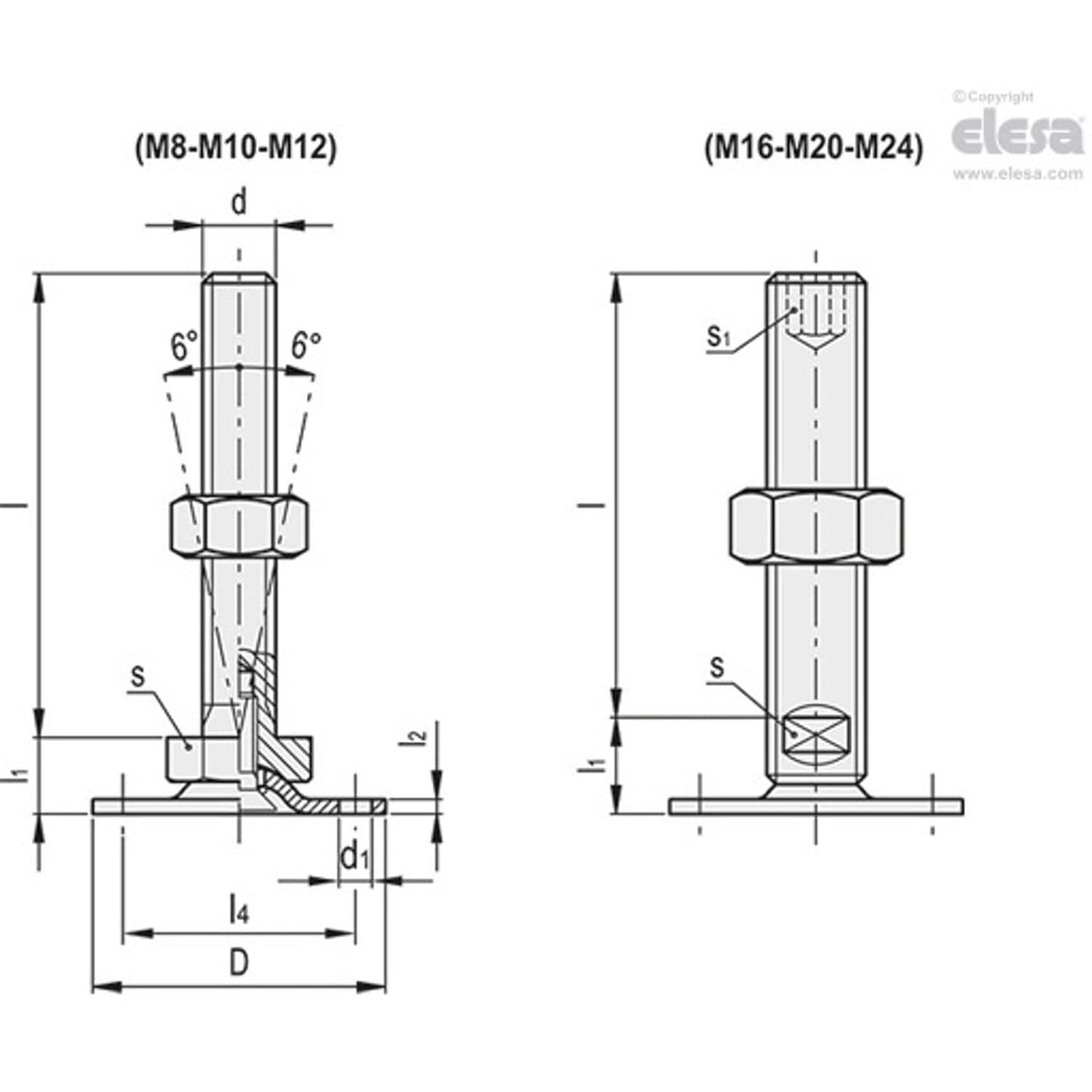

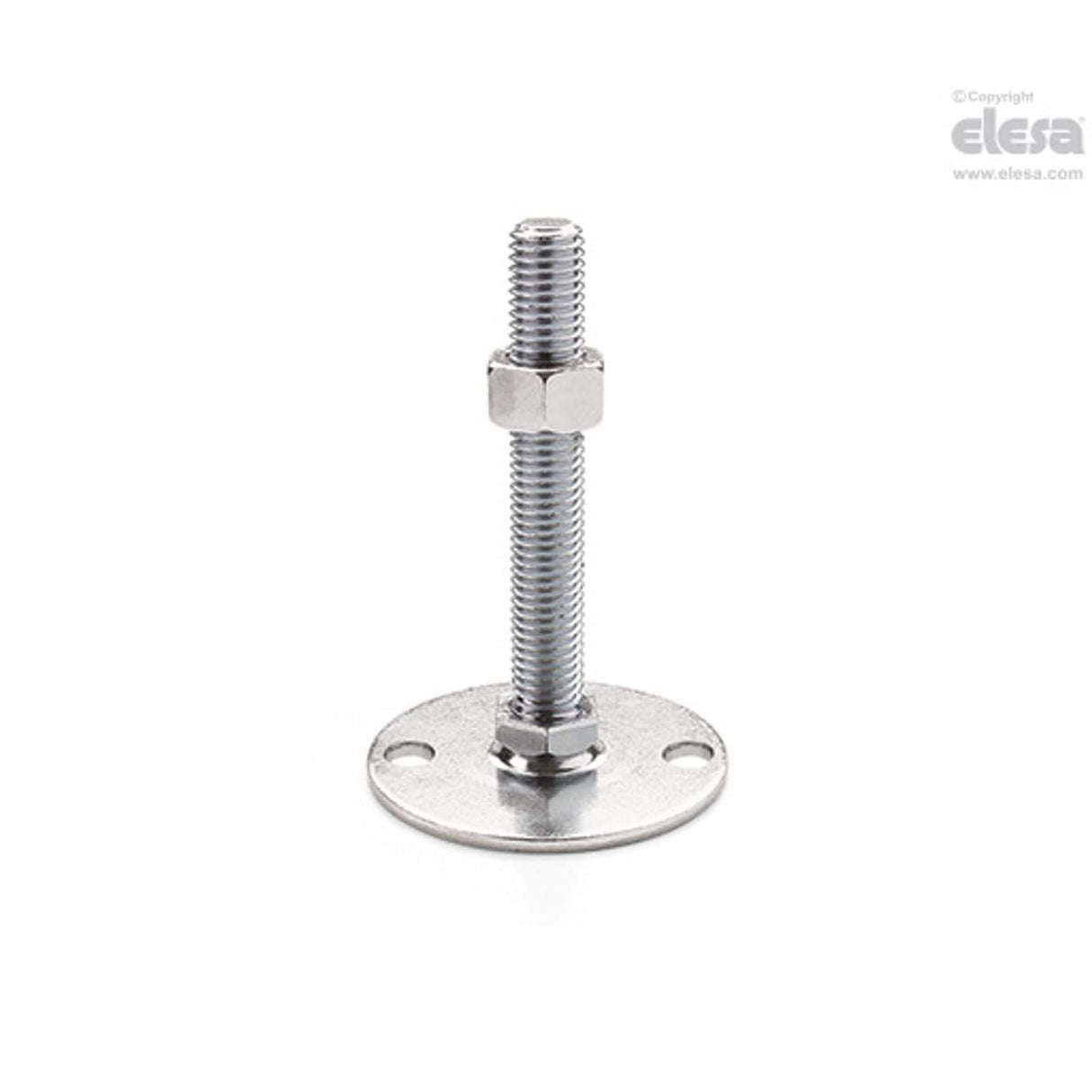

LMP.FF Levelling feet for ground mounting, Steel base and stem, Threaded stem For product drawing and dimensions refer to pdf Item data sheet.
| s1 | 8 |
| Diameter | 60mm |
| s | 12 |
| d1 | 6.6 |
| l4 | 48 |
| D | 60 |
| d | M16 |
| l | 75 |
| Max. Static Load | 10000N |
| l2 | 2.5 |
| l1 | 17 |
| Weight | 186g |
| MFR Part No. | LMP.60-M16x75-FF |
