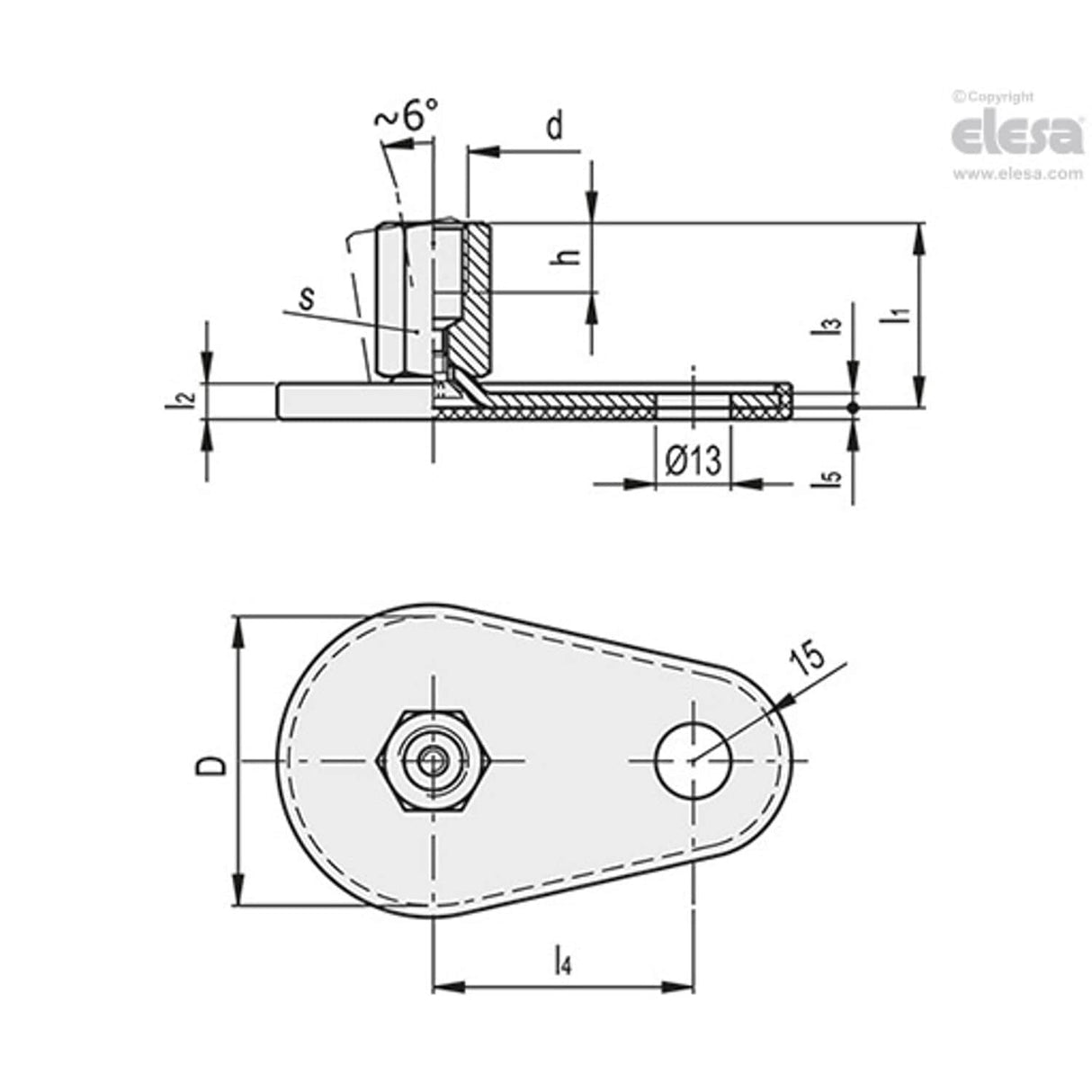

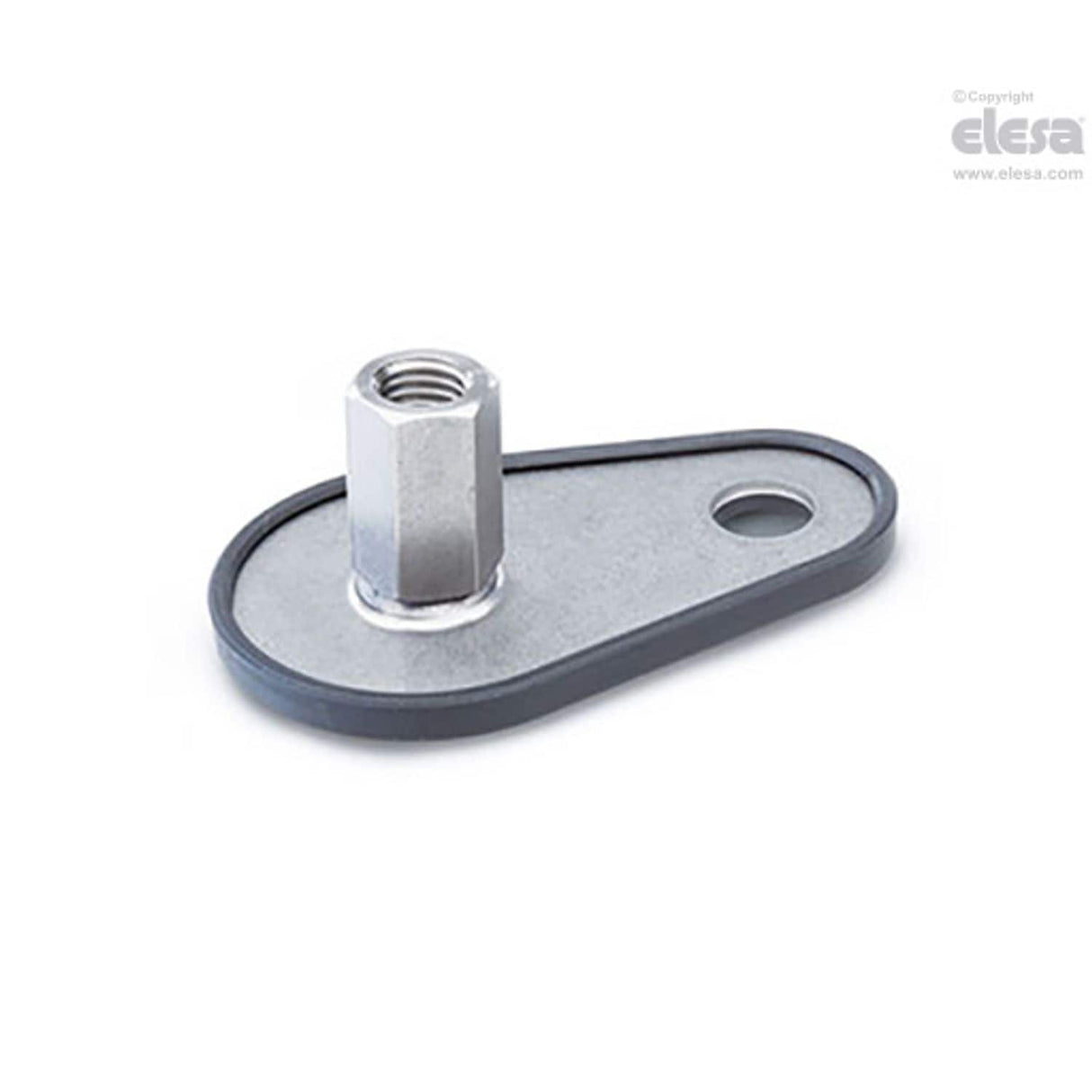

LMP.F-SST - LMP.F-A4 Levelling feet for ground mounting, Stainless steel base and stem, Threaded hole, with elastomer no-slip coating, AISI 304 stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| l5 | 2 |
| d | M12 |
| l3 | 3 |
| Weight | 235g |
| Max. Static Load | 20000N |
| l1 | 32 |
| D | 80 |
| s | 17 |
| Diameter | 80mm |
| h | 12 |
| MFR Part No. | LMP.F-80-SST-M12-TR |
| l2 | 7 |
| l4 | 70 |
