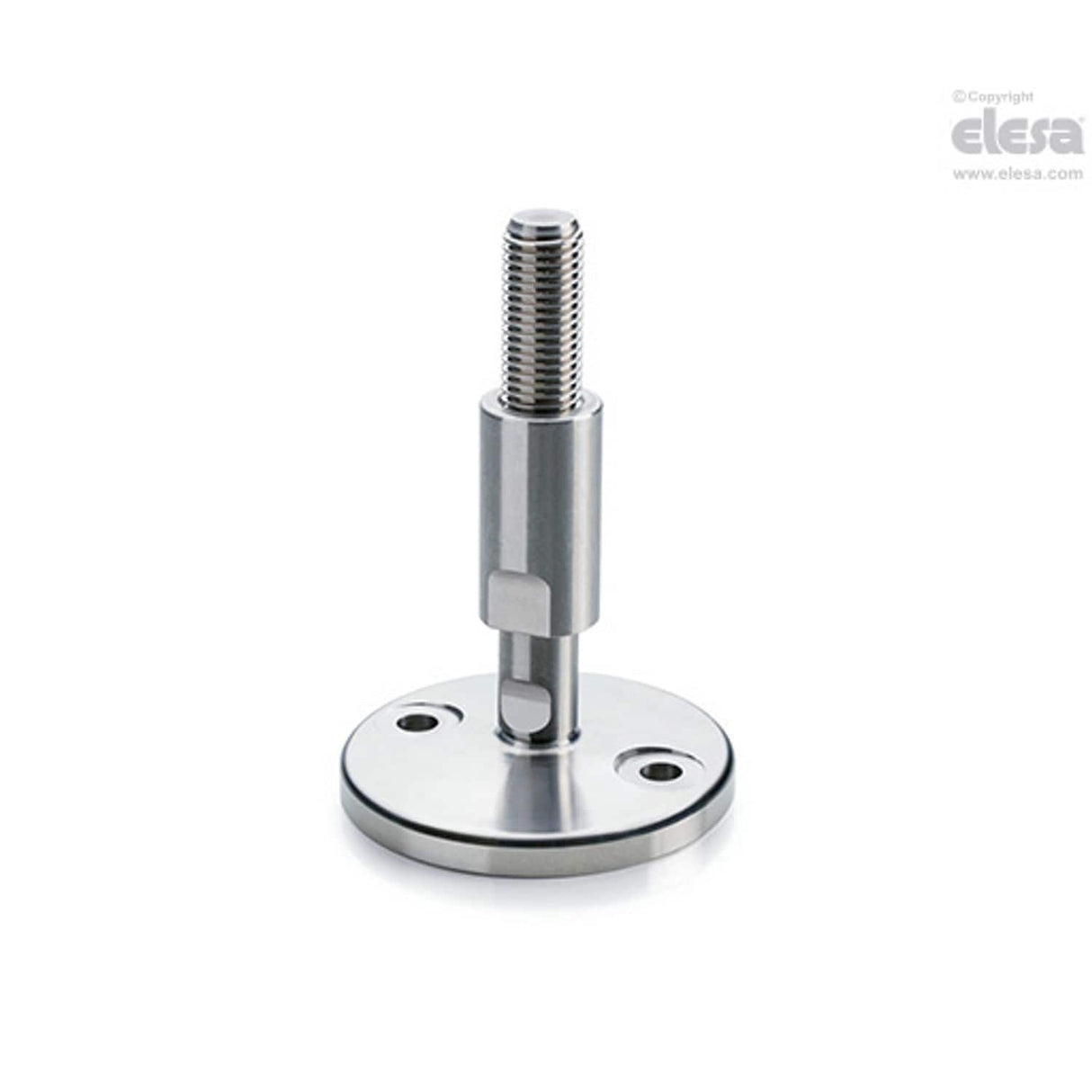

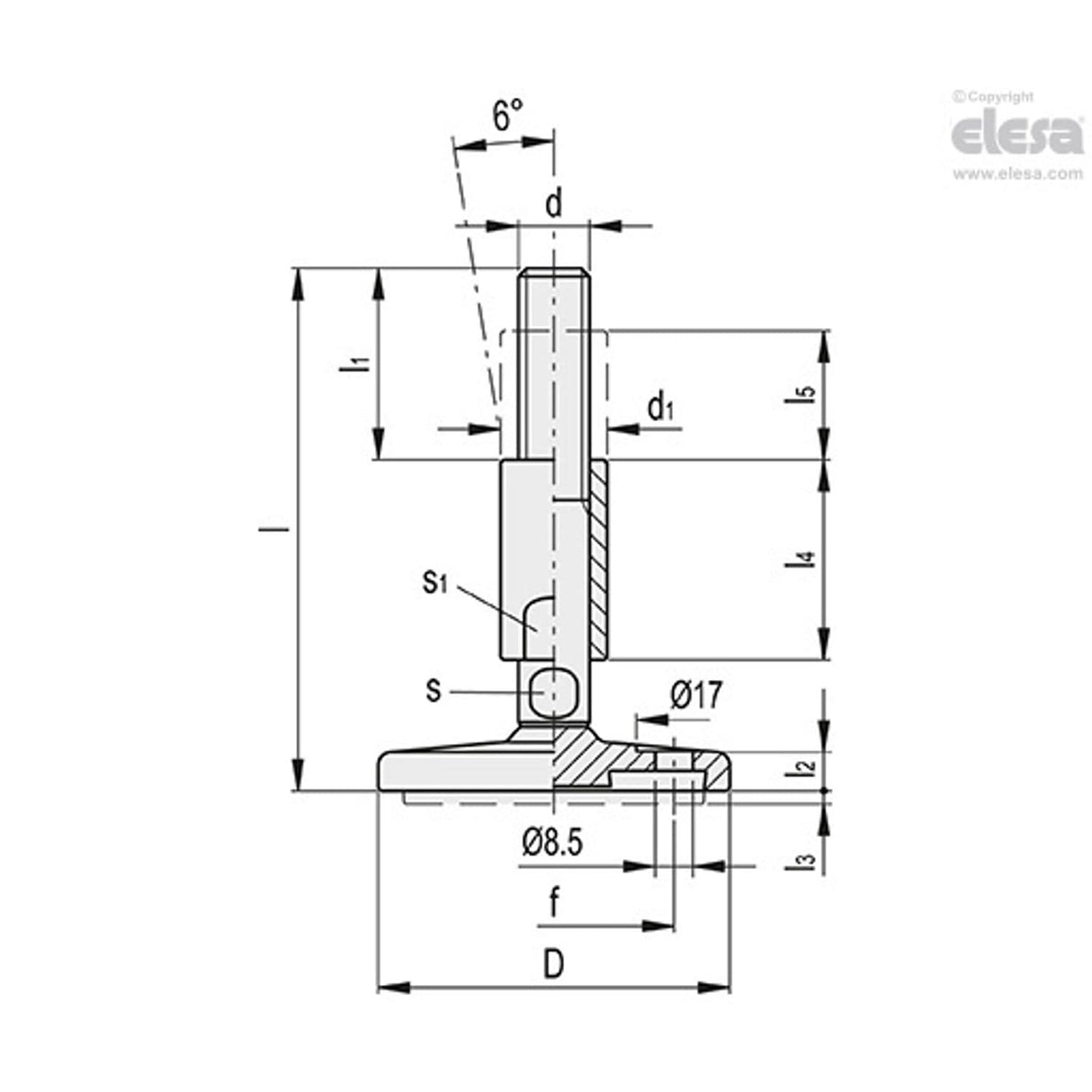

LMY.F Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem with centre bushing For product drawing and dimensions refer to pdf Item data sheet.
| MFR Part No. | LMY.F-100-SST-M24x169-HV |
| Diameter | 100mm |
| l2 | 9 |
| Static Load | 52000kN |
| l5 | 48 |
| l4 | 67 |
| l | 169 |
| s | 20 |
| l1 | 67 |
| s1 | 30 |
| f | 70.5 |
| D | 100 |
| d1 | 35 |
| d | M24 |
