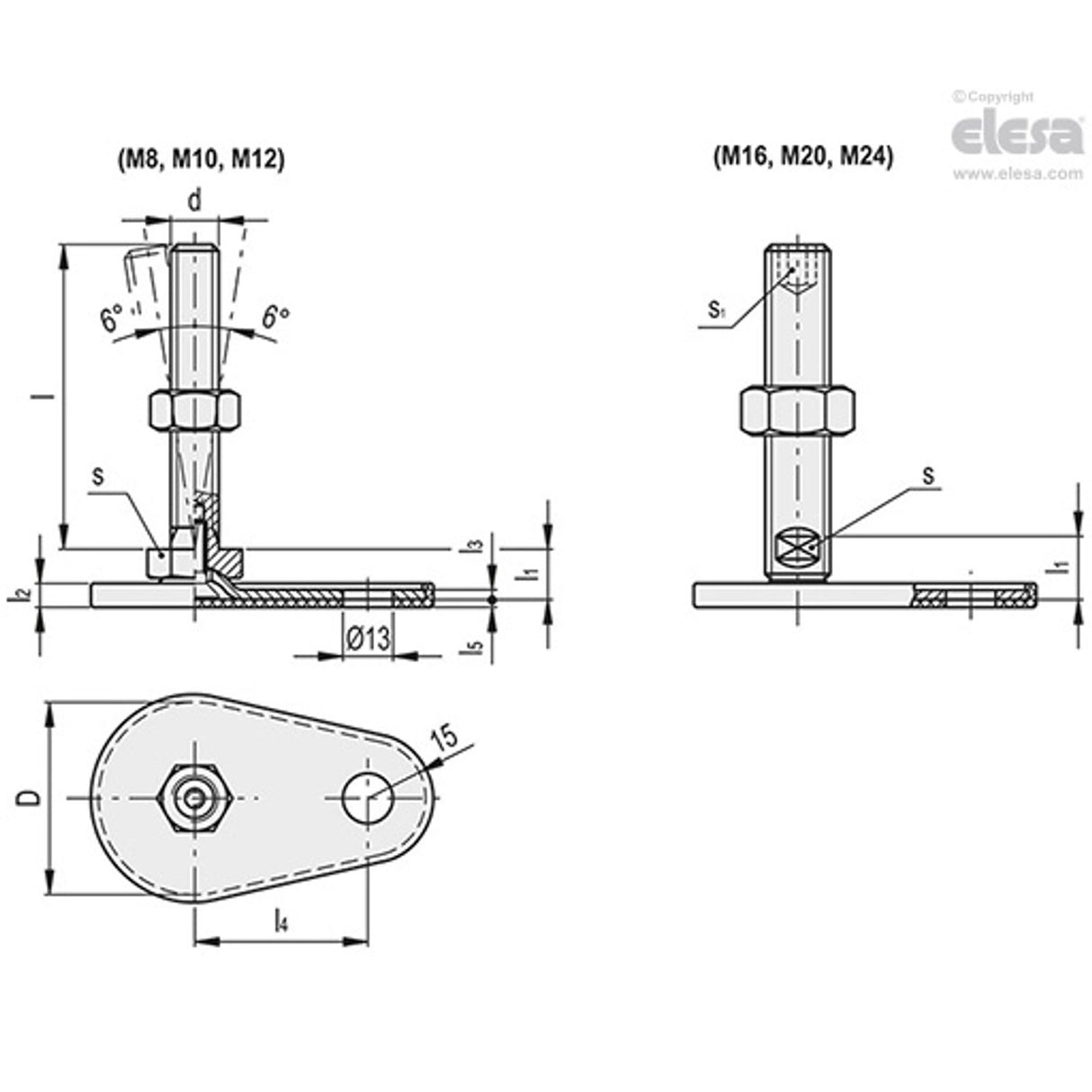

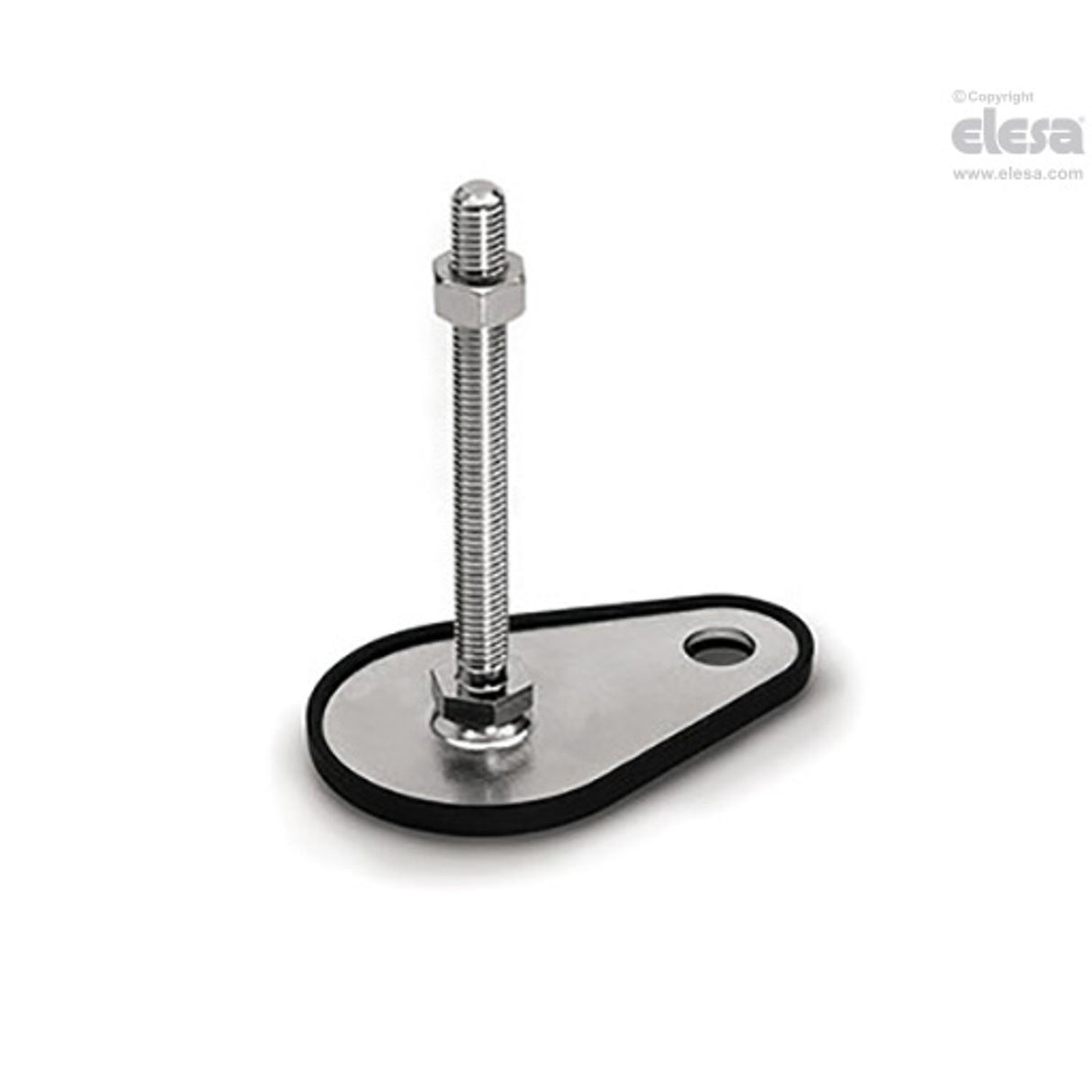

LMP.F-SST - LMP.F-A4 Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem, with elastomer no-slip coating, AISI 303 stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| s1 | 10 |
| d | M20 |
| s | 15 |
| l2 | 7 |
| l | 150 |
| D | 80 |
| Weight | 553g |
| l4 | 70 |
| l3 | 3 |
| l1 | 19 |
| l5 | 2 |
| Diameter | 80mm |
| MFR Part No. | LMP.F-80-SST-M20x150-TR |
| Max. Static Load | 20000N |
