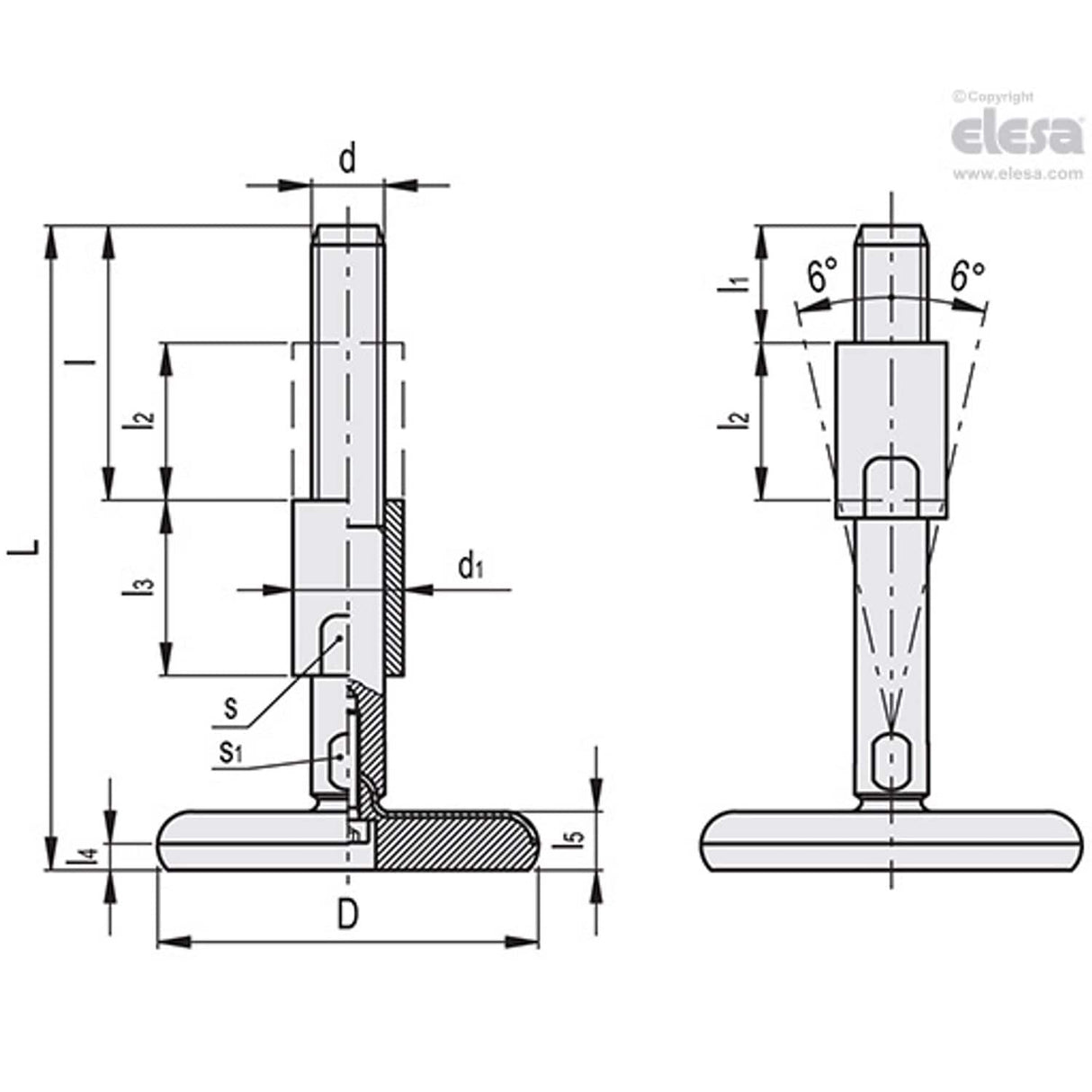

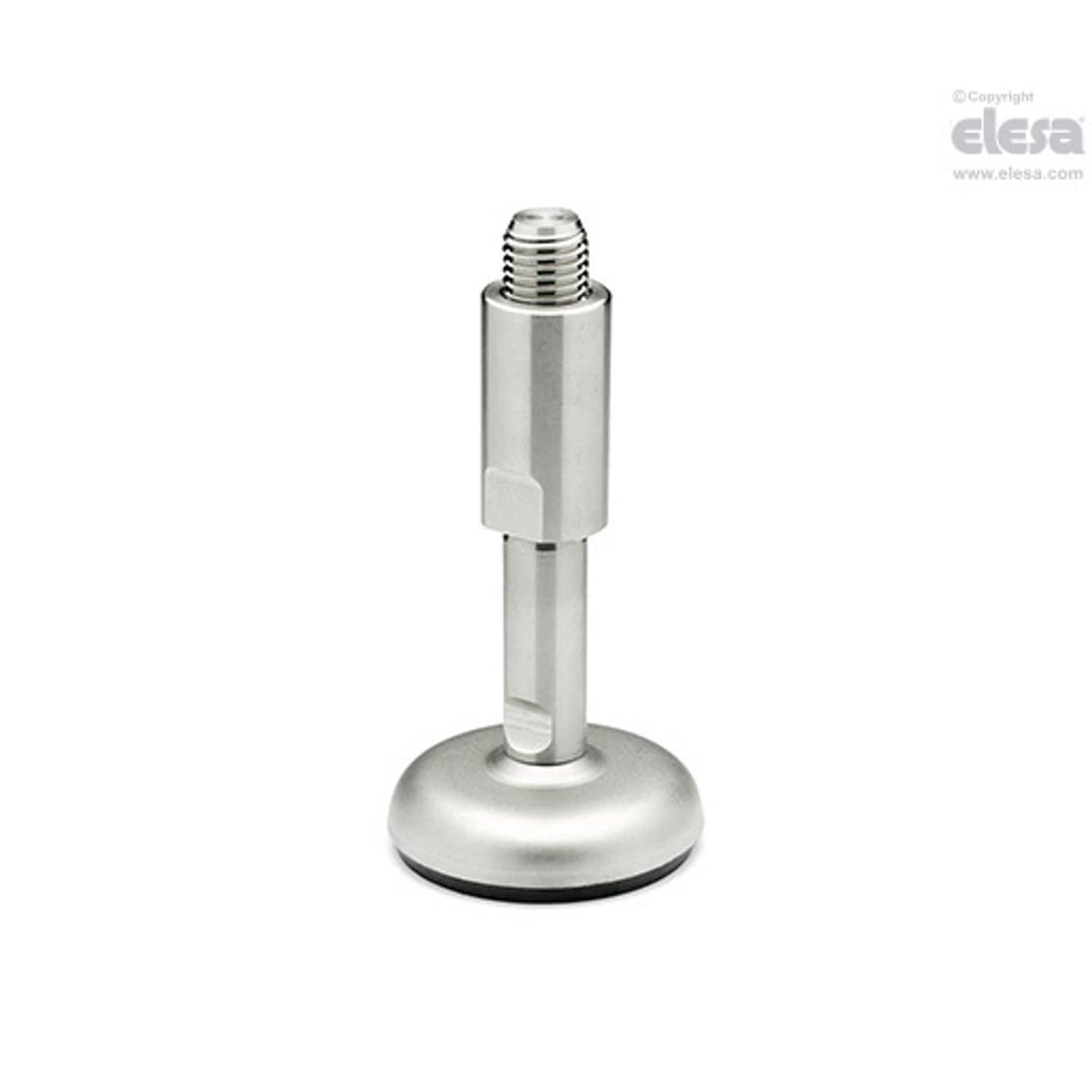

LMRS. Levelling feet, Stainless steel base and stem For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 80mm |
| l3 | 45 |
| D | 80 |
| l1 | 13 |
| l2 | 32 |
| s1 | 12 |
| s | 20 |
| MFR Part No. | LMRS.80-SST-M16x178 |
| L | 178 |
| Max. Static Load | 24000N |
| Weight | 532g |
| l5 | 18 |
| l4 | 5 |
| d1 | 24 |
| d | M16 |
| l | 45 |
