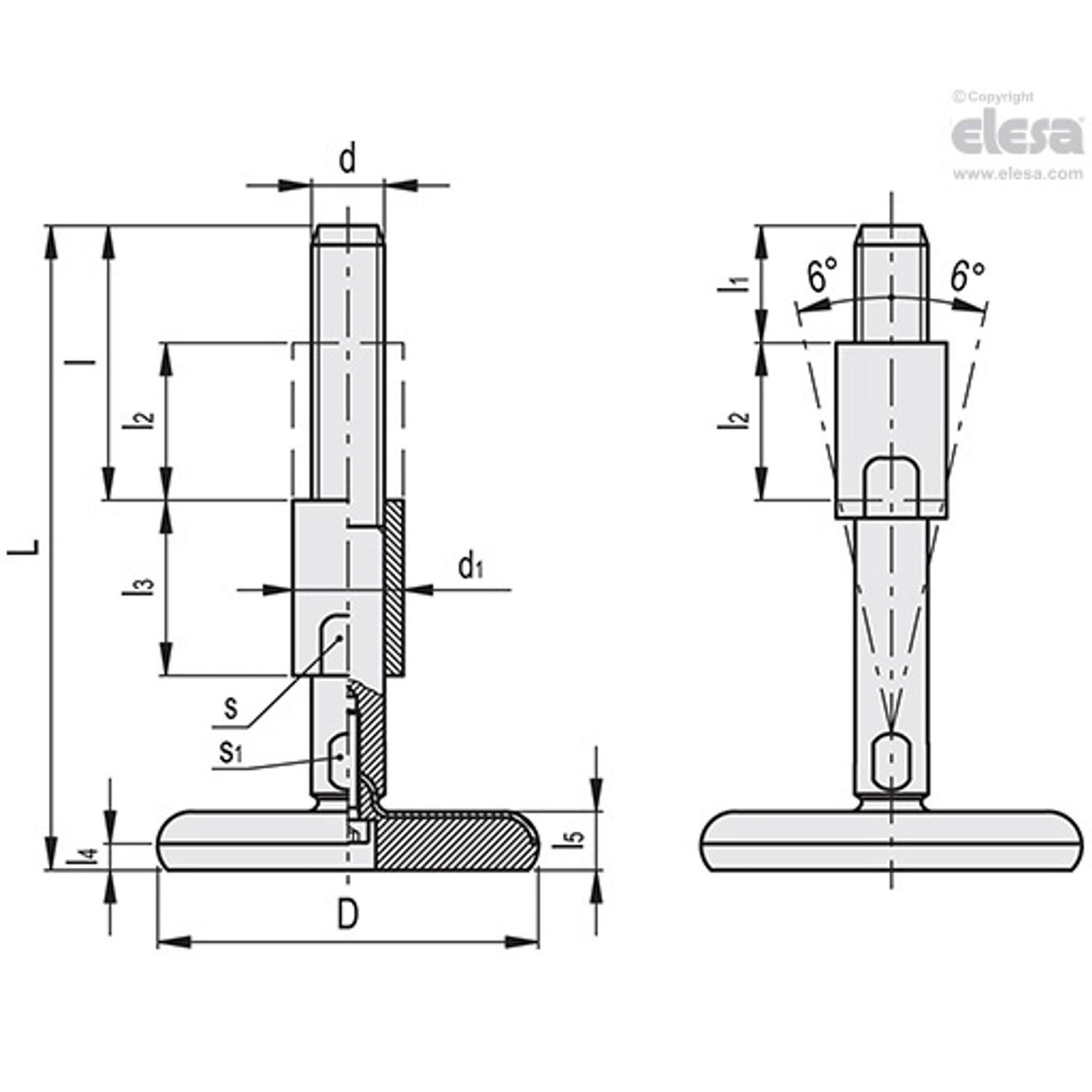

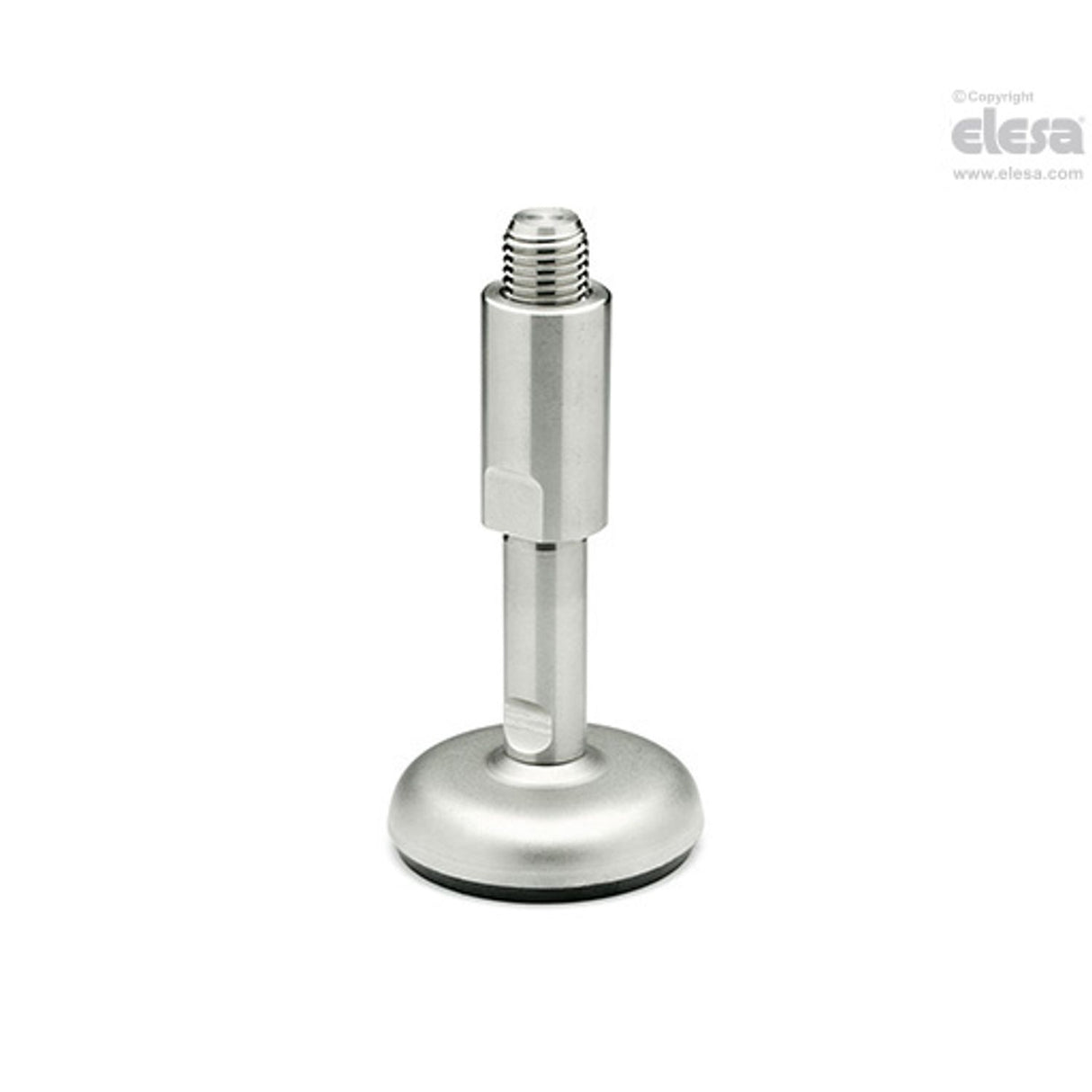

LMRS. Levelling feet, Stainless steel base and stem For product drawing and dimensions refer to pdf Item data sheet.
| D | 100 |
| l4 | 6 |
| Weight | 859g |
| d | M20 |
| l1 | 16 |
| l | 56 |
| s1 | 16 |
| l5 | 20 |
| L | 180 |
| l3 | 56 |
| d1 | 30 |
| Diameter | 100mm |
| s | 24 |
| Max. Static Load | 21000N |
| l2 | 40 |
| MFR Part No. | LMRS.100-SST-M20x180 |
