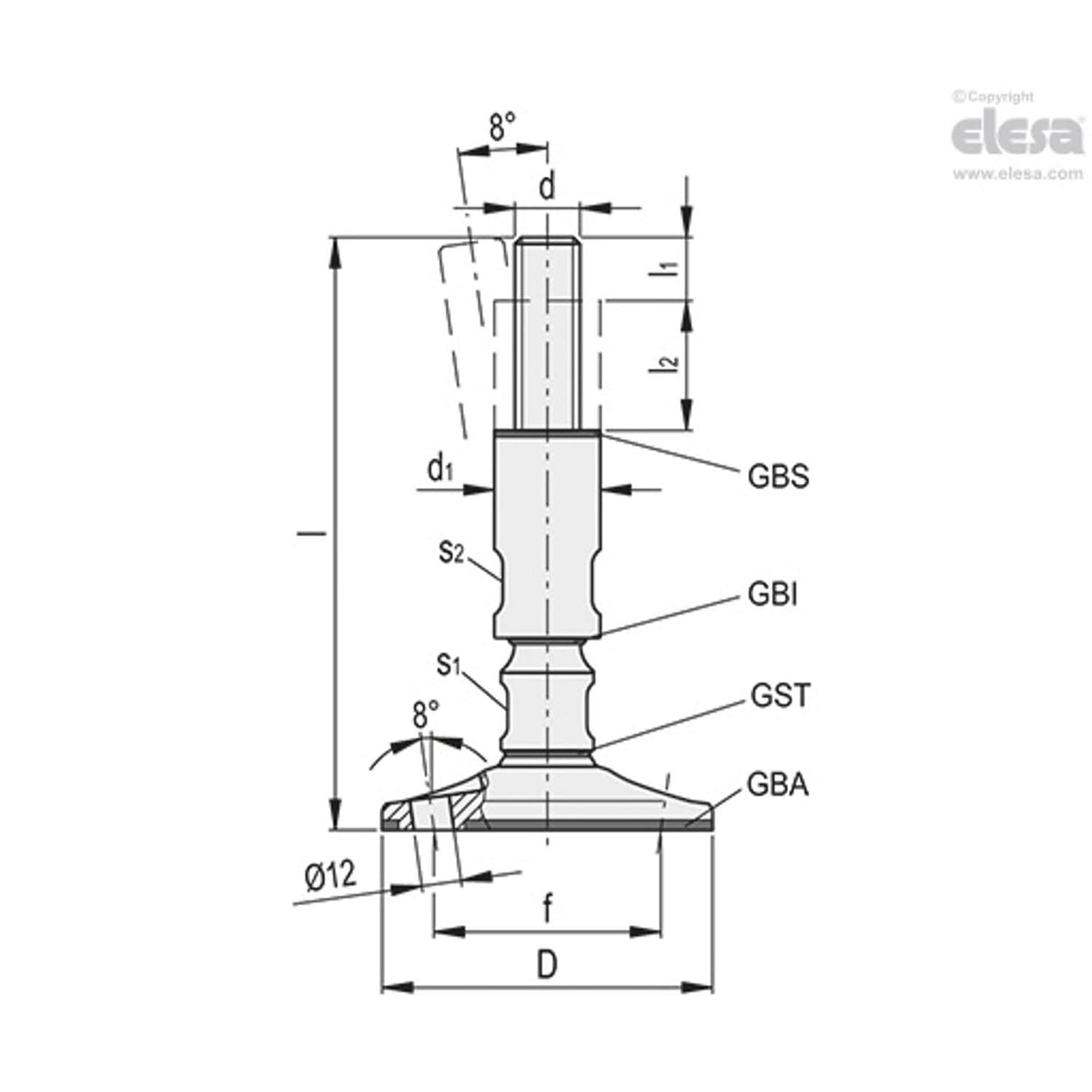

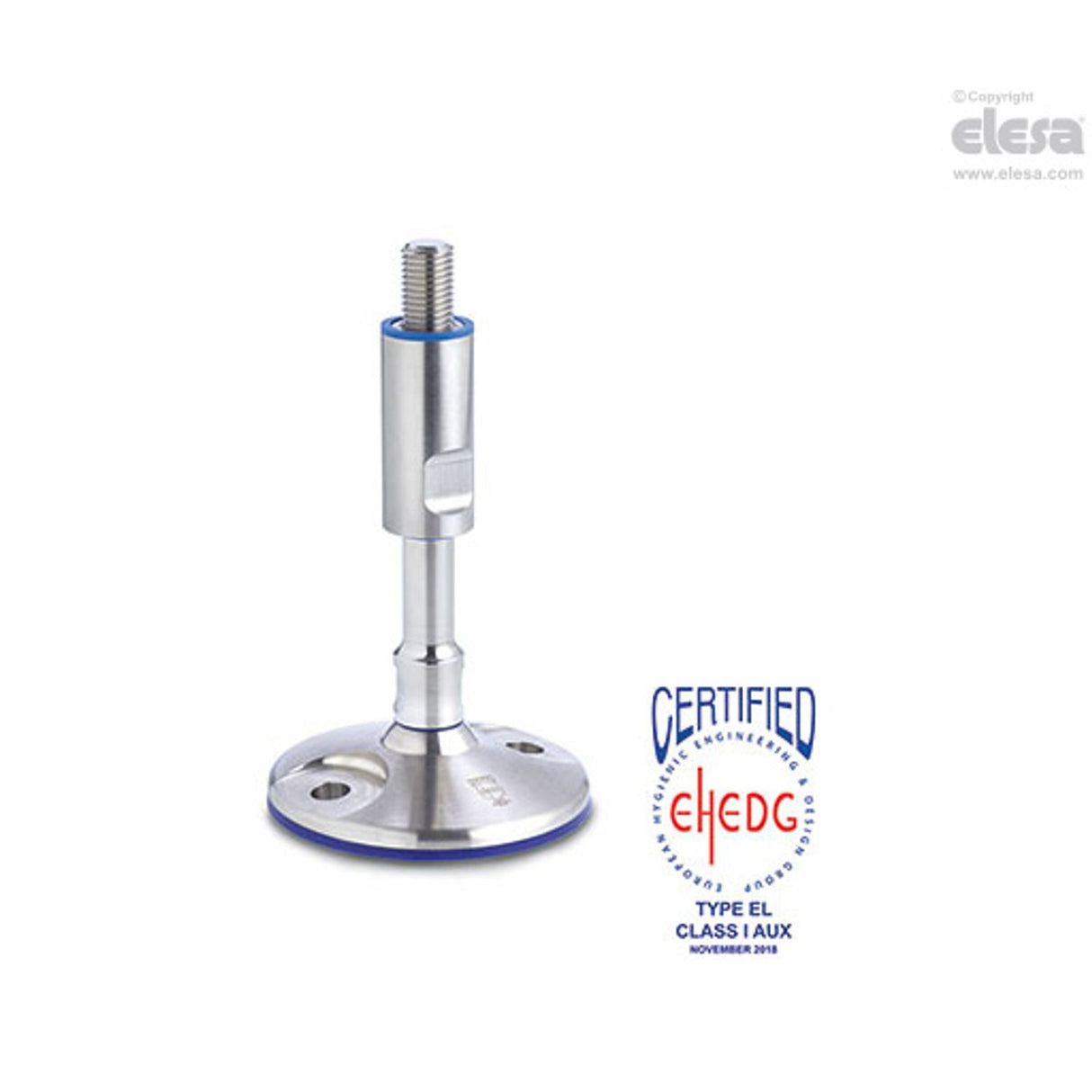

LM.F-HD-SST Levelling feet Hygienic Design, with holes for ground mounting, stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| d | M24 |
| Diameter | 100mm |
| MFR Part No. | LM.F-HD-100-SST-M24x235 |
| Static Load | 67000kN |
| f | 69 |
| D | 100 |
| d2 | 12 |
| l1 | 29 |
| s1 | 24 |
| l2 | 35 |
| Weight | 1651g |
| d1 | 36 |
| l | 235 |
| s2 | 30 |
