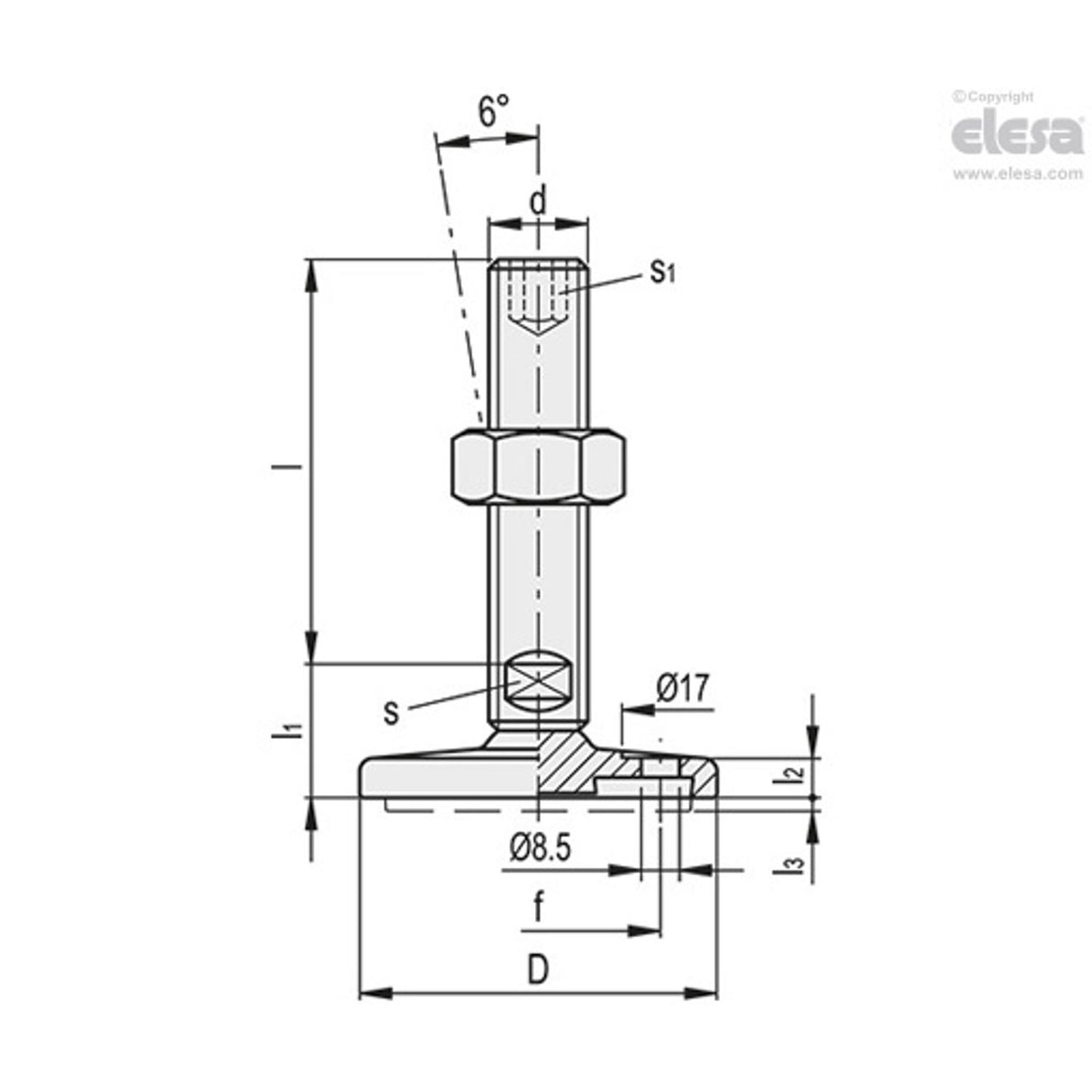

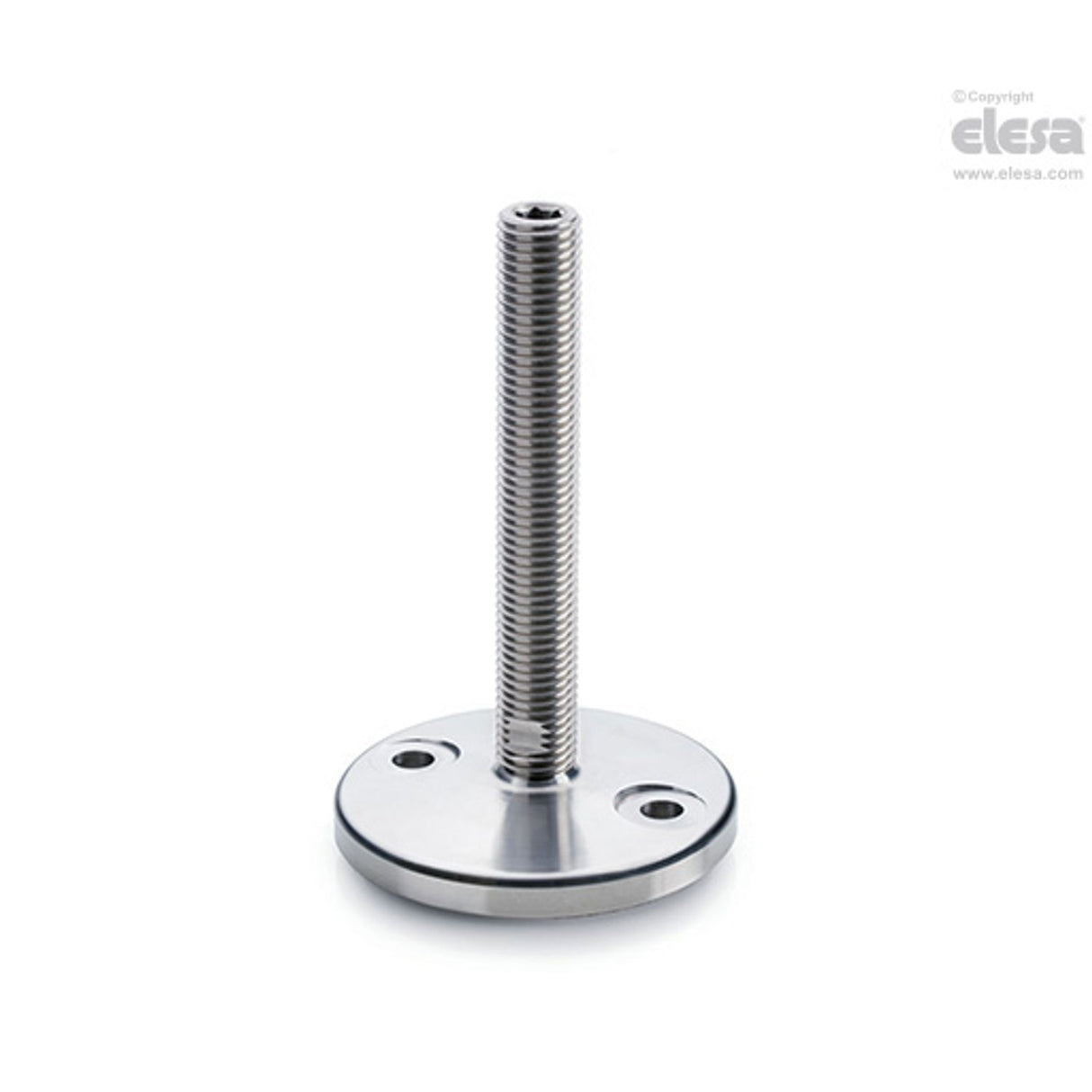

LMY.F Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem with hexagon socket For product drawing and dimensions refer to pdf Item data sheet.
| l3 | 2 |
| MFR Part No. | LMY.F-80-AS-SST-M20x125-HS |
| s | 15 |
| s1 | 10 |
| D | 80 |
| Diameter | 80mm |
| l1 | 27 |
| l2 | 8.5 |
| d | M20 |
| Static Load | 28000kN |
| l | 125 |
| f | 54.5 |
