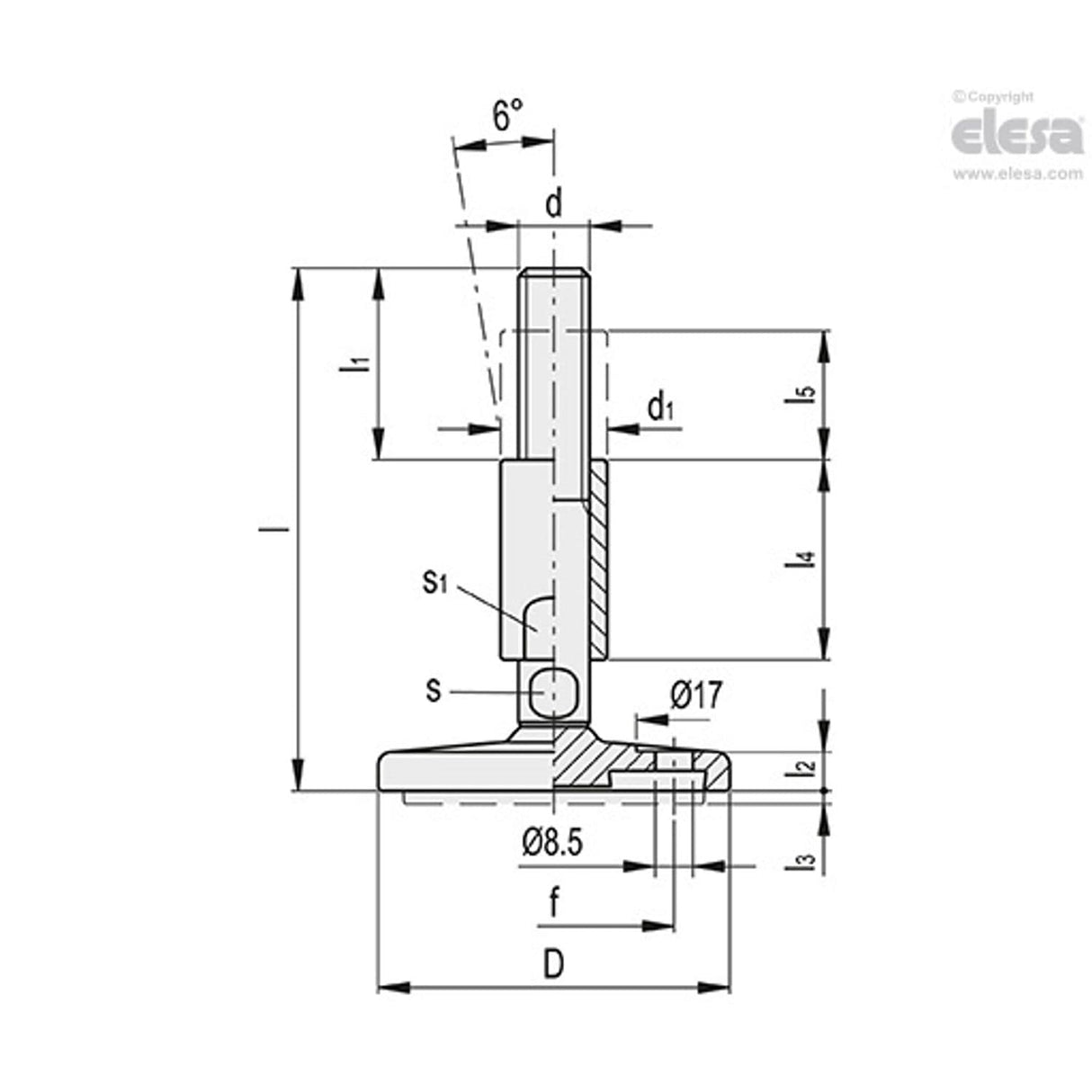

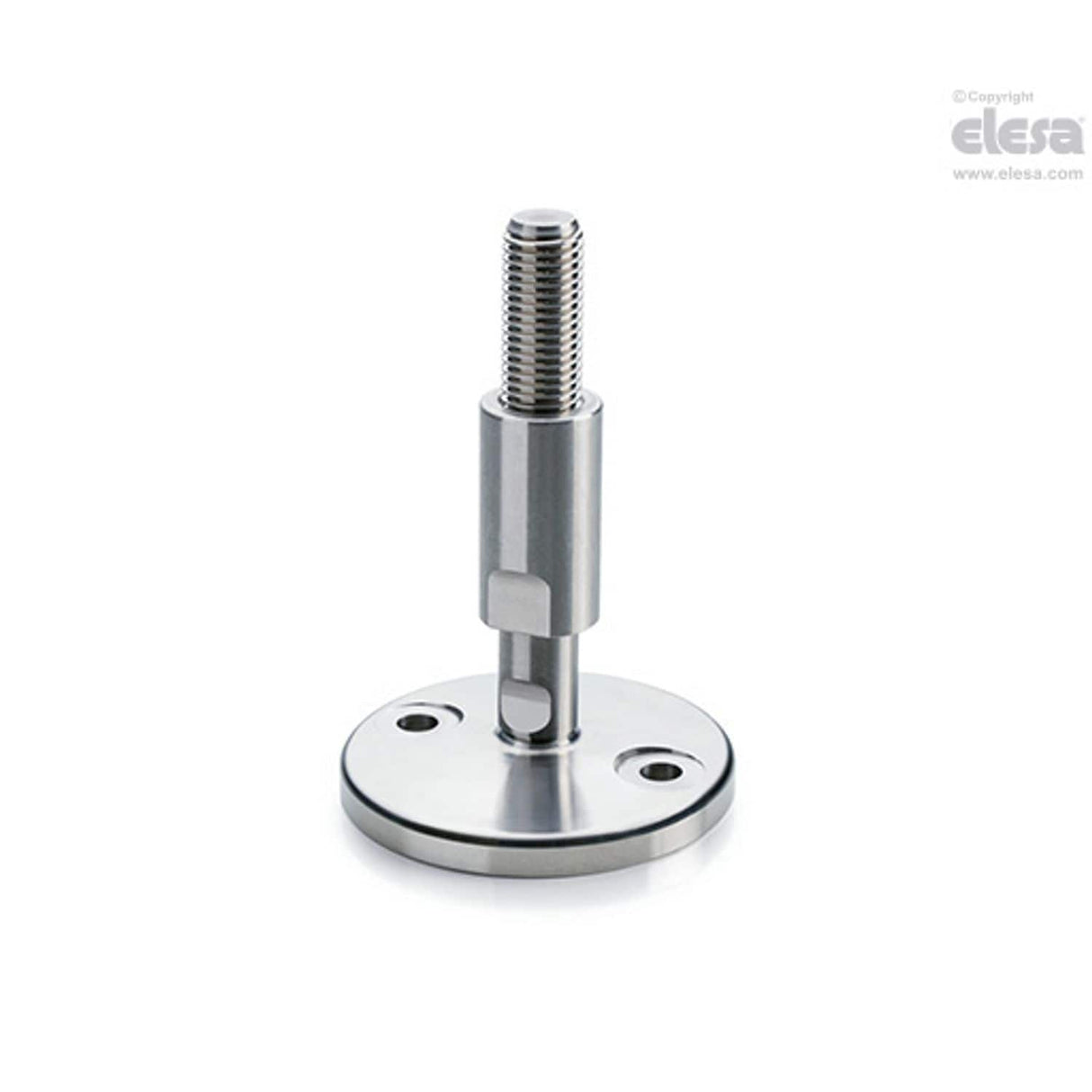

LMY.F Levelling feet for ground mounting, Stainless steel base and stem, Threaded stem with centre bushing For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 80mm |
| f | 54.5 |
| d | M16 |
| l5 | 29 |
| l1 | 45 |
| MFR Part No. | LMY.F-80-AS-SST-M16x143-HV |
| s1 | 20 |
| l | 143 |
| l4 | 45 |
| Static Load | 25000kN |
| d1 | 24 |
| D | 80 |
| l2 | 8.5 |
| l3 | 2 |
| s | 12 |
