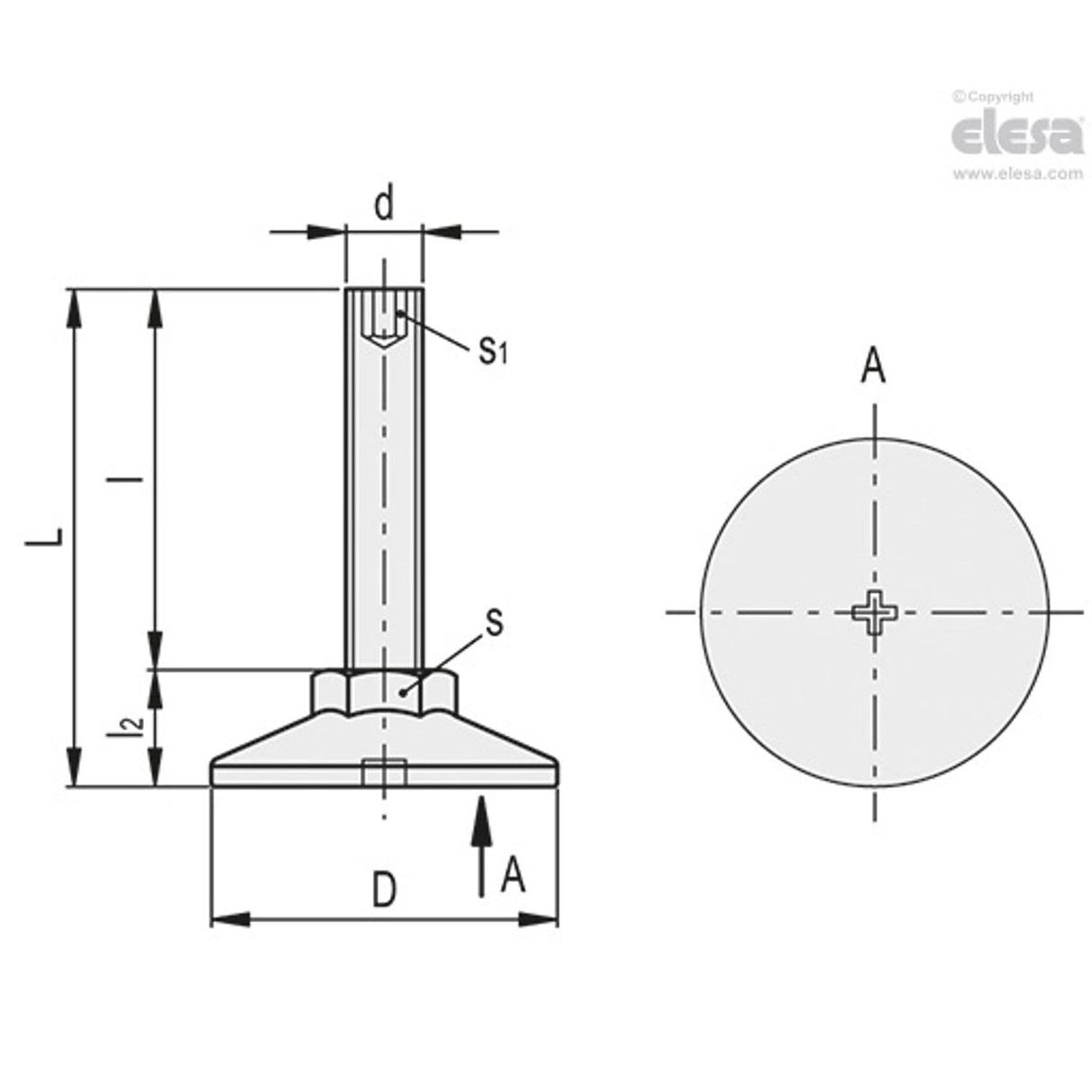

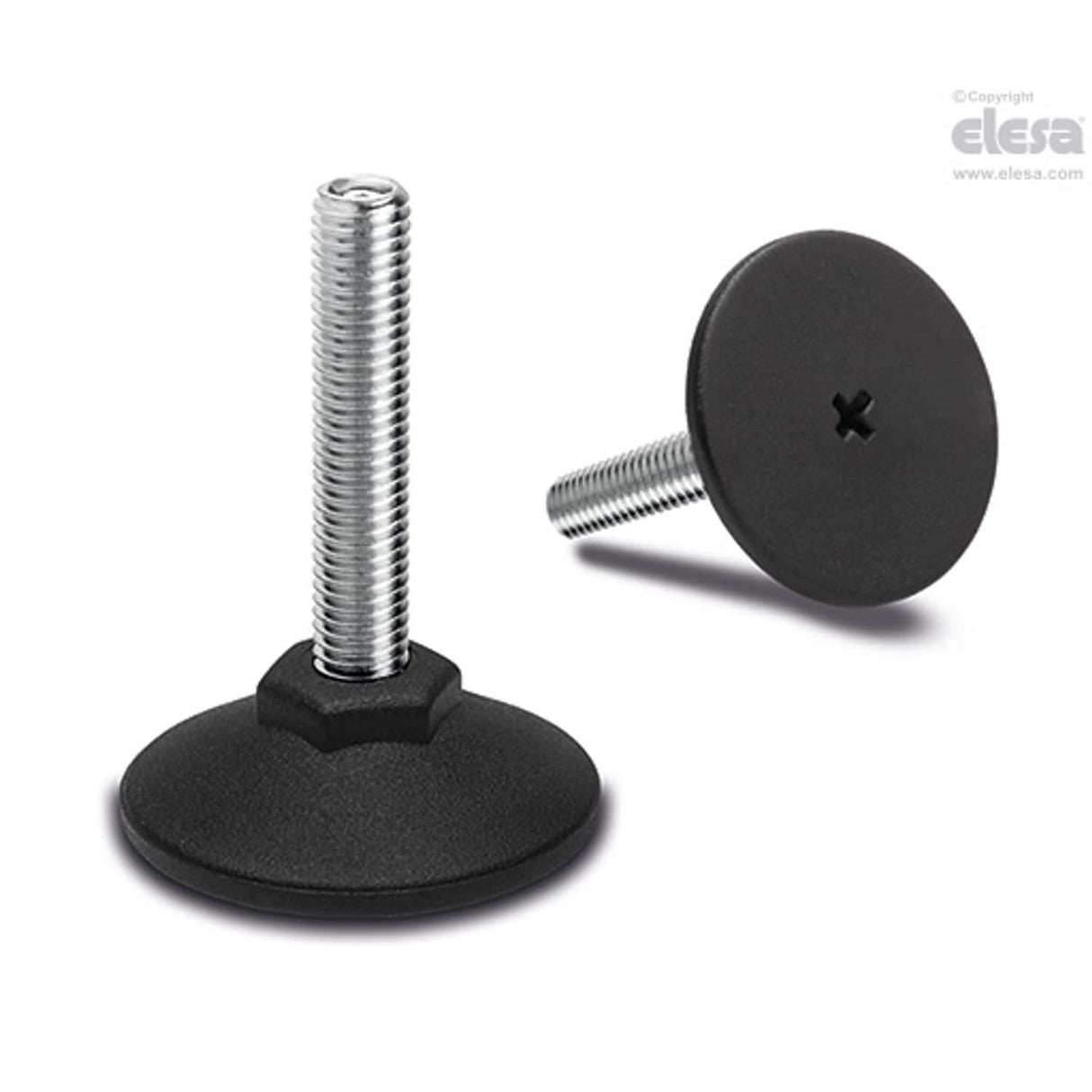

LX-HS Adjustable feet, Technopolymer base, steel stem with hexagon socket at the upper end For product drawing and dimensions refer to pdf Item data sheet.
| D | 40 |
| L | 44.5 |
| l | 31 |
| Weight | 22g |
| Max. Static Load | 2500N |
| s1 | 4 |
| d | M8 |
| Diameter | 40mm |
| MFR Part No. | LX.40-SW17-M8x30-HS |
| s | 17 |
| l2 | 13.5 |
