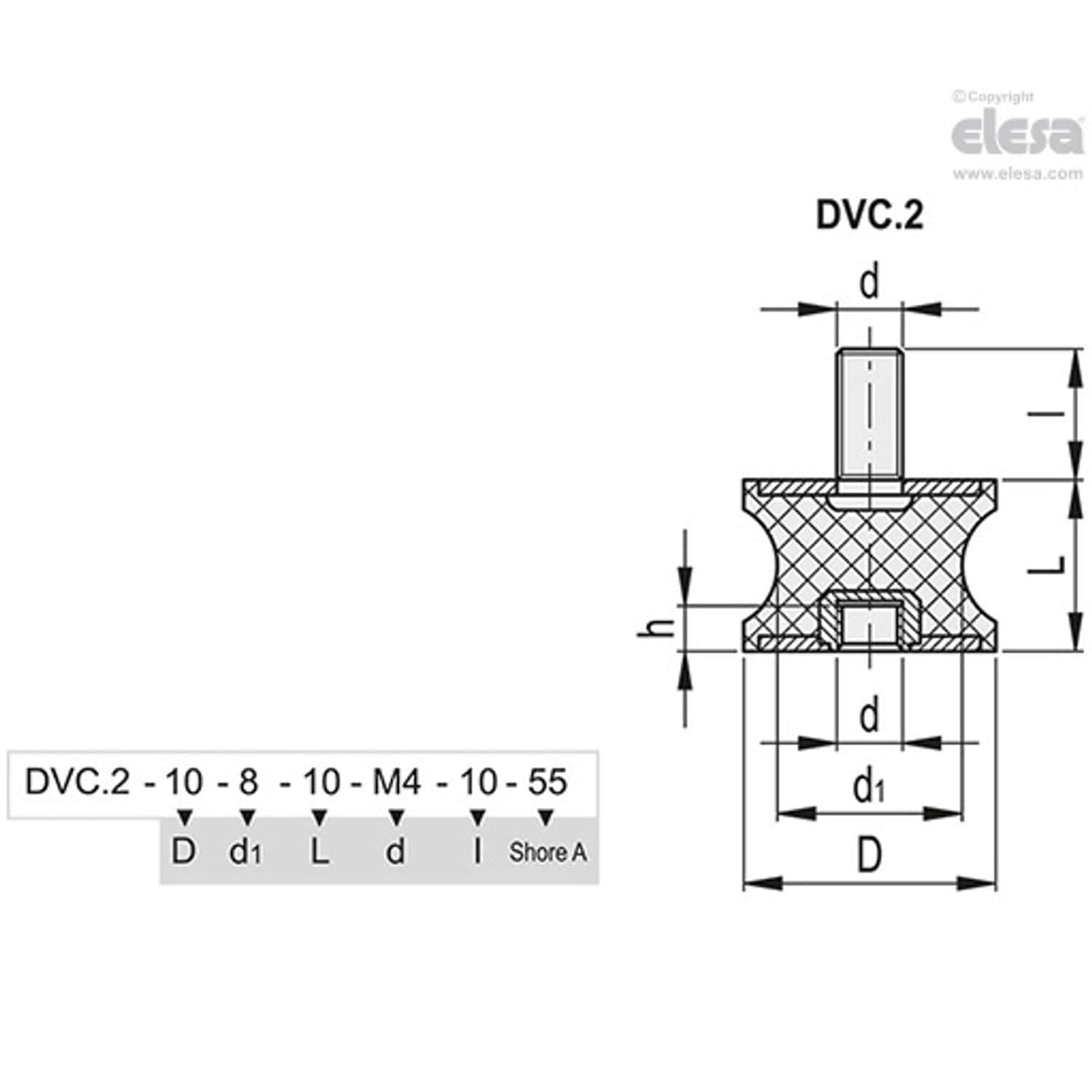

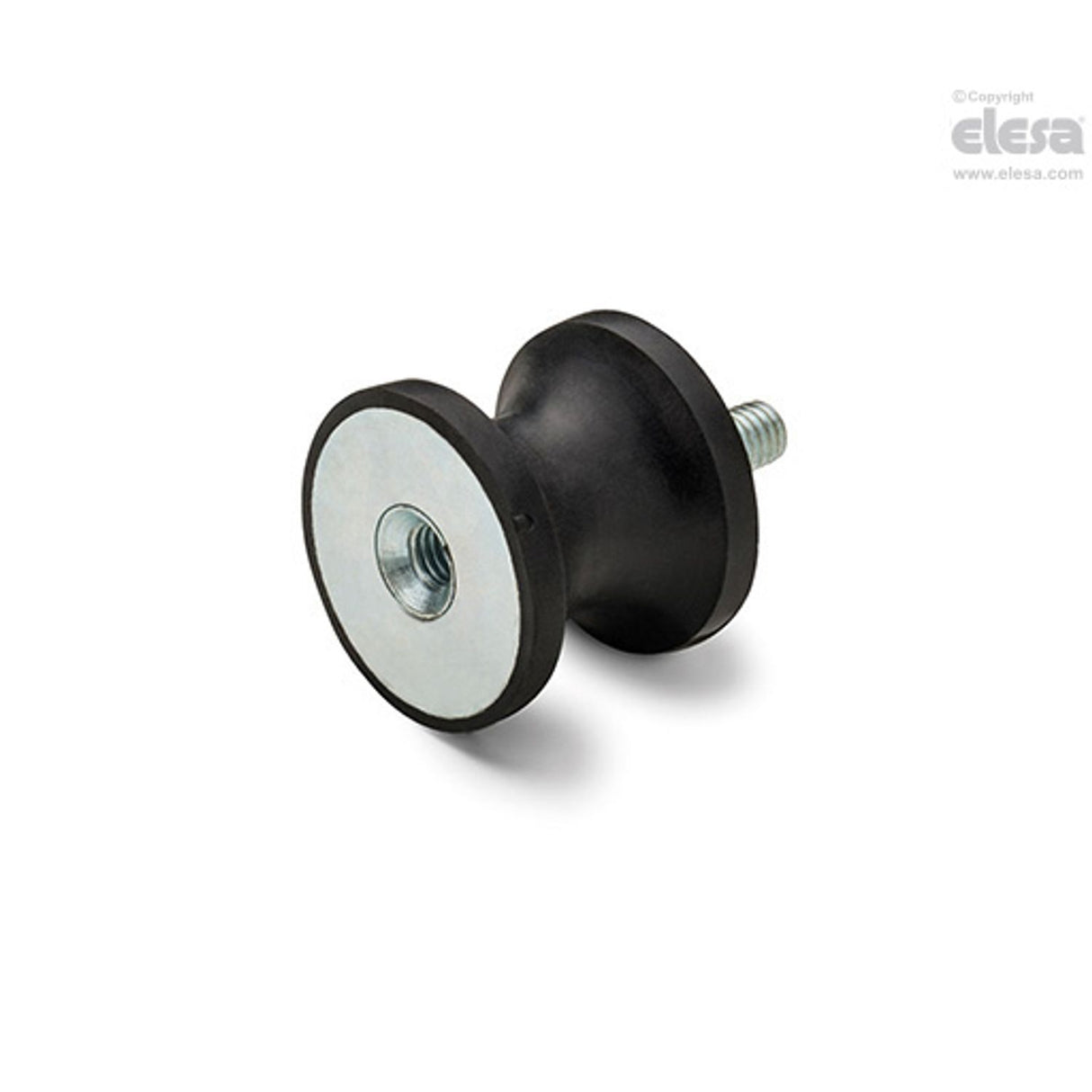

DVC.1 - DVC.2 - DVC.3 Rubber buffers, Rubber and steel or stainless steel, Threaded hole and threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| d | M10 |
| D | 57 |
| Max. Deflection | 11.25mm |
| d1 | 25 |
| l | 28 |
| h | 10 |
| L | 45 |
| Max Load | 1313N |
| MFR Part No. | DVC.2-57-25-45-SST-M10-28-55 |
| Diameter | 57mm |
