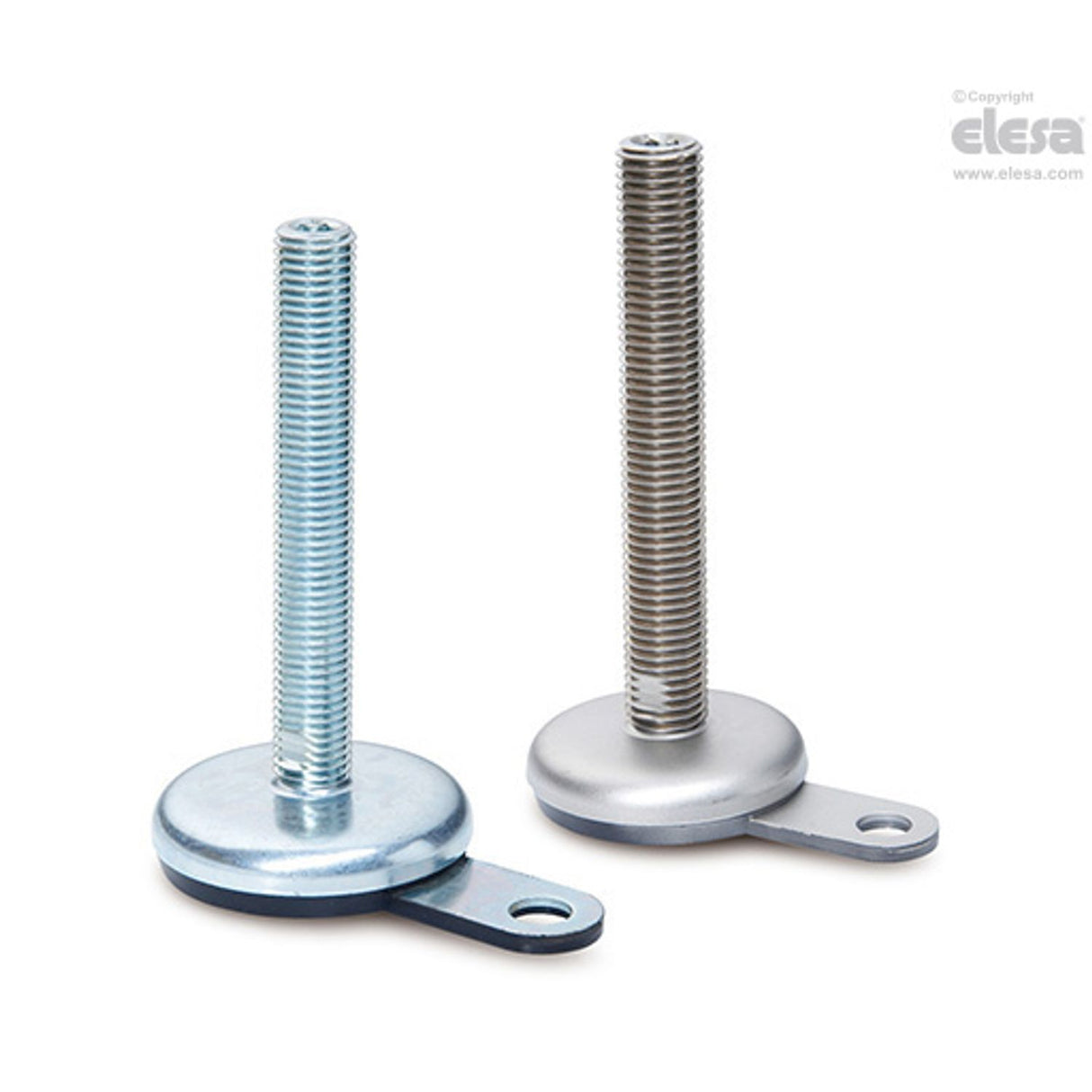

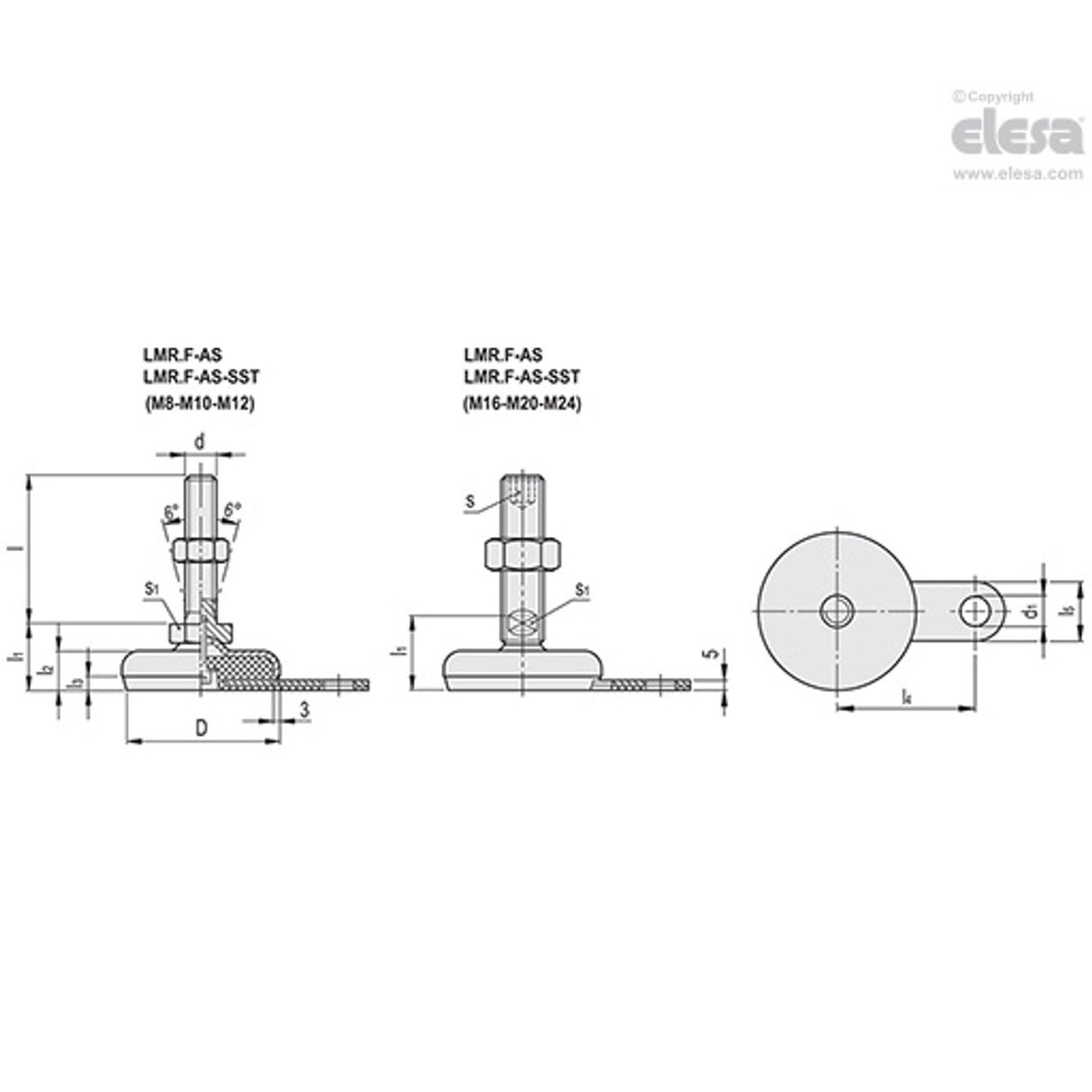

LMR.F Levelling feet for ground mounting, Steel or stainless steel base and stem For product drawing and dimensions refer to pdf Item data sheet.
| l | 100 |
| MFR Part No. | LMR.F-100-AS-M20x100 |
| Diameter | 100mm |
| d | M20 |
| s1 | 15 |
| l4 | 80 |
| D | 100 |
| l2 | 21 |
| l1 | 36 |
| Max. Static Load | 11000N |
| l5 | 30 |
| s | 10 |
| l3 | 7 |
| d1 | 15 |
| Weight | 697g |
