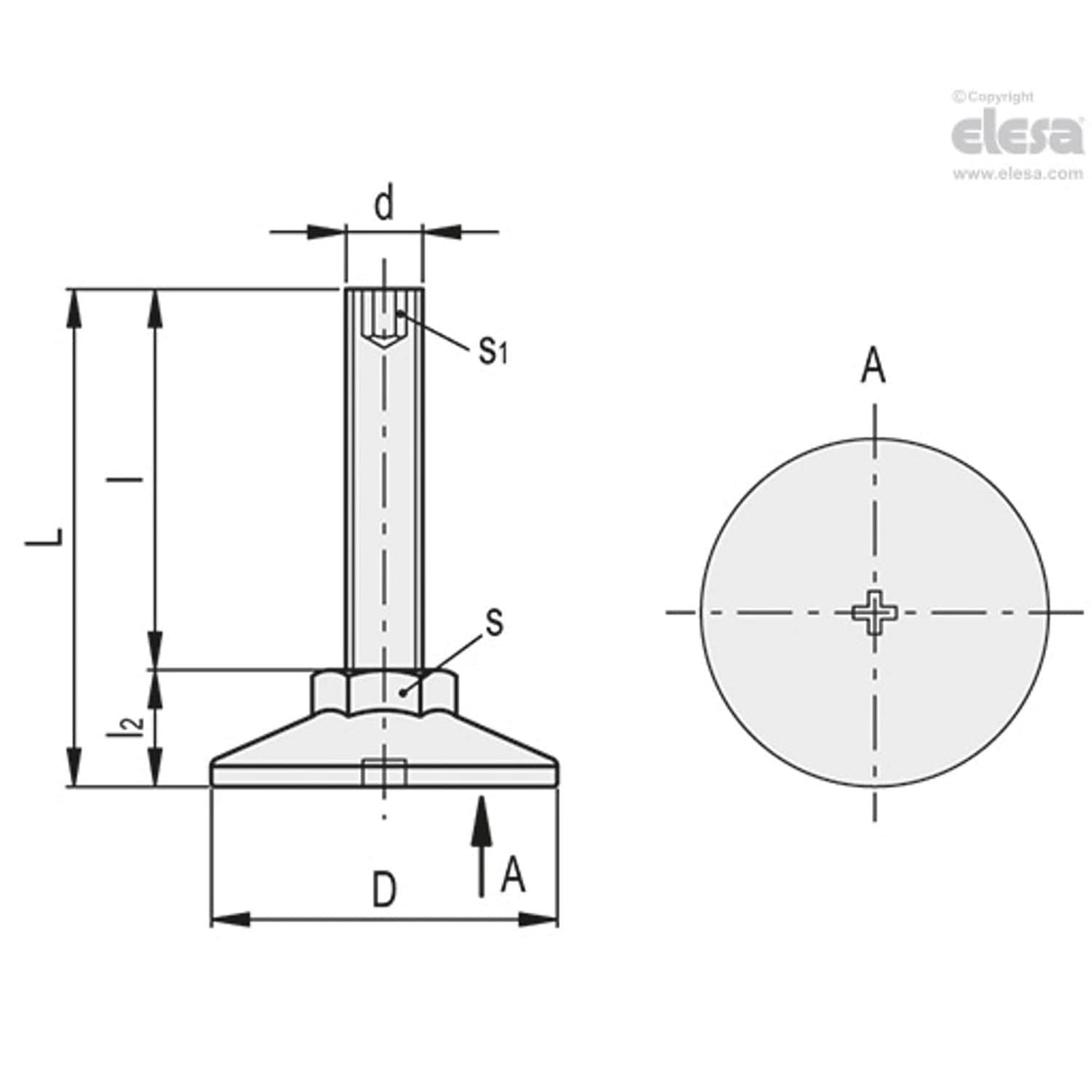

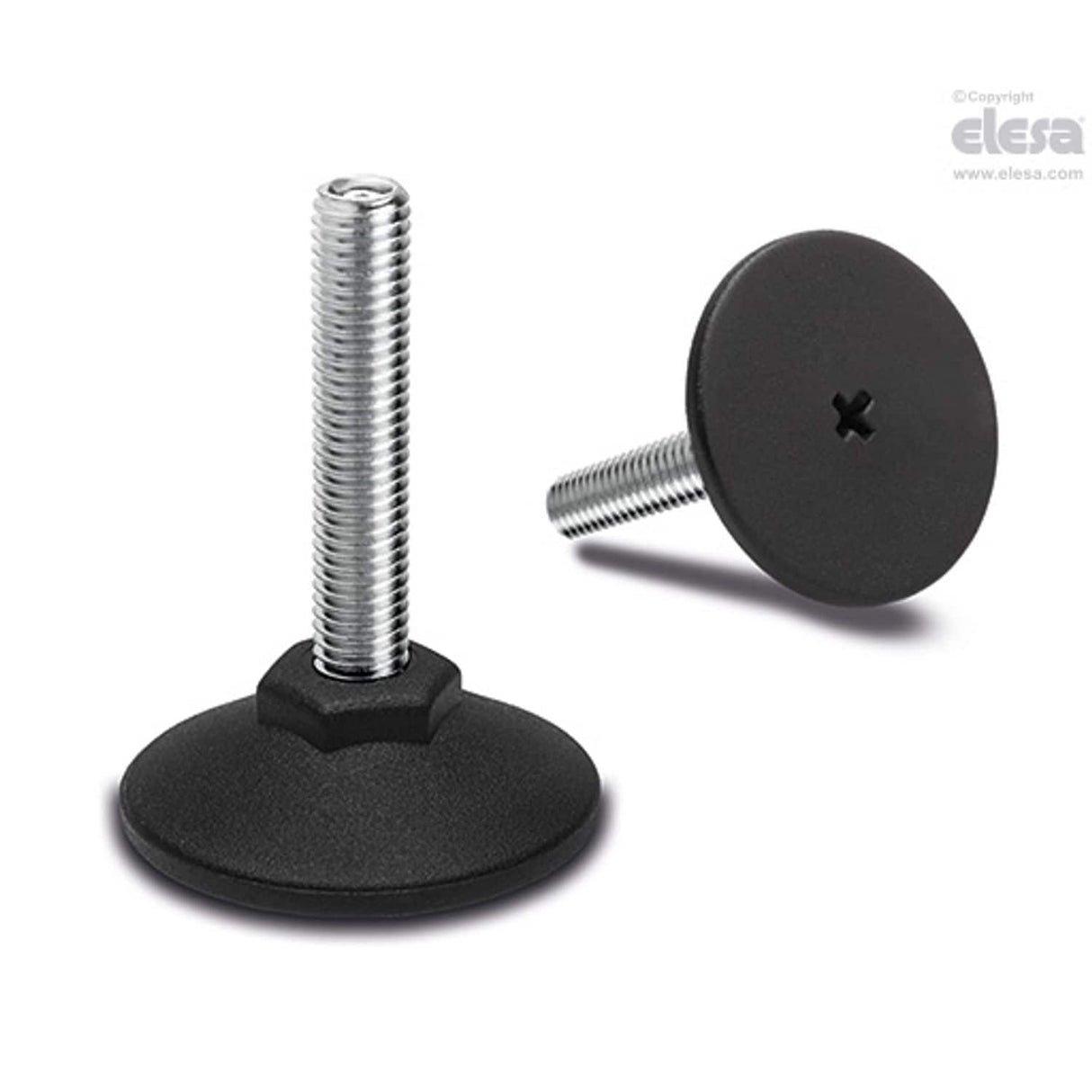

LX-HS Adjustable feet, Technopolymer base, steel stem with hexagon socket at the upper end For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 12 |
| Diameter | 30mm |
| s | 17 |
| D | 30 |
| Max. Static Load | 3000N |
| MFR Part No. | LX.30-SW17-M10x74-HS |
| s1 | 5 |
| Weight | 32g |
| L | 86 |
| d | M10 |
| l | 74 |
