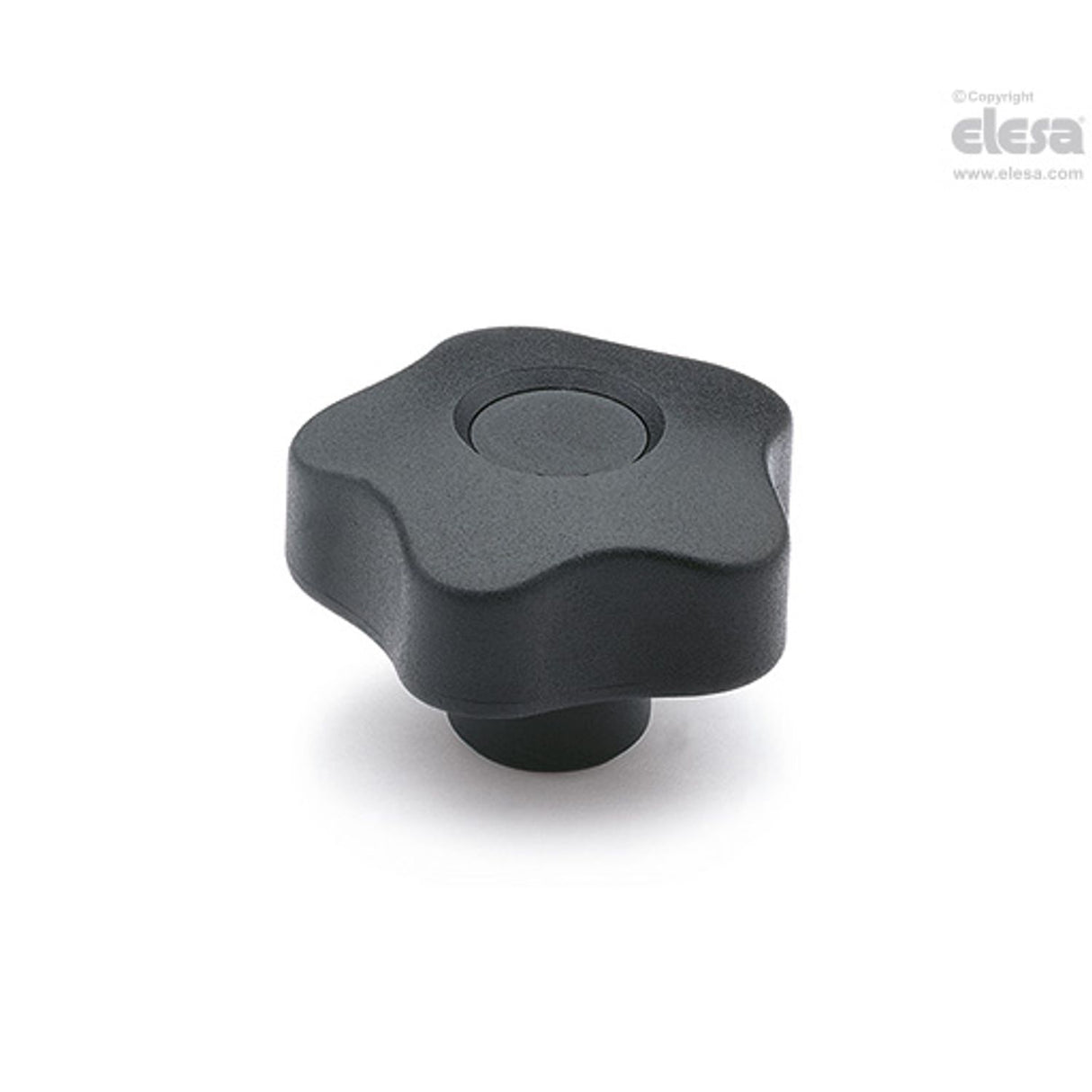

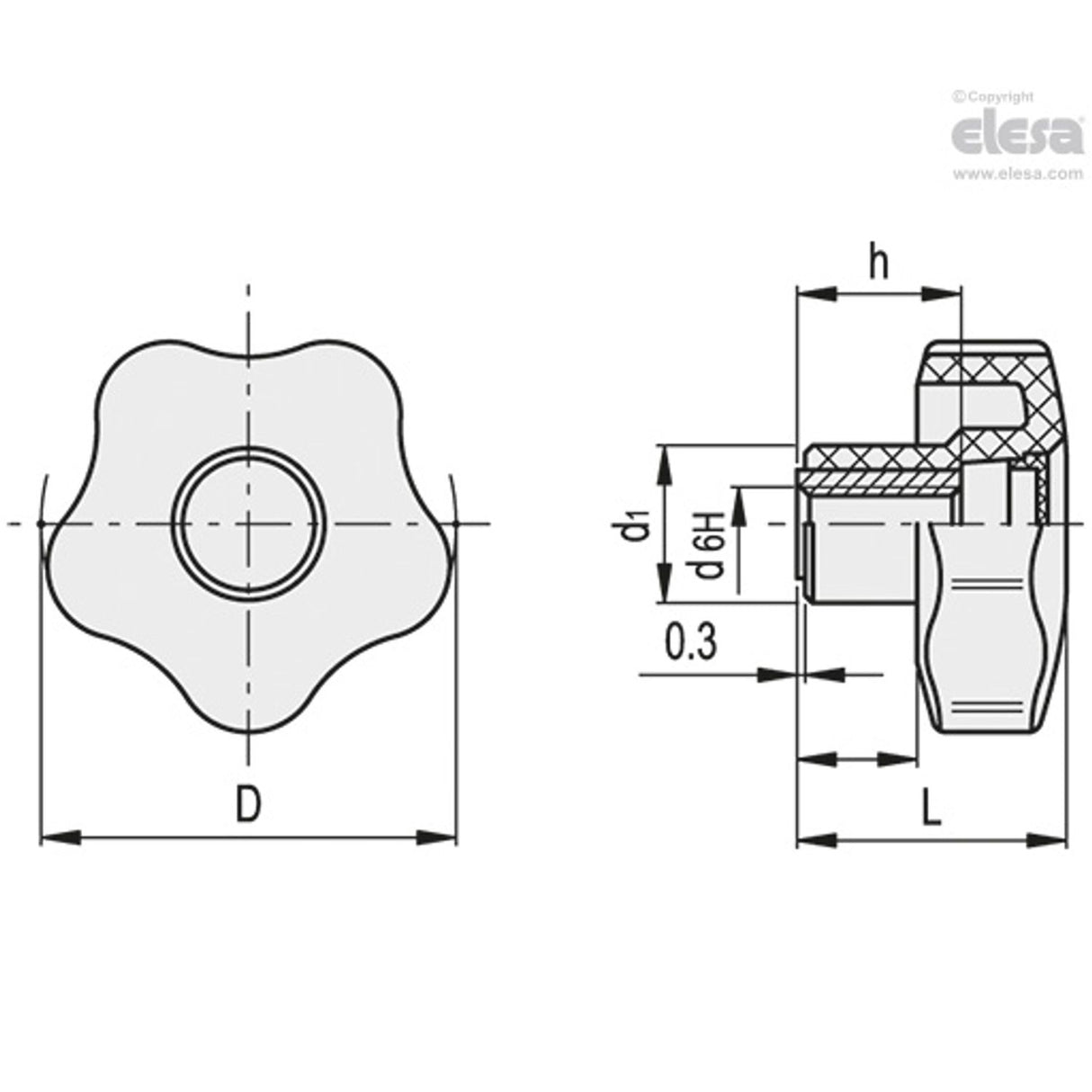

VCT. Lobe knobs, Technopolymer, Zinc-plated steel boss, threaded hole, with cap For product drawing and dimensions refer to pdf Item data sheet.
| h | 12 |
| MFR Part No. | VCT.32 AZ-M6-C9 |
| d1 | 15 |
| Diameter | 32mm |
| C# | 10Nm |
| l2 | 10 |
| Colour | Black |
| L | 23 |
| d(6H) | M6 |
| D | 32 |
| Weight | 12g |
