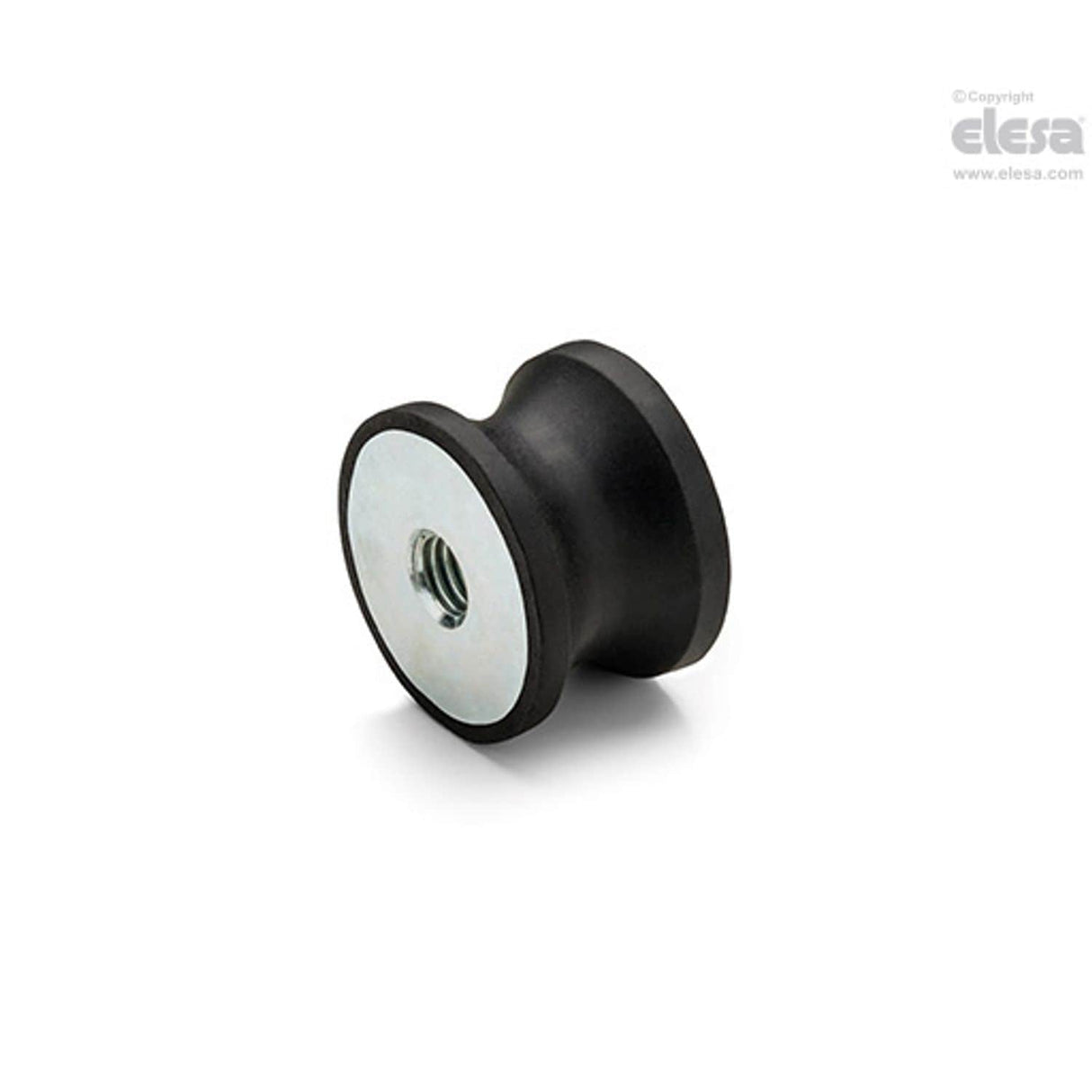

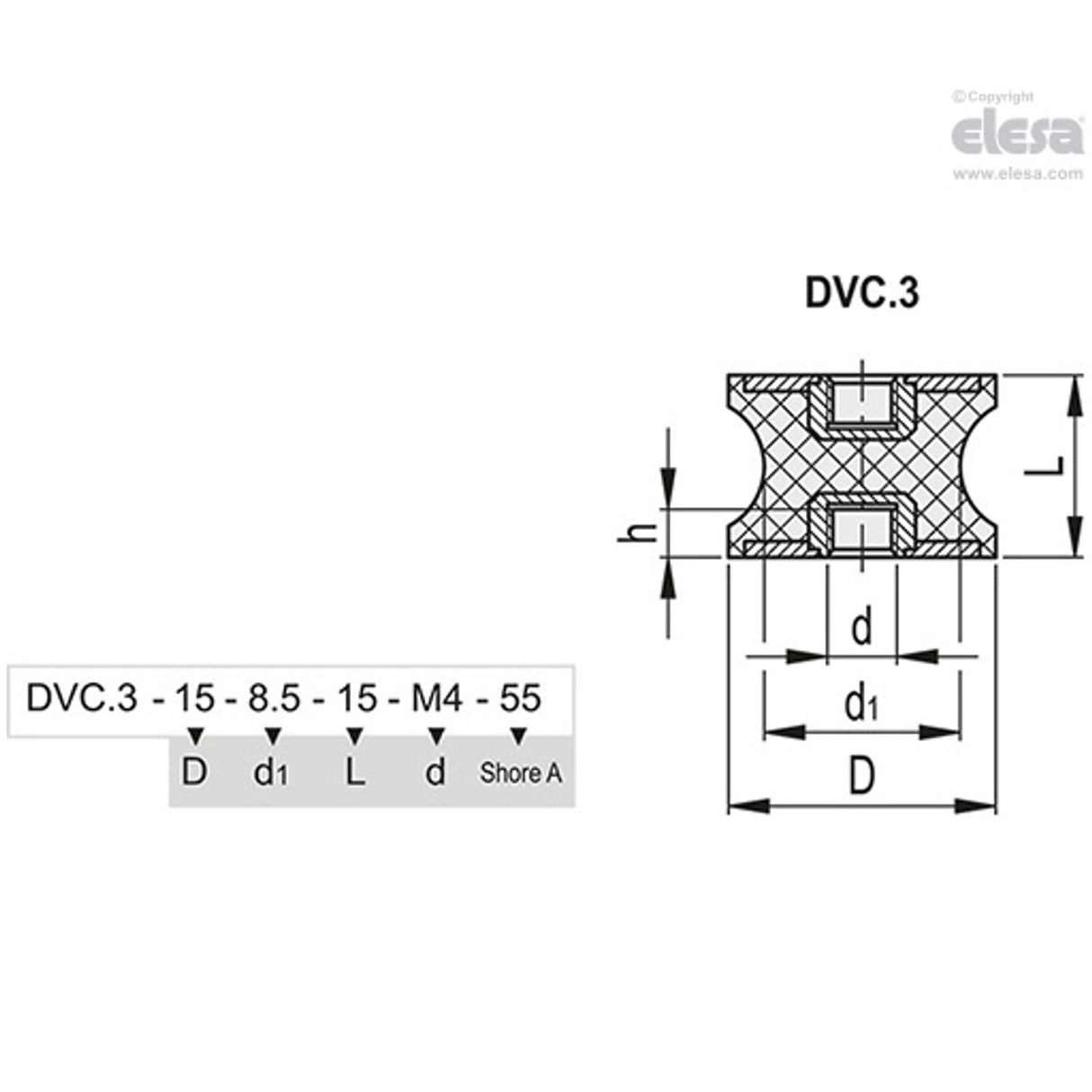

DVC.1 - DVC.2 - DVC.3 Rubber buffers, Rubber and steel or stainless steel, Threaded holes For product drawing and dimensions refer to pdf Item data sheet.
| d | M6 |
| Diameter | 20mm |
| h | 6 |
| Max. Deflection | 7.5mm |
| D | 20 |
| Max Load | 261N |
| L | 30 |
| d1 | 12 |
| MFR Part No. | DVC.3-20-12-30-M6-55 |
