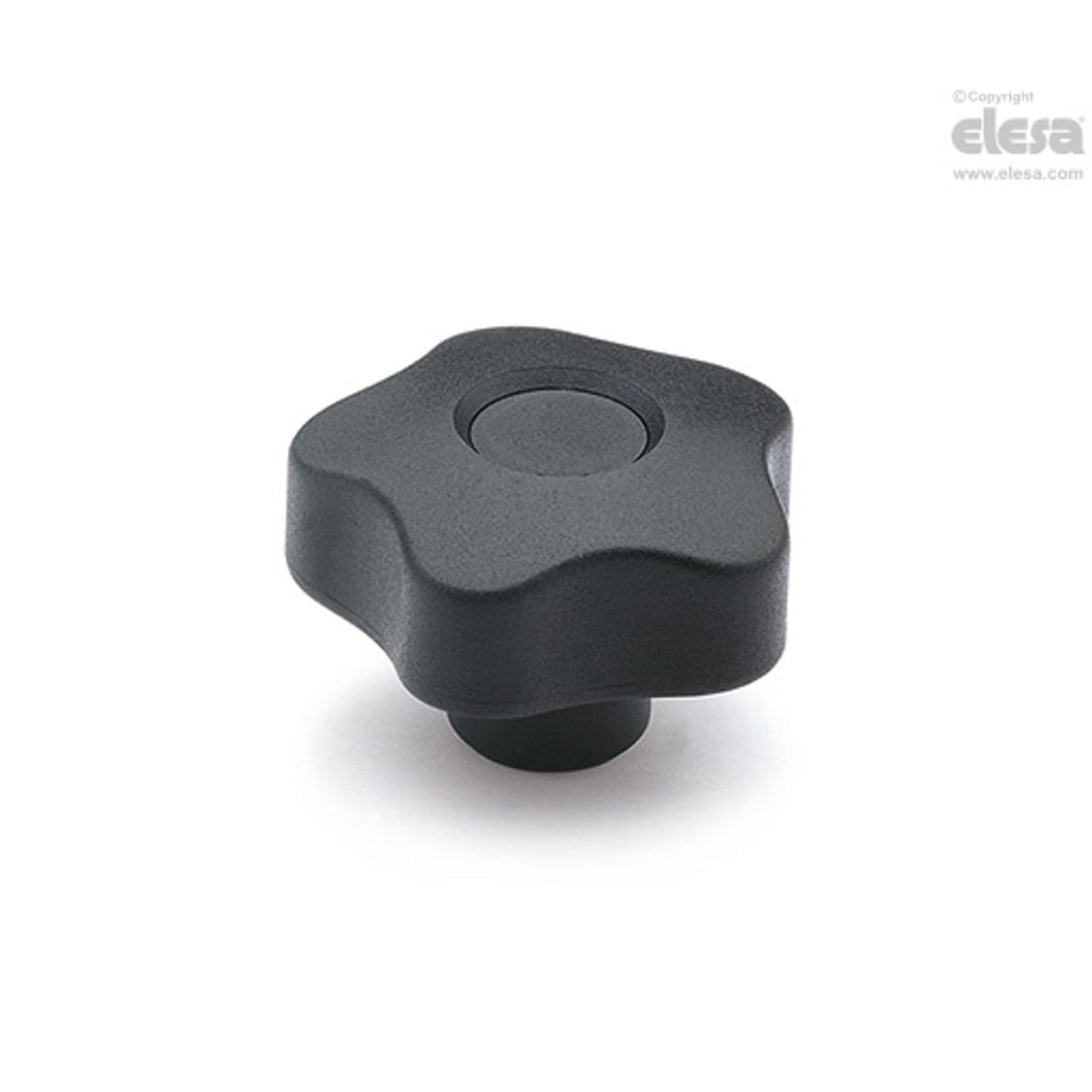

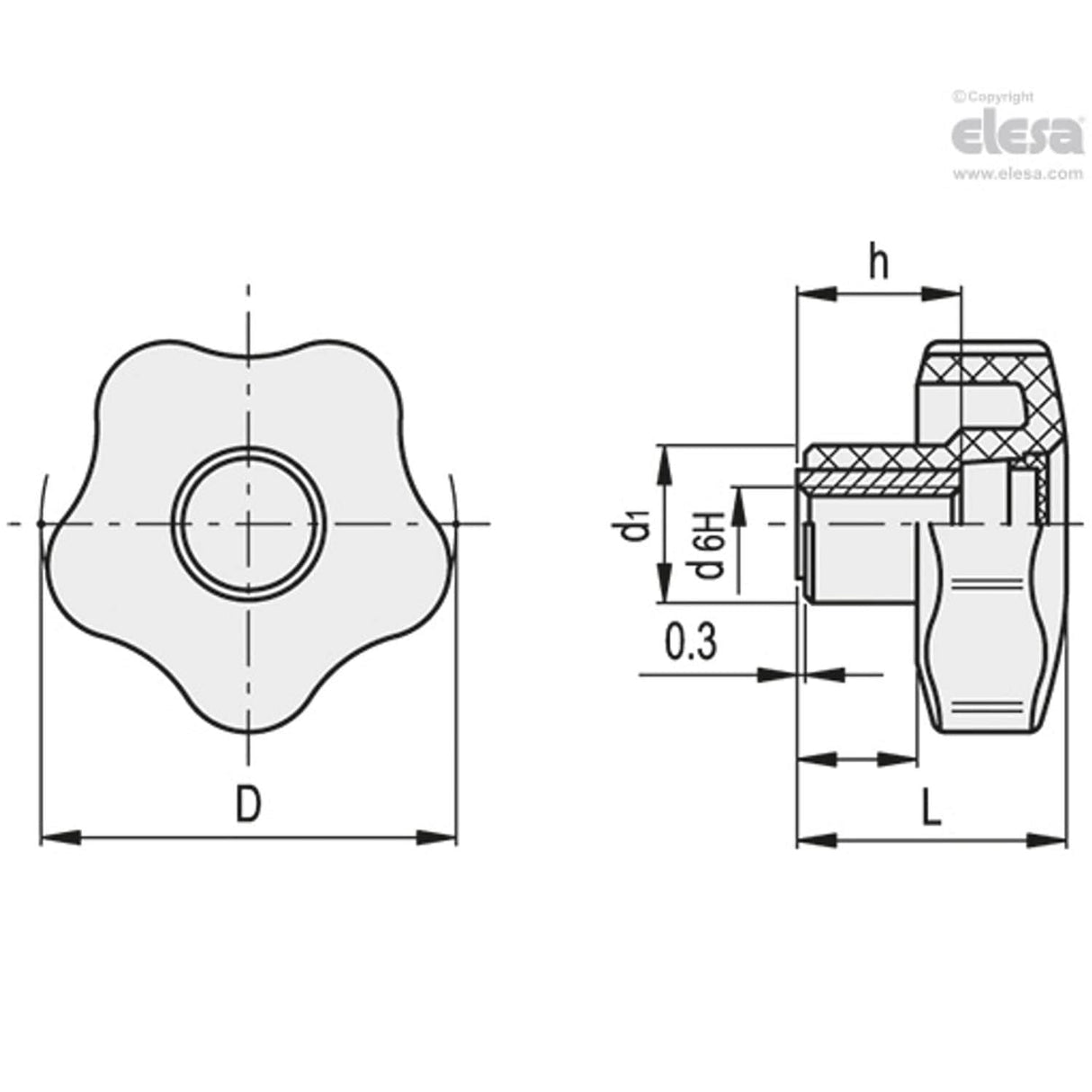

VCT. Lobe knobs, Technopolymer, Zinc-plated steel boss, threaded hole, with cap For product drawing and dimensions refer to pdf Item data sheet.
| h | 20 |
| D | 50 |
| MFR Part No. | VCT.50 AZ-M10-C9 |
| Weight | 31g |
| d(6H) | M10 |
| l2 | 14 |
| L | 32 |
| Diameter | 50mm |
| C# | 27Nm |
| d1 | 19 |
| Colour | Black |
