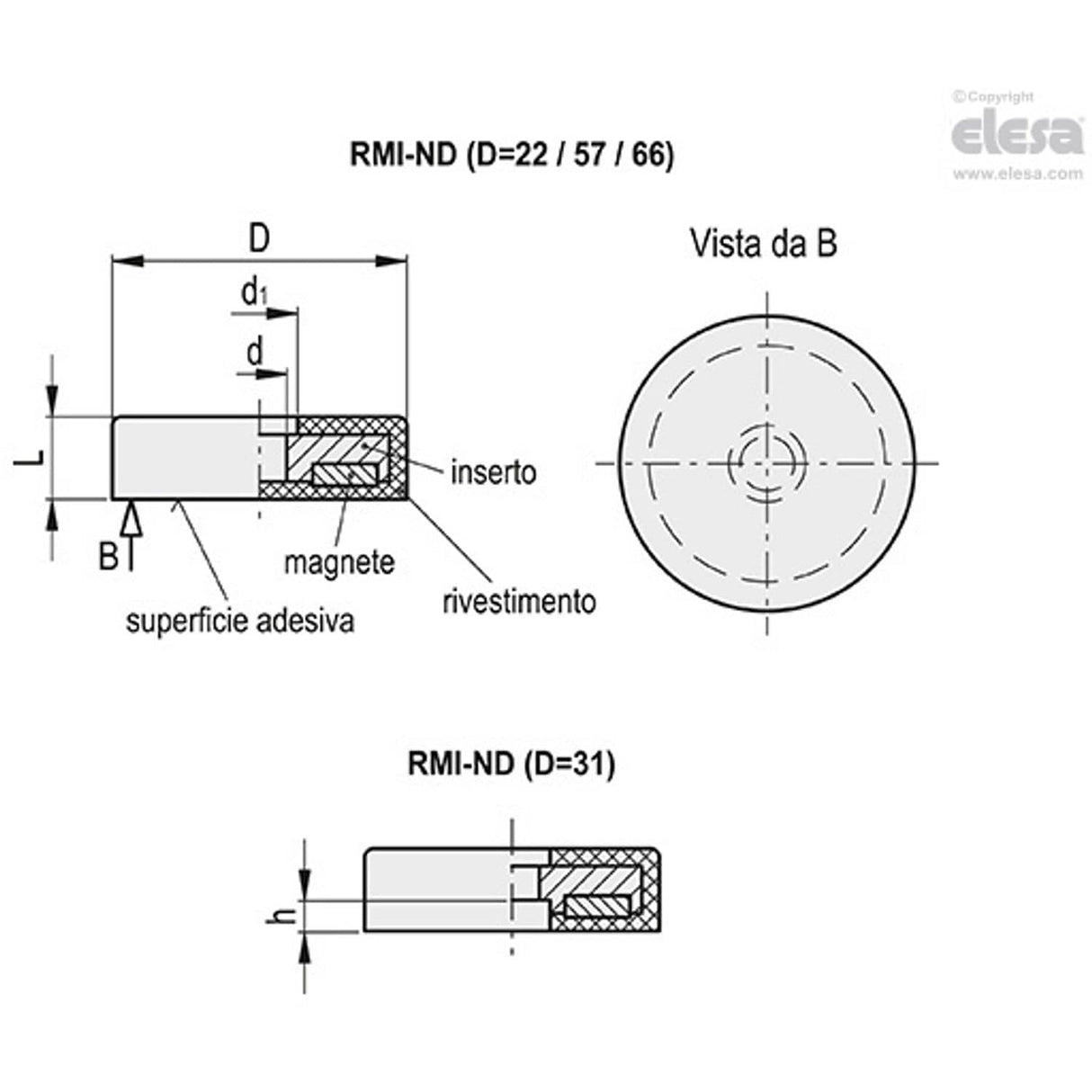

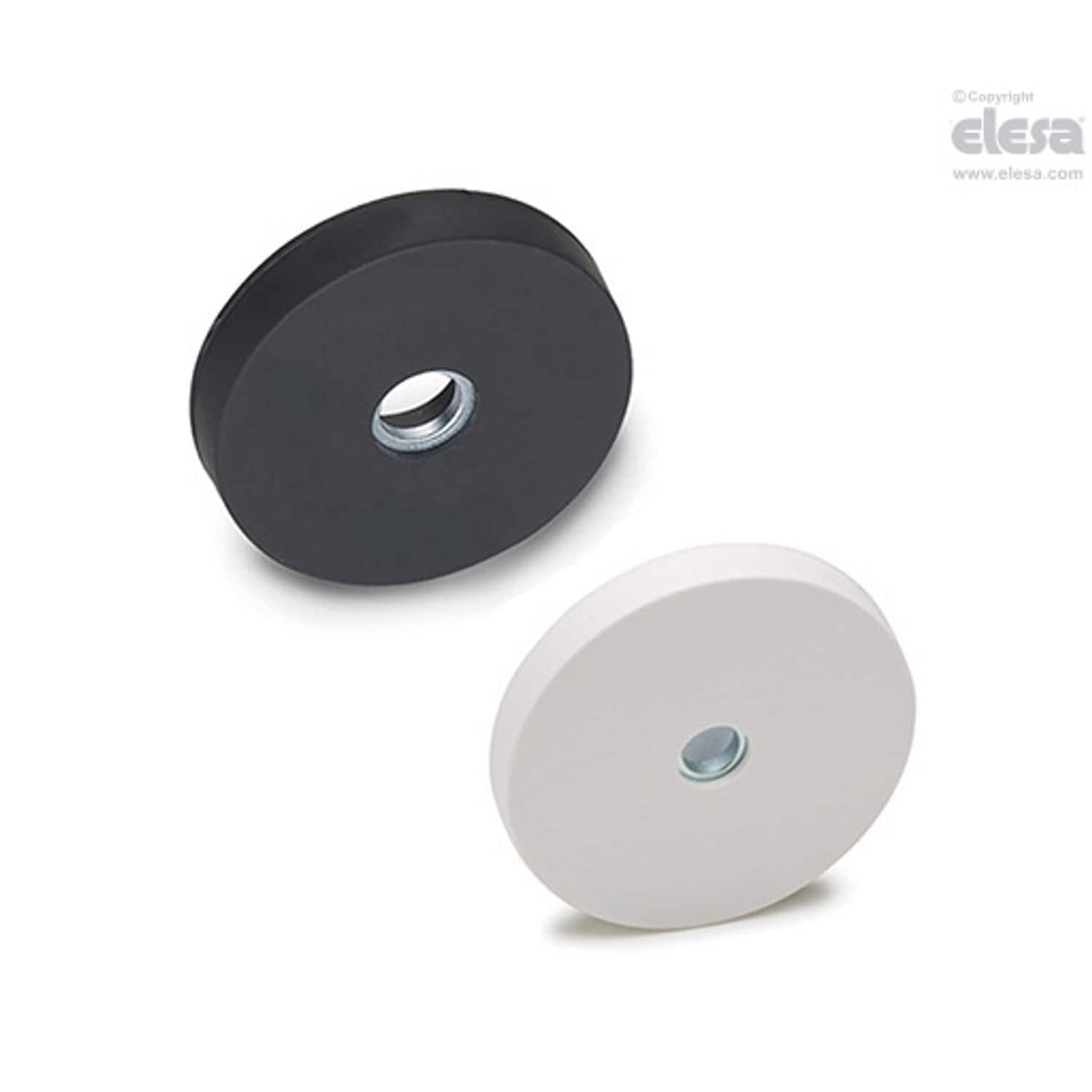

RMG - RMI Flat retaining magnets, threaded or plain pass-through hole, Plain hole For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 18mm |
| Weight | 5g |
| h | 3 |
| d | 3 |
| d1 | 8 |
| Nominal Adhesive Force | 25N |
| L | 6 |
| D | 18 |
| MFR Part No. | RMI-ND-18-WT |
