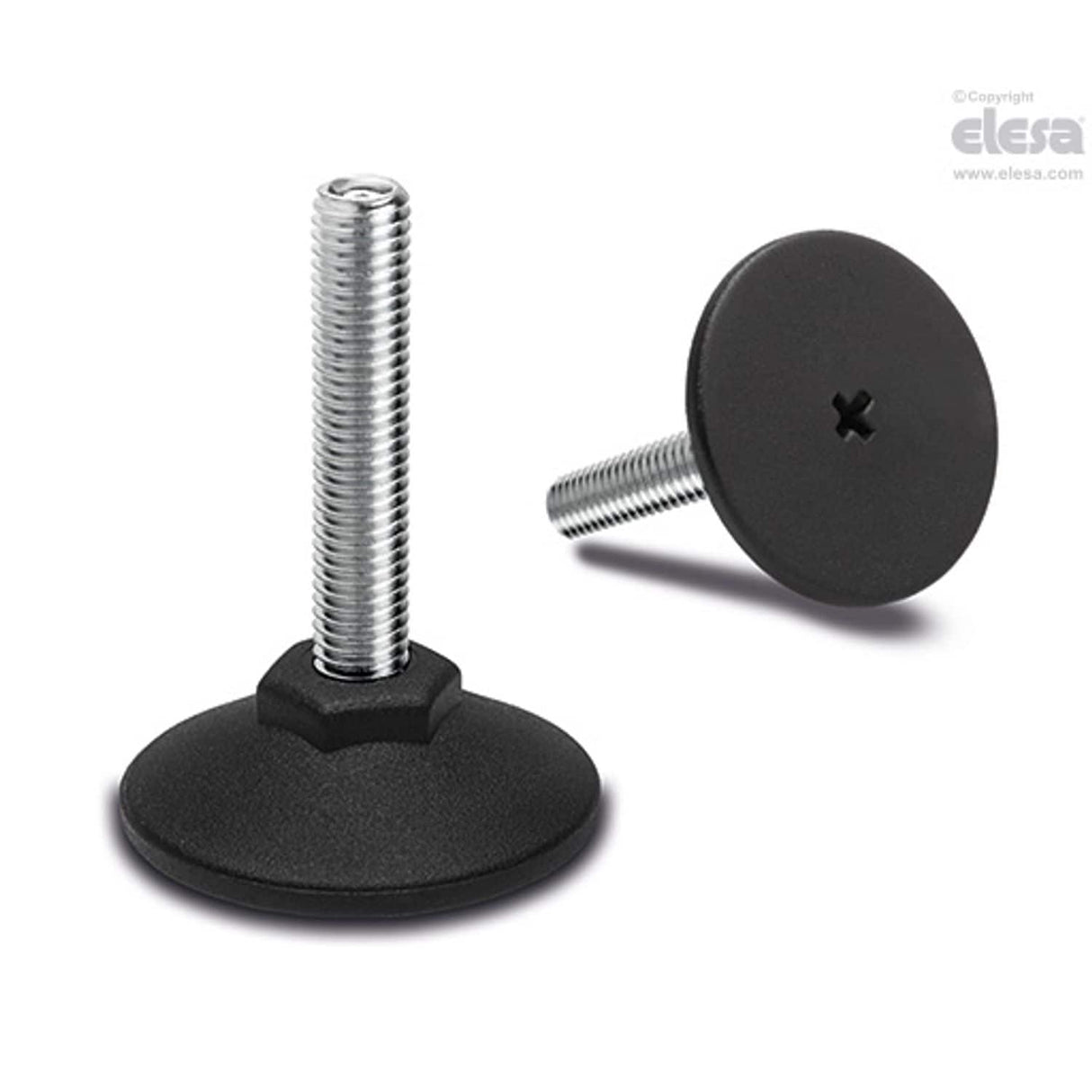

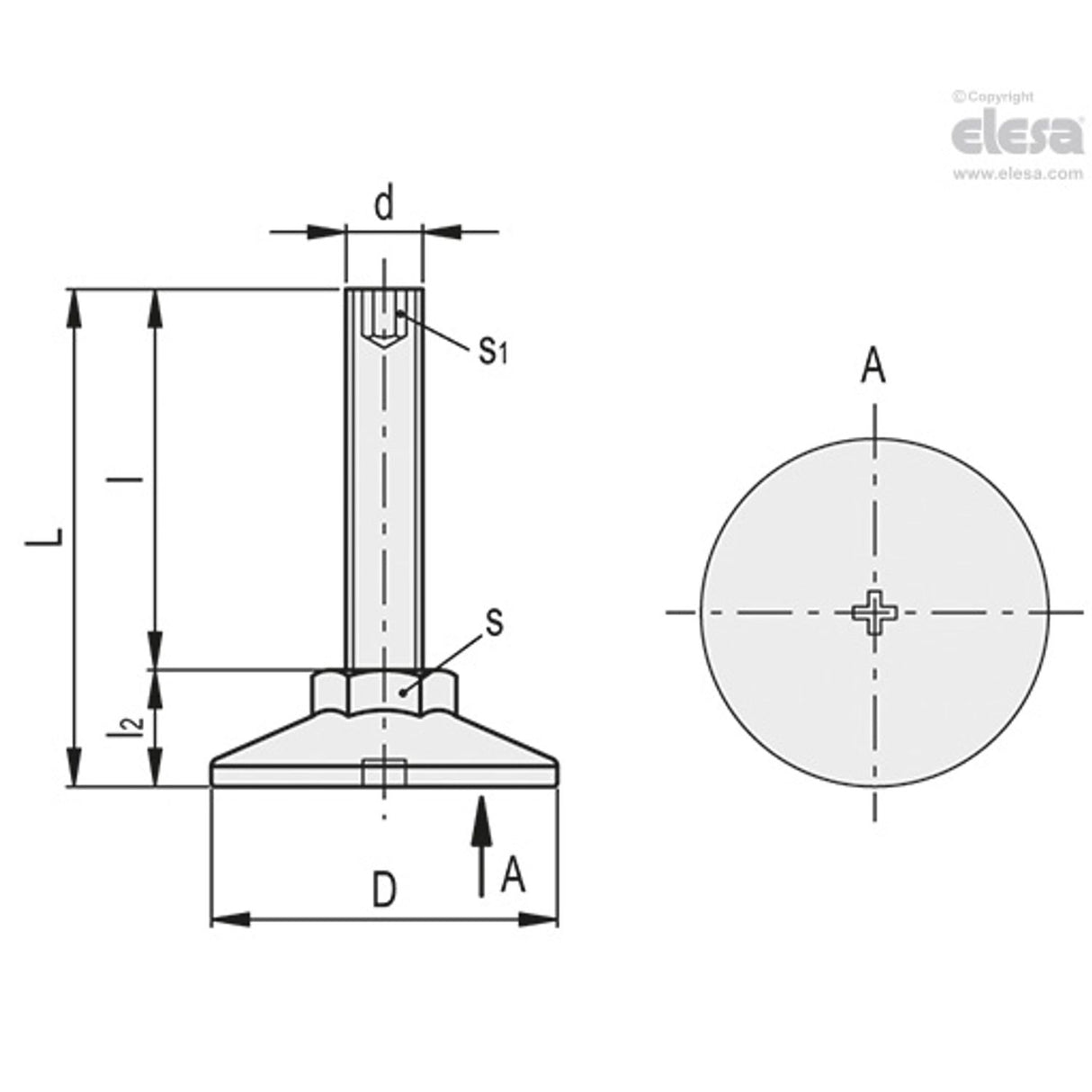

LX-HS Adjustable feet, Technopolymer base, steel stem with hexagon socket at the upper end For product drawing and dimensions refer to pdf Item data sheet.
| d | M10 |
| L | 114.5 |
| D | 40 |
| s | 17 |
| MFR Part No. | LX.40-SW17-M10x100-HS |
| l2 | 13.5 |
| s1 | 5 |
| Weight | 62g |
| Diameter | 40mm |
| l | 101 |
| Max. Static Load | 3000N |
