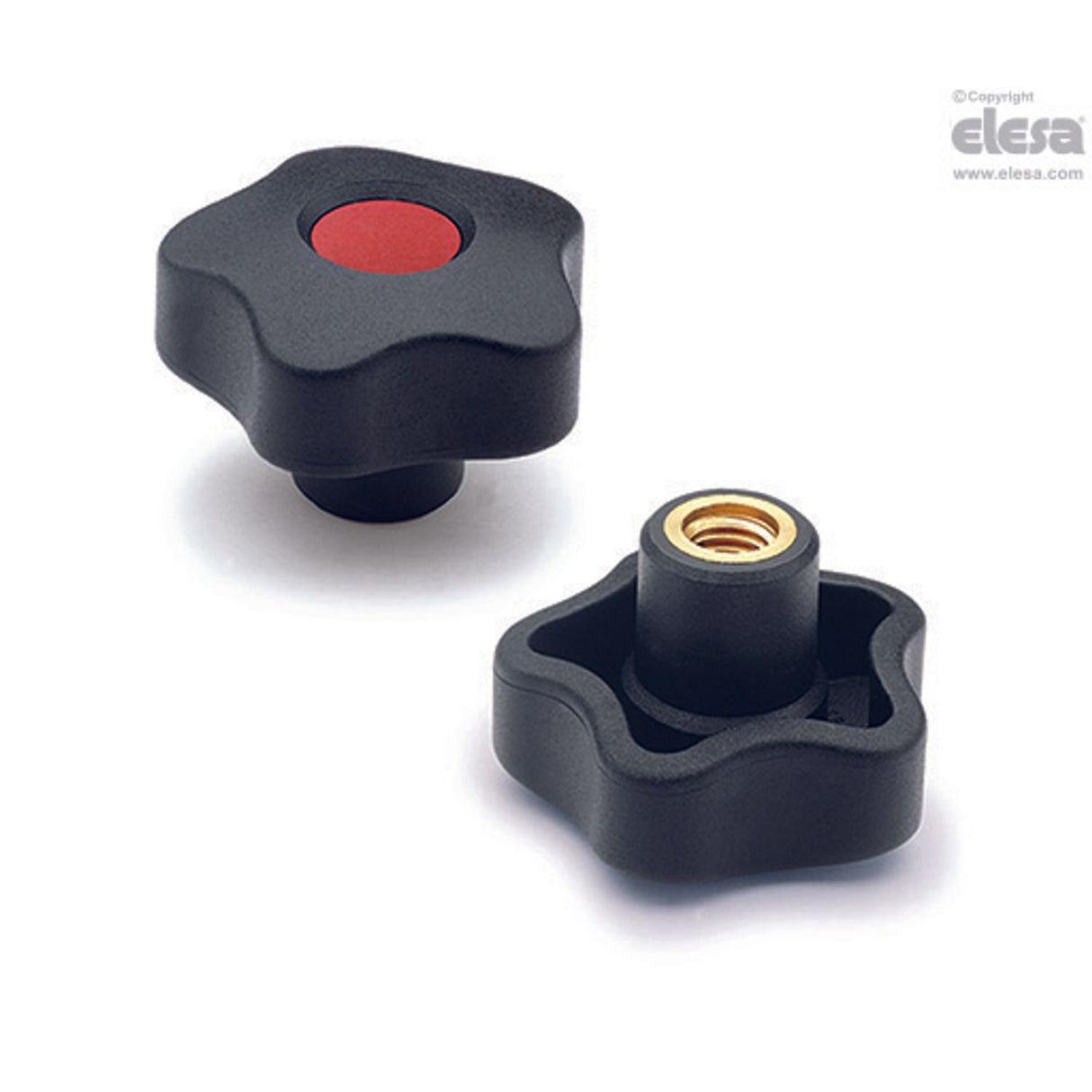

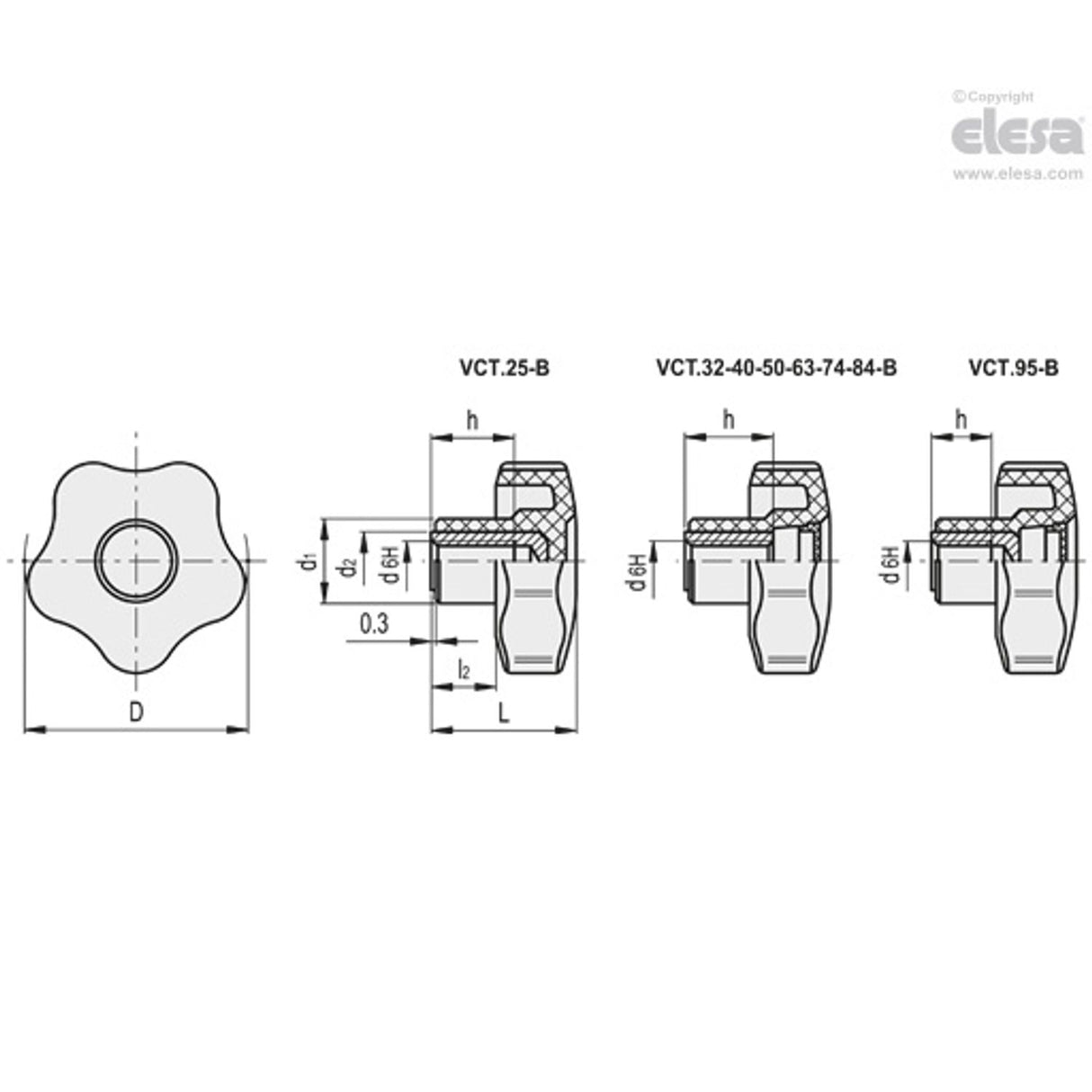

VCT. Lobe knobs, Technopolymer, Brass boss, threaded hole, with cap For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 32mm |
| d(6H) | M8 |
| Weight | 12g |
| d1 | 15 |
| h | 12 |
| C# | 10Nm |
| Colour | C17 - RAL 6017 |
| D | 32 |
| l2 | 10 |
| L | 23 |
| MFR Part No. | VCT.32 B-M8-C17 |
