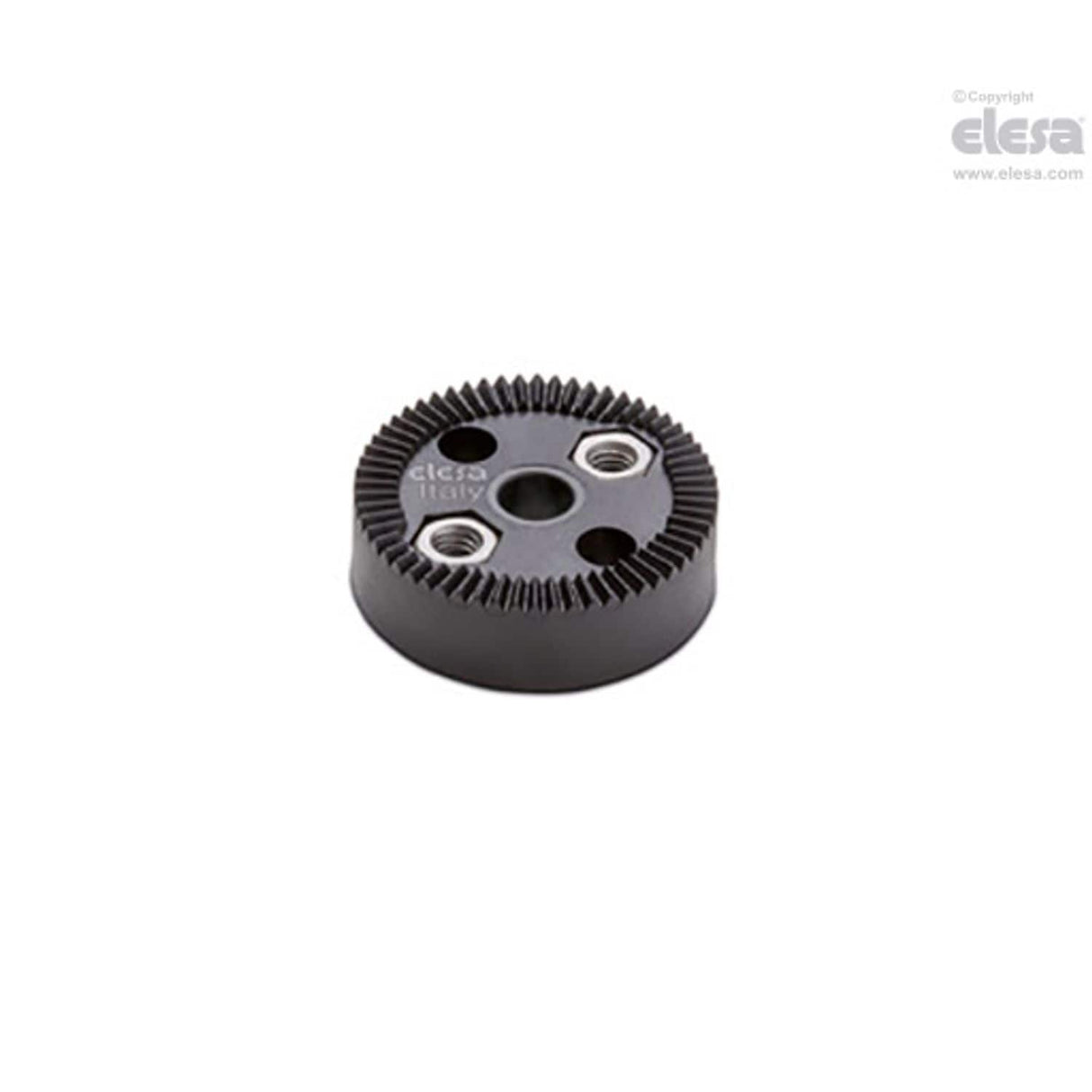

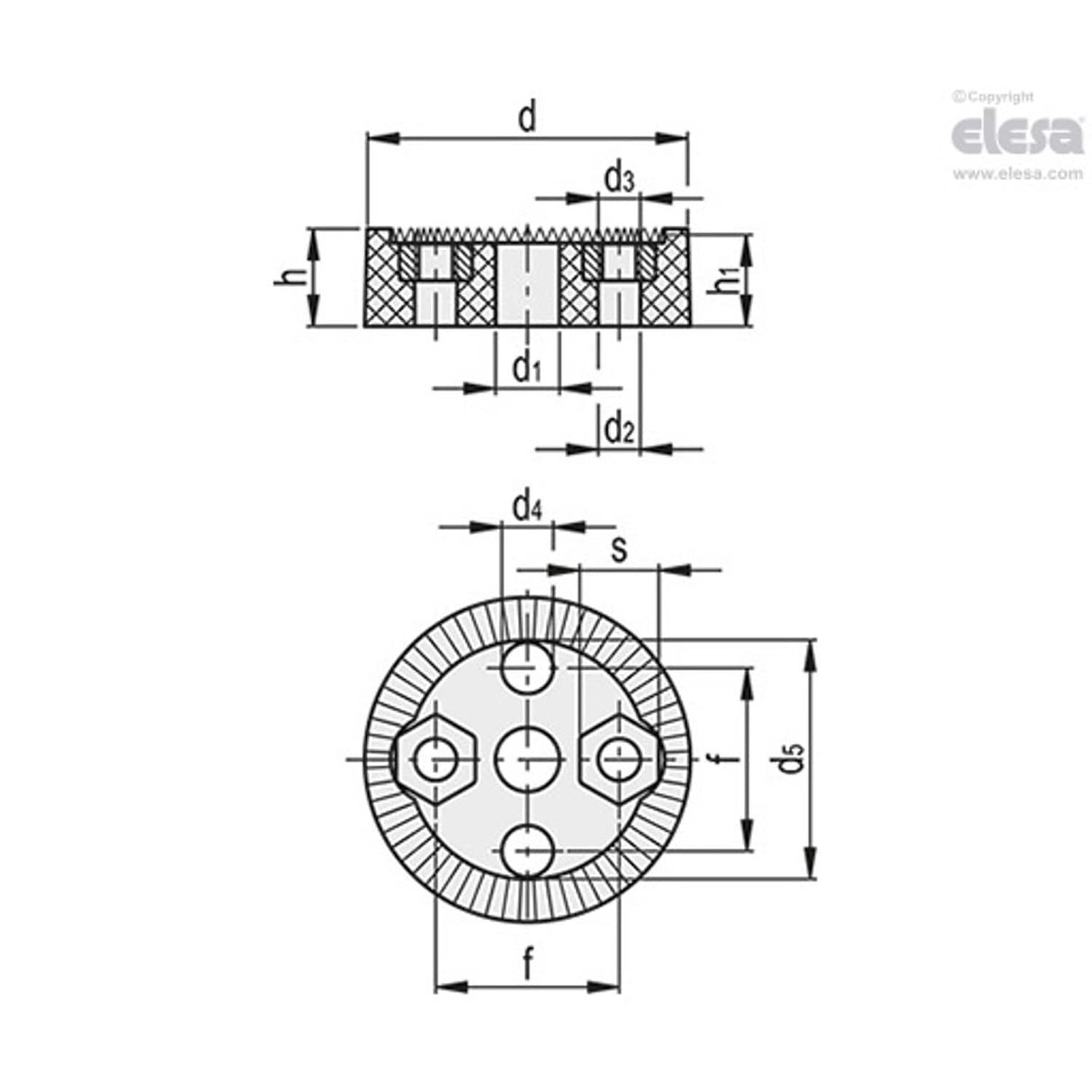

RDB Toothed clamping elements, SUPER-technopolymer, Back mounting, pass-through holes, stainless steel hexagonal nuts For product drawing and dimensions refer to pdf Item data sheet.
| d | 32 |
| h3 | 18 |
| h | 9.5 |
| d3 | M4 |
| d2 | 4 |
| d4 | 5 |
| C# | 80Nm |
| h1 | 9 |
| d5 | 23.5 |
| MFR Part No. | RDB.32-60-B |
| f | 18 |
| w min | 1.2 |
| d1 | 6.3 |
| Weight | 17g |
| s | 7 |
