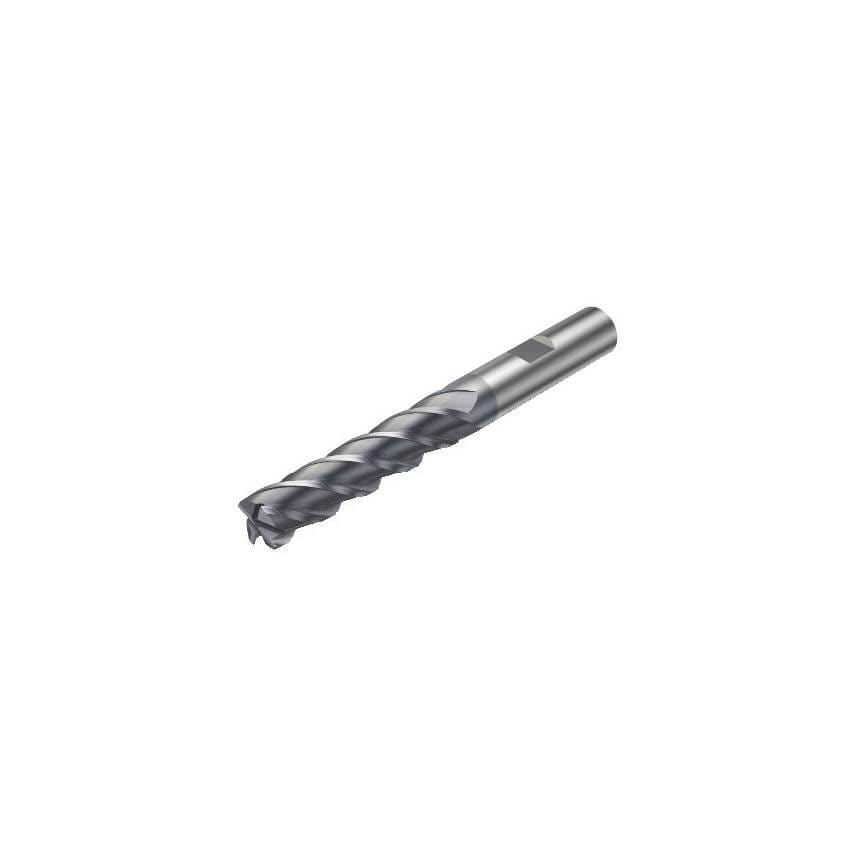

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | AlTiN |
| Finish/Coating | AlTiN |
| Maximum Depth of Cut | 100mm |
| Functional Length | 178mm |
| Shank Type | Weldon |
| Unit Measured | Metric |
| Maximum Cutting Depth | 100mm |
| Cutting Diameter | 25mm |
| MFR Part No. | 7323220504343 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 1.07kg |
| Standards Met | DIN6535 |
| Connection Diameter | 25mm |
| Product Type | Solid Carbide Endmill |
| Maximum Ramping Angle | 4\u00b0 |
| Grade | 1740 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Center Cutting Capability | Yes |
| Usable Length | 100mm |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 15.2 |
