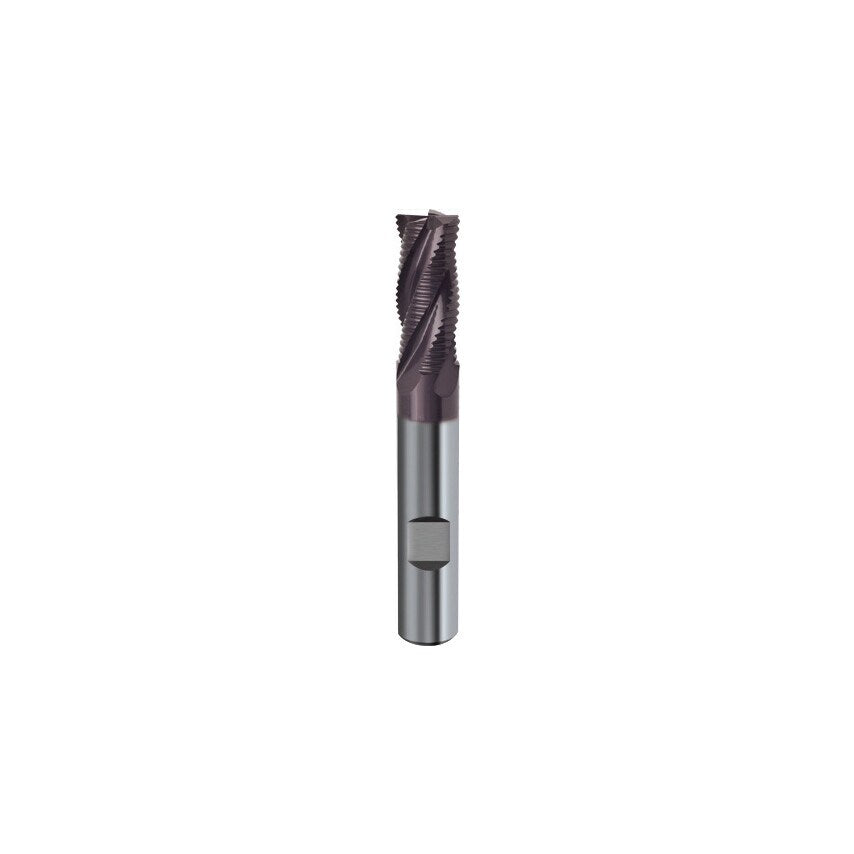

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| Flute Length | 26.0mm |
| Helix Angle | 30\u00b0 |
| Standards Met | DIN 6527L |
| Series | 5504 |
| Shank Type | Weldon Flat |
| Cutter Style | Square End |
| Cutter Diameter | 14.0mm |
| Finish/Coating | Fire |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Overall Length | 83.0mm |
| MFR Part No. | 05504 014.000 |
| Shank Diameter | 14.0mm |
| Number of Flutes | 4 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Milling Cutter Type | Slot Drill |
| Length Type | Regular |
| Material | Carbide |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Milling Application | Slotting |
| Product Type | Carbide Roughing End Mill |
| End Mill Type | Slot Drill |
