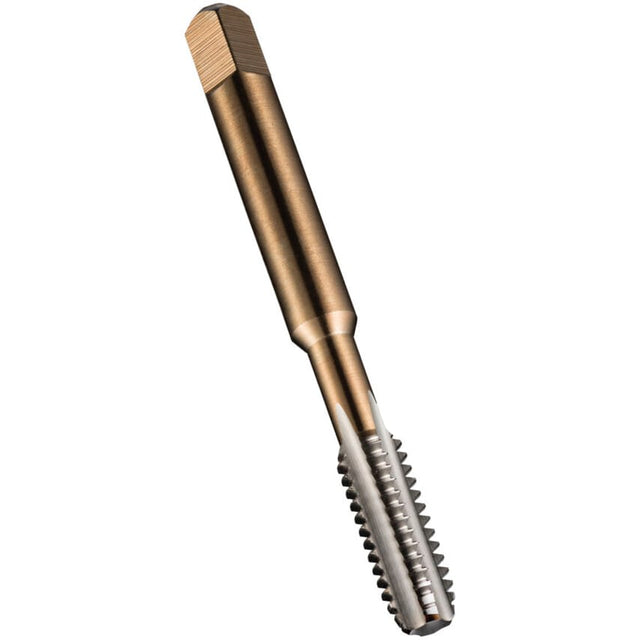

Series E513 HSS Straight Flute No.6 Tap Set
Features and Benefits
Metric Fine
HSS
Bright finish
Straight flute for through or blind holes
1.5xD
Manufactured to ISO 529
Sizes M10 to M25
Contents
Set Includes Taper, Second and Plug Taps
Taper - 7-10 pitch chamfer length
Second - 3-5 pitch chamfer length
Bottoming - 1-2 pitch chamfer length
Typical Applications
Hand or machine taps for use on a wide variety of materials
| Thread Length | 18mm |
| Number of Pieces | 3 |
| Overall Length | 80mm |
| MFR Part No. | E513M10X1.0NO6 |
| Model Number | E513 |
| ISO Category | K | N | P |
| Shank Diameter | 10mm |
| Threading Tap Type | Hand Tap |
| Square Width | 8mm |
| Thread Standard | Metric Fine |
| Thread Size | M10 x 1 |
| Tap Type | Straight Flute |
| Chamfer | Plug | Second | Taper |
| Finish/Coating | Bright |
| Series | E513 |
| Material | HSS |
