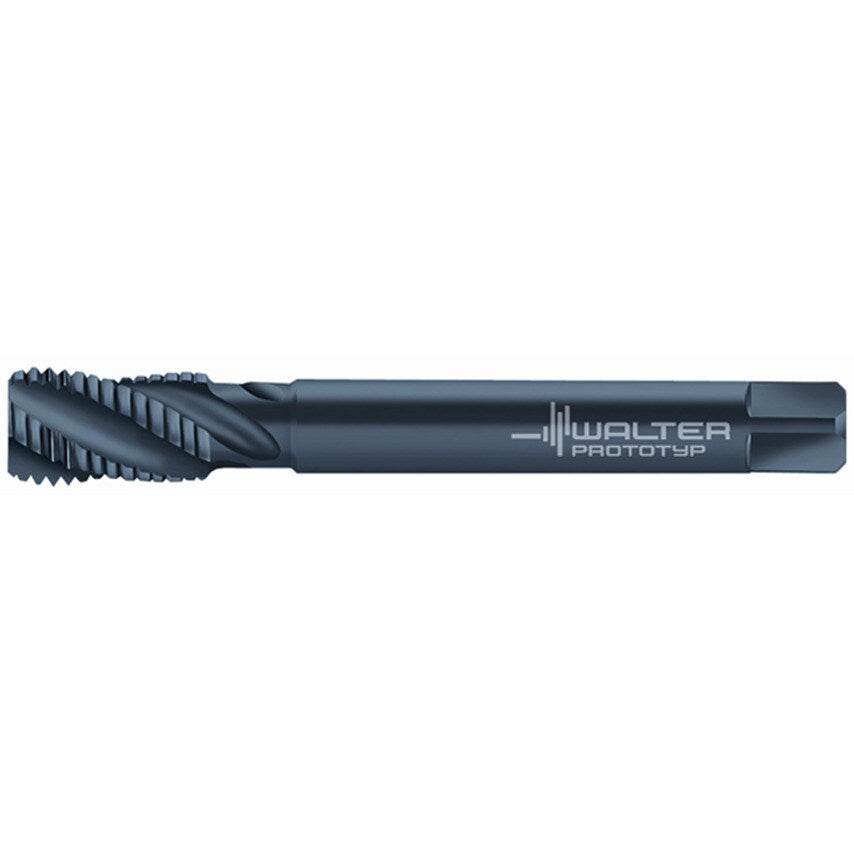

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole VAP G 1/2-14 P=14
| Usable Length | 80mm |
| Tool Designation | M24563-G1/2 |
| Functional Length | 125mm |
| Threads Per Inch | 14 |
| Thread Pitch | 14 |
| Driving Square Length | 15mm |
| Thread Size | G 1/2-14 |
| Connection Diameter | 16mm |
| Clamping Width | 12mm |
| MFR Part No. | 6150047 |
| Material | HSSE |
| Number of Grooves | 4 |
| Finish/Coating | VAP |
| Cutting Edge Length | 18mm |
