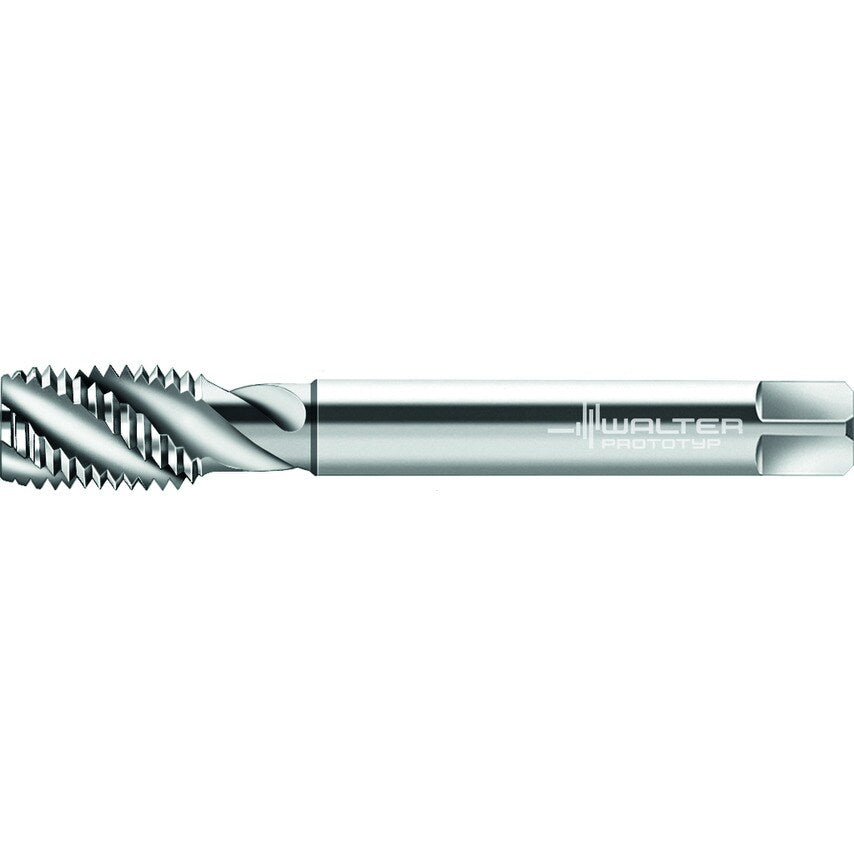

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN 2184-1 right hand flute 45 Suitable for blind hole UNC 7/16-14 P=14
| Driving Square Length | 9mm |
| Series | Paradur\u00ae X\u00b7pert P |
| ISO Designation | P22569-UNC7/16 |
| Number of Grooves | 3 |
| Usable Length | 76mm |
| Finish/Coating | Uncoated |
| Cutting Edge Length | 15mm |
| Material | HSSE |
| Clamping Width | 6.2mm |
| Tool Designation | P22569-UNC7/16 |
| Thread Standard | UNC |
| Thread Size | 7/16in |
| Tap Type | Spiral Flute |
| MFR Part No. | 6244714 |
| Functional Length | 100mm |
| Connection Diameter | 8mm |
| ISO Category | O |
| Teeth per Inch | 14 |
| Dimensions Standard | DIN 2184-1 |
