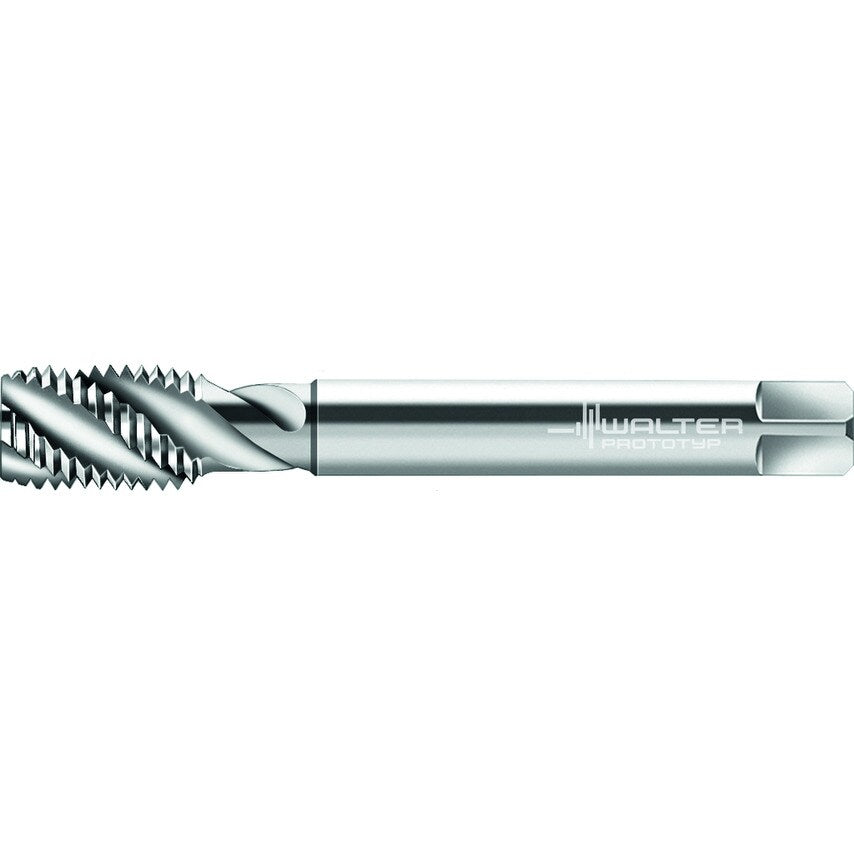

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD BSW/MEDIUM DIN 2184-1 right hand flute 45 Suitable for blind hole BSW 3/4-10 P=10
| Thread Standard | BSW |
| Functional Length | 125mm |
| MFR Part No. | 6244817 |
| Tool Designation | P28569-BSW3/4 |
| Cutting Edge Length | 25mm |
| Number of Grooves | 4 |
| Thread Size | BSW 3/4-10 |
| Clamping Width | 11mm |
| Driving Square Length | 14mm |
| Material | HSSE |
| Usable Length | 81mm |
| Connection Diameter | 14mm |
| Threads Per Inch | 10 |
