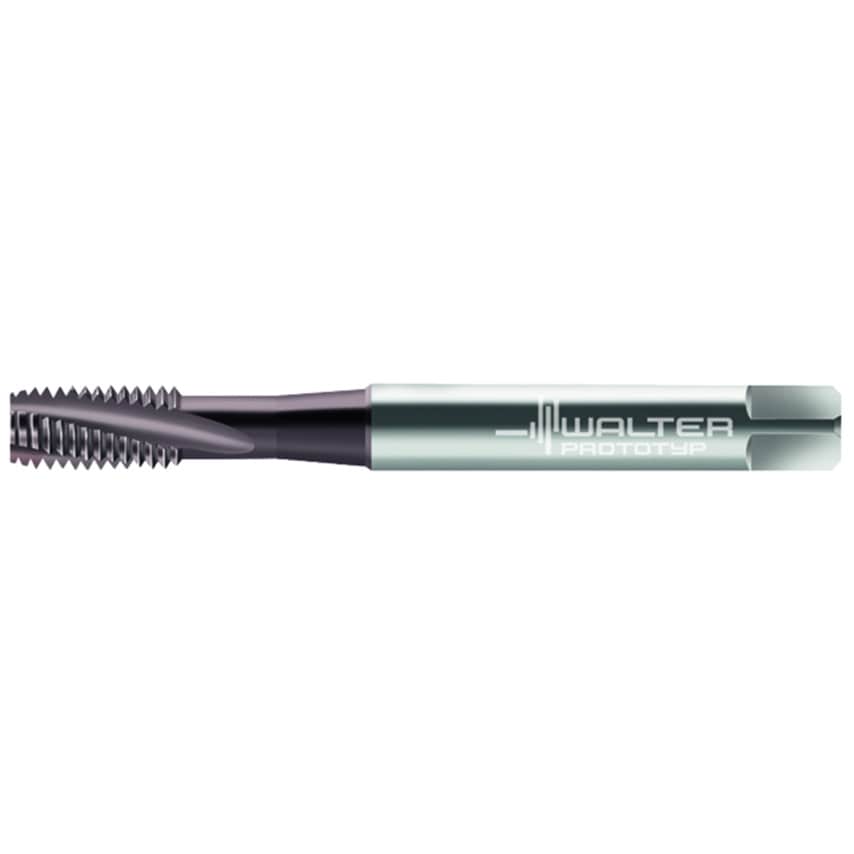

HSS-E machine taps Short Chip HT C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 371 right hand flute 15 Suitable for blind hole THL M 5 P=0.0315in
| Usable Length | 25mm |
| Clamping Width | 4.9mm |
| Connection Diameter | 6mm |
| Thread Pitch | 0.8mm |
| Driving Square Length | 8mm |
| Cutting Edge Length | 8mm |
| Number of Grooves | 3 |
| Tool Designation | 20410T2-M5 |
| MFR Part No. | 6692231 |
| Functional Length | 70mm |
| Thread Size | M 5 |
