£4.29
Loading...

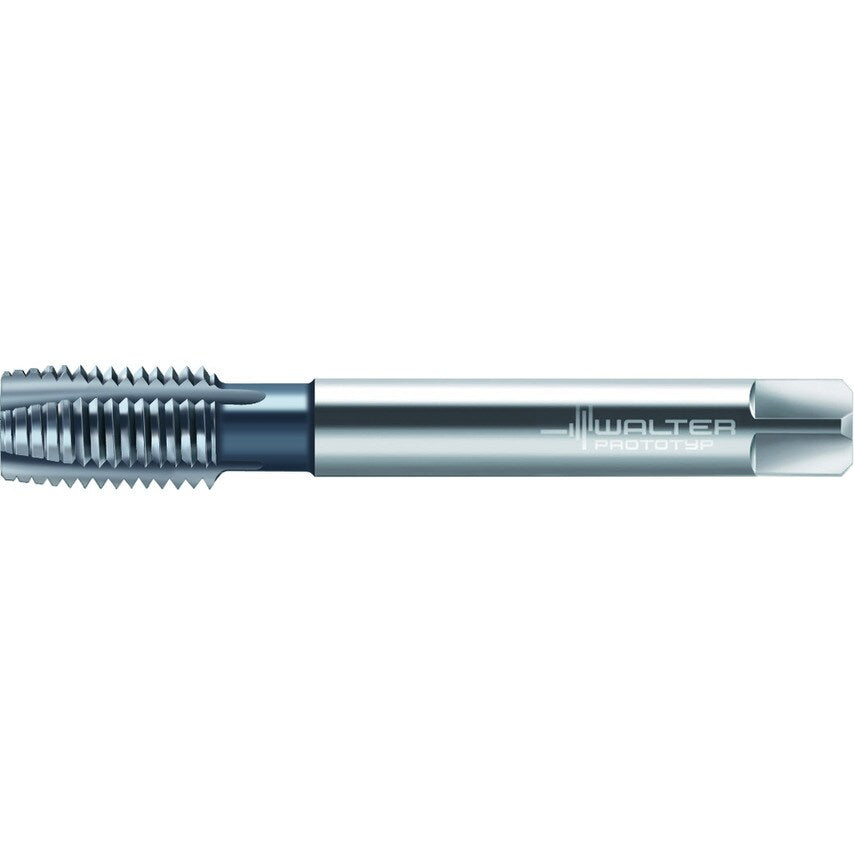

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD M/6HX DIN 376 Suitable for through hole TICN M 12 P=0.0689in
| Shank Diameter | 9mm |
| MFR Part No. | 6786979 |
| Thread Pitch | 1.75mm |
| Clamping Width | 7mm |
| Number of Grooves | 4 |
| Cutting Edge Length | 23mm |
| Thread Size | M 12 |
| Tool Designation | 2026616-M12 |
| Driving Square Length | 10mm |
| Overall Length | 110mm |
| Usable Length | 83mm |
