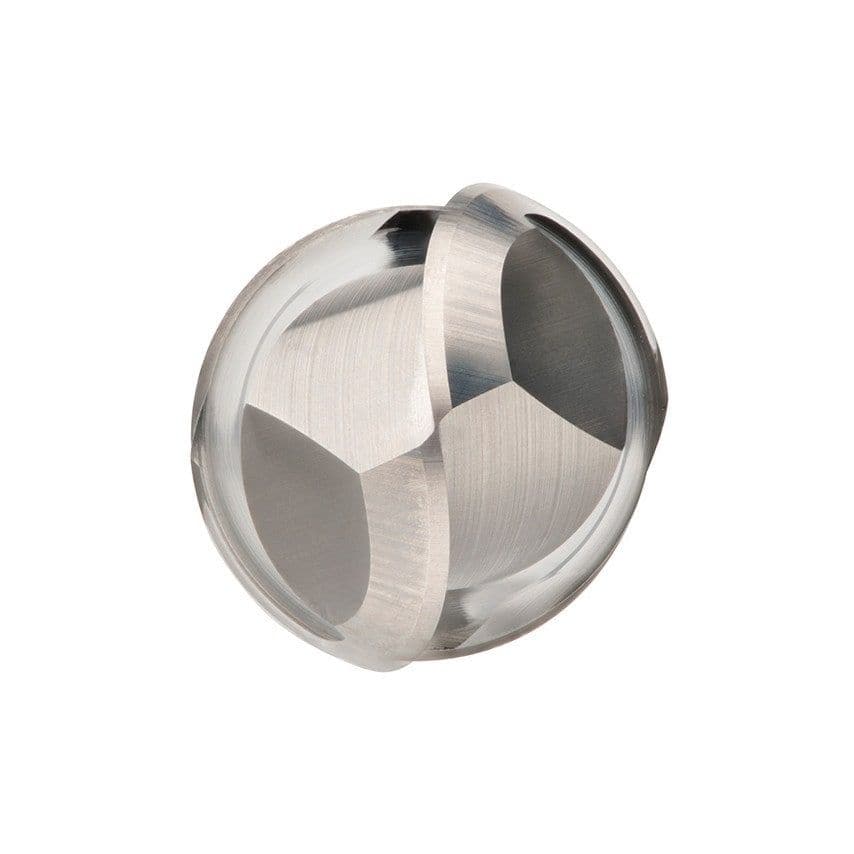

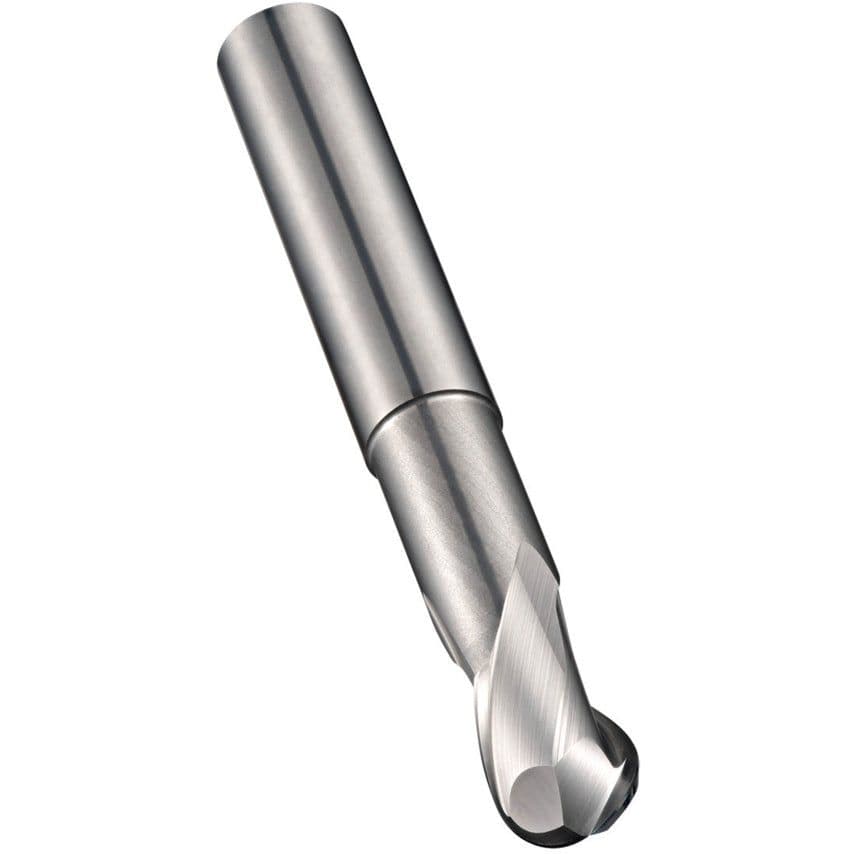

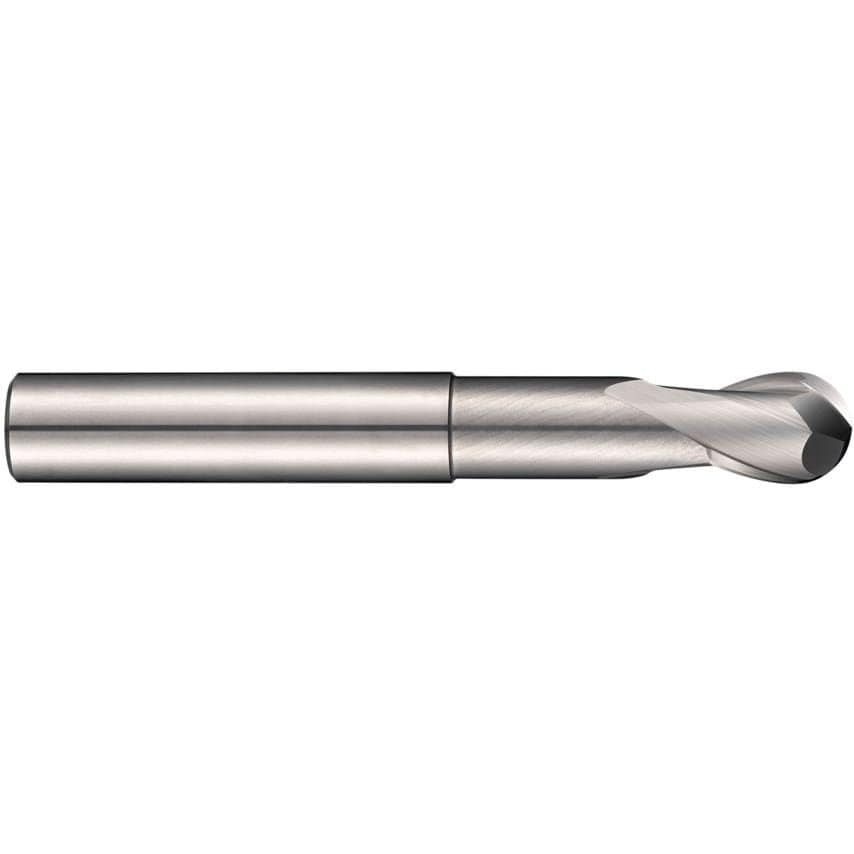

Extra short series ball-nose end mill with 2 flutes
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Flute Type | Helical |
| Coolant Delivery | External |
| Cutter Diameter | 5mm |
| ISO Category | N |
| Standards Met | Dormer |
| Helix Angle | 30\u00b0 |
| Material | HM |
| Flute Length | 7mm |
| Number of Flutes | 2 |
| Standards | DORMER |
| Series | S629 |
| Finish/Coating | Bright |
| Corner Radius | 2.5mm |
| Shank Diameter | 6mm |
| Application | Non-ferrous Metals |
| Cutter Style | Ball Nose |
| Shank | Cylindrical shank DIN 6535 HA |
| Unit of Measurement | Metric |
| Cutter Diameter Tolerance | H9 |
| Finish | Bright |
| End Mill Type | Slot Drill |
| MFR Part No. | S6295.0 |
| Plunge Type | Centre Cutting |
| Length of Cut | Extra short |
| Overall Length | 57mm |
| Shank Type | Plain Round |
| Length Type | Short |
