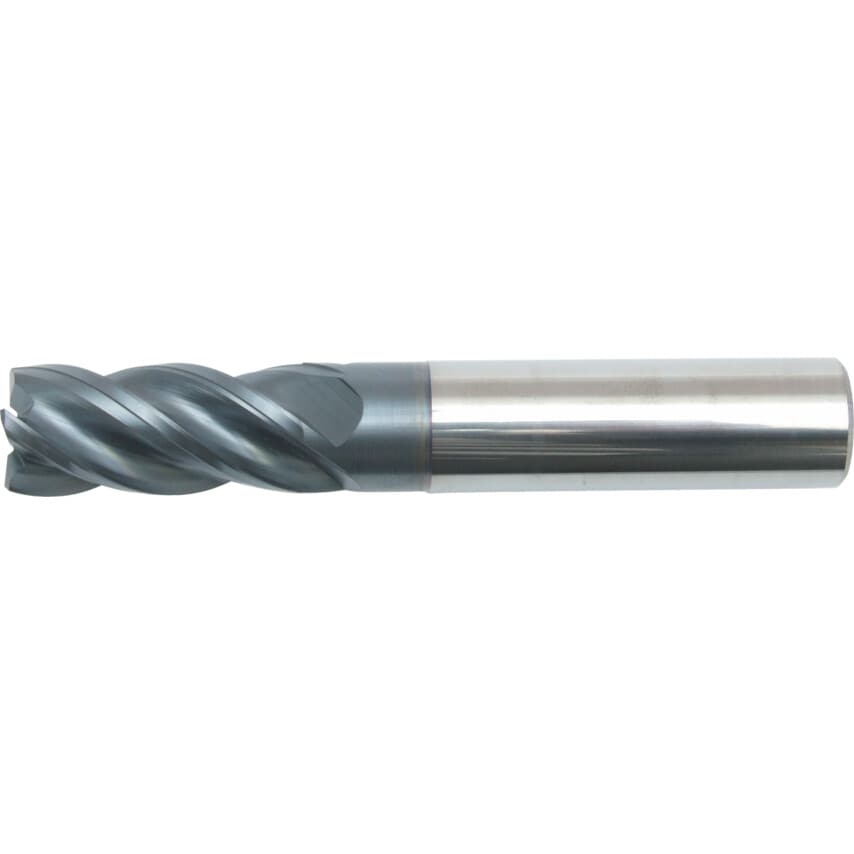

EC-E4L...CF 4 Flute CHATTERFREE, 38 Helix, Medium Length End Mills

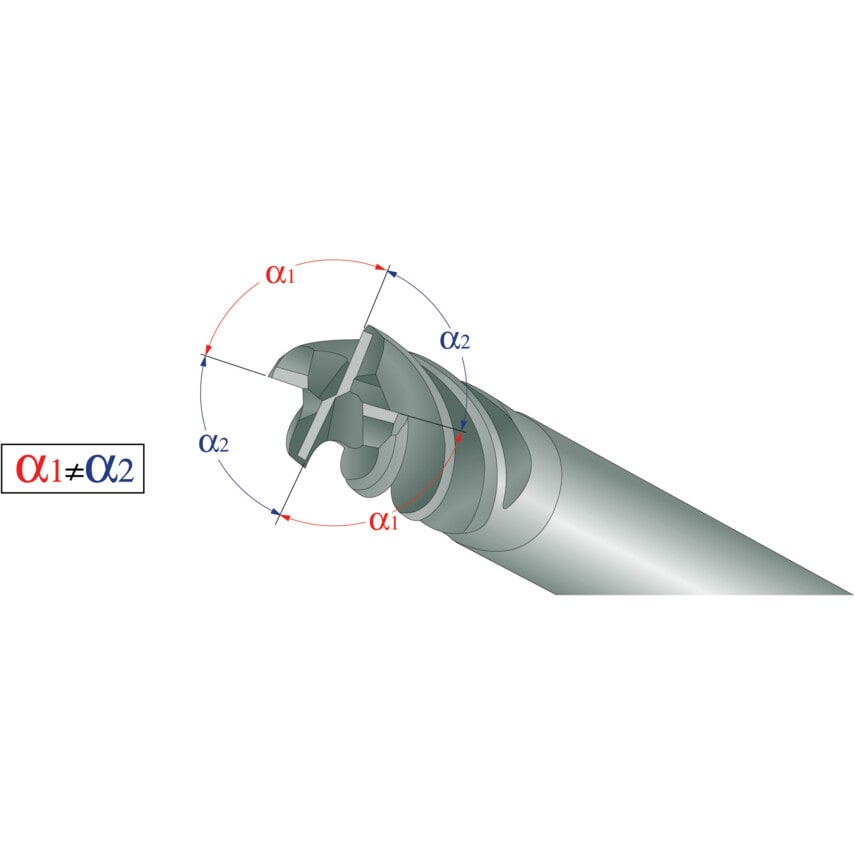

ISCAR is introducing 38 helix end mills with variable pitch for roughing and finishing operations. The new ECCF solid end mills feature excellent chatter dampening ability, due to their variable pitch. The new solid endmills are available in 6 to 20mm.
These new end mills are an excellent solution for low power machines with ISO40 or BT40 adaptations, improving their material removal rate and eliminating vibration.They can be used for up to 2XD full slot machining of alloy and stainless steel, titanium and exotic materials.
ISCARs new CHATTERFREE end mills maximise stock removal rate and reduce cycle time in most milling operations. Their unique ground geometry provides excellent surface finish and long tool life while machining at high material removal rates.
| End Mill Type | End Mill |
| Shank Diameter | 16.0mm |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | e8 |
| Coolant Delivery | External |
| Flute Length | 34.0mm |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Shank Type | Plain Round |
| Cutter Diameter | 16.0mm |
| Flute Type | Helical |
| Number of Flutes | 4 |
| Length Type | Regular |
| Overall Length | 100.0mm |
