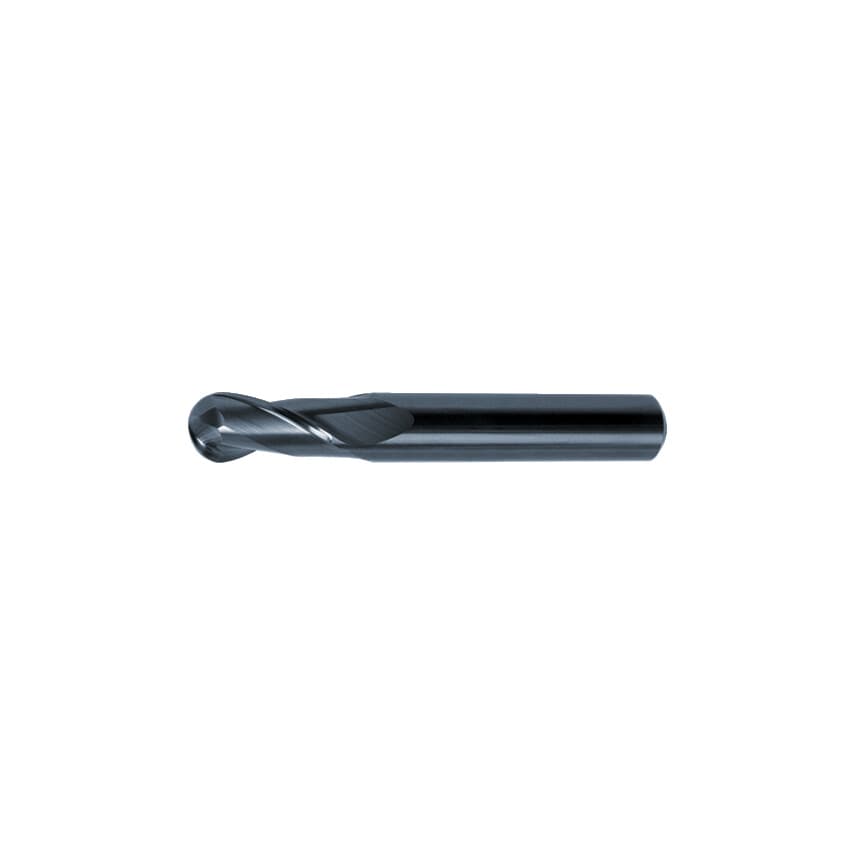

Series 3308 Carbide Ball Nosed End Mill
2 Flute
Metric
Type: N.
DIN:6527 A/B.
Shank: HA.
Helix angle:30.
Tolerence:h10.
| Material Application | Aluminium | Brass | Bronze | Copper |
| Helix Angle | 30\u00b0 |
| MFR Part No. | 03308 020.000 |
| Flute Type | Helical |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Cutter Style | Ball Nose |
| Overall Length | 104mm |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Cutter Diameter | 20mm |
| Material | Carbide |
| Flute Length | 32mm |
| Milling Cutter Type | End Mills |
| Shank Diameter | 20mm |
| ISO Category | P |
| System of Measurement | Metric |
| Standards Met | DIN 6527L |
| Ball Nose Type | Ball Nose End Mill |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | H10 |
| Shank Type | Plain Round |
| Series | 3308 |
| Number of Flutes | 2 |
