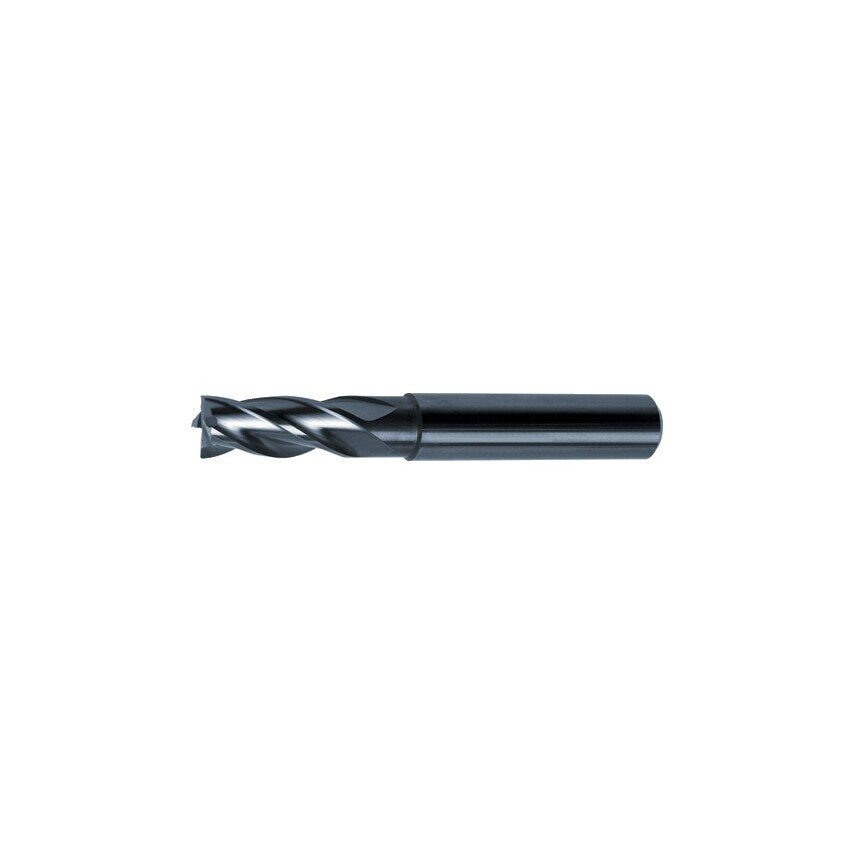

Series 3197
Carbide 4 Flute End Mills
Metric
Type: N.
DIN:6527 A/B.
Shank: HA.
Length:Long.
Helix angle:30.
Tolerence:h10.
| Shank Diameter Tolerance | H6 |
| Helix Angle | 30\u00b0 |
| Shank Diameter | 18mm |
| Overall Length | 92mm |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | H10 |
| Cutter Diameter | 18mm |
| Plunge Type | Centre Cutting |
| Finish/Coating | Bright |
| Coolant Delivery | External |
| ISO Category | P |
| MFR Part No. | 03197 018.000 |
| Cutter Style | Square End |
| Corner Radius | 0.15mm |
| Number of Flutes | 4 |
| Length Type | Long |
| Flute Length | 32mm |
| Material | Carbide |
| Shank Type | Plain Round |
| Product Type | End Mills |
| Series | 3197 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Standards Met | DIN 6527L |
